WingLogic WL250 MSHD Racing Wing Kit 60–74 in

Description

WingLogic WL250MSHD — wide-range efficiency you can actually tune

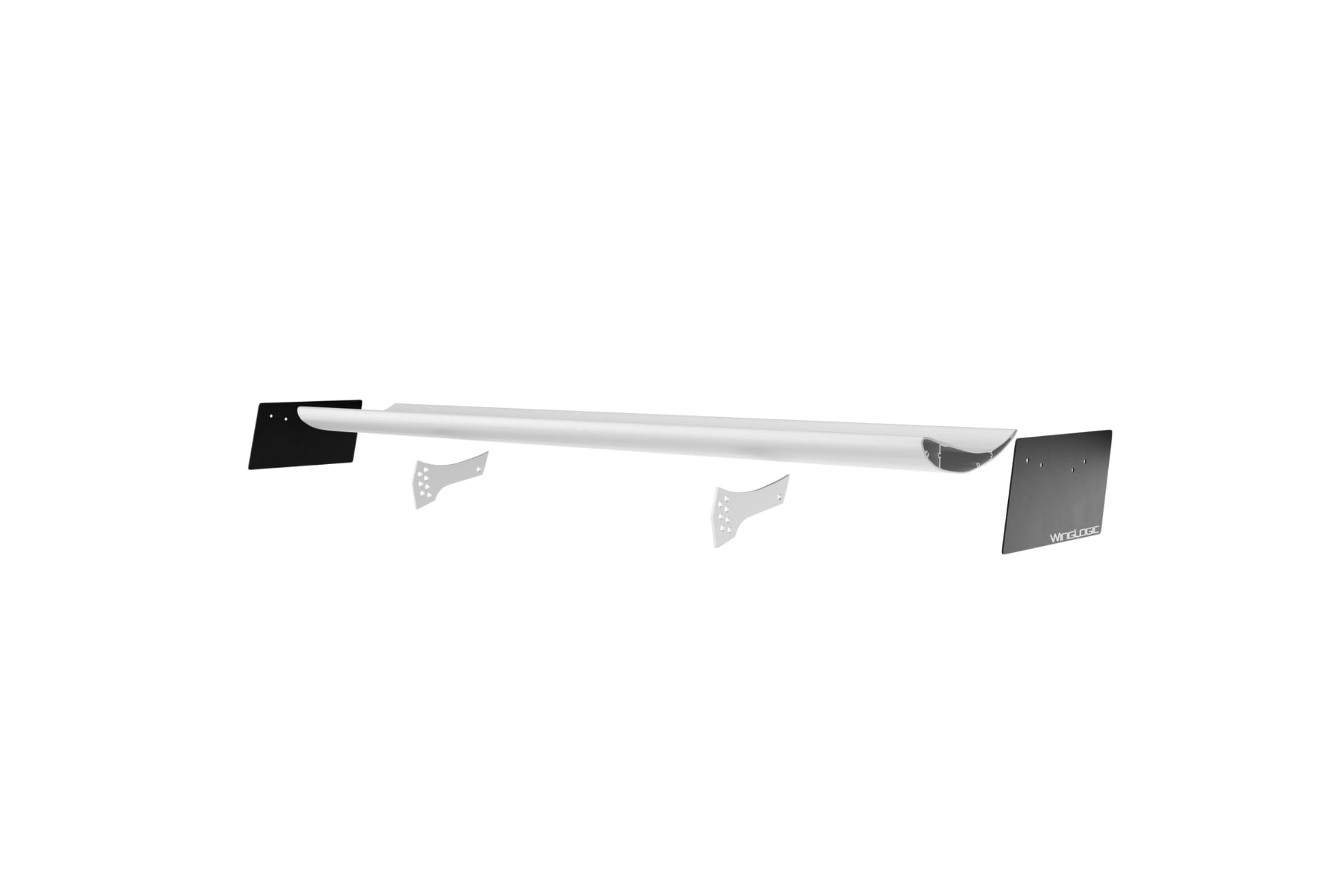

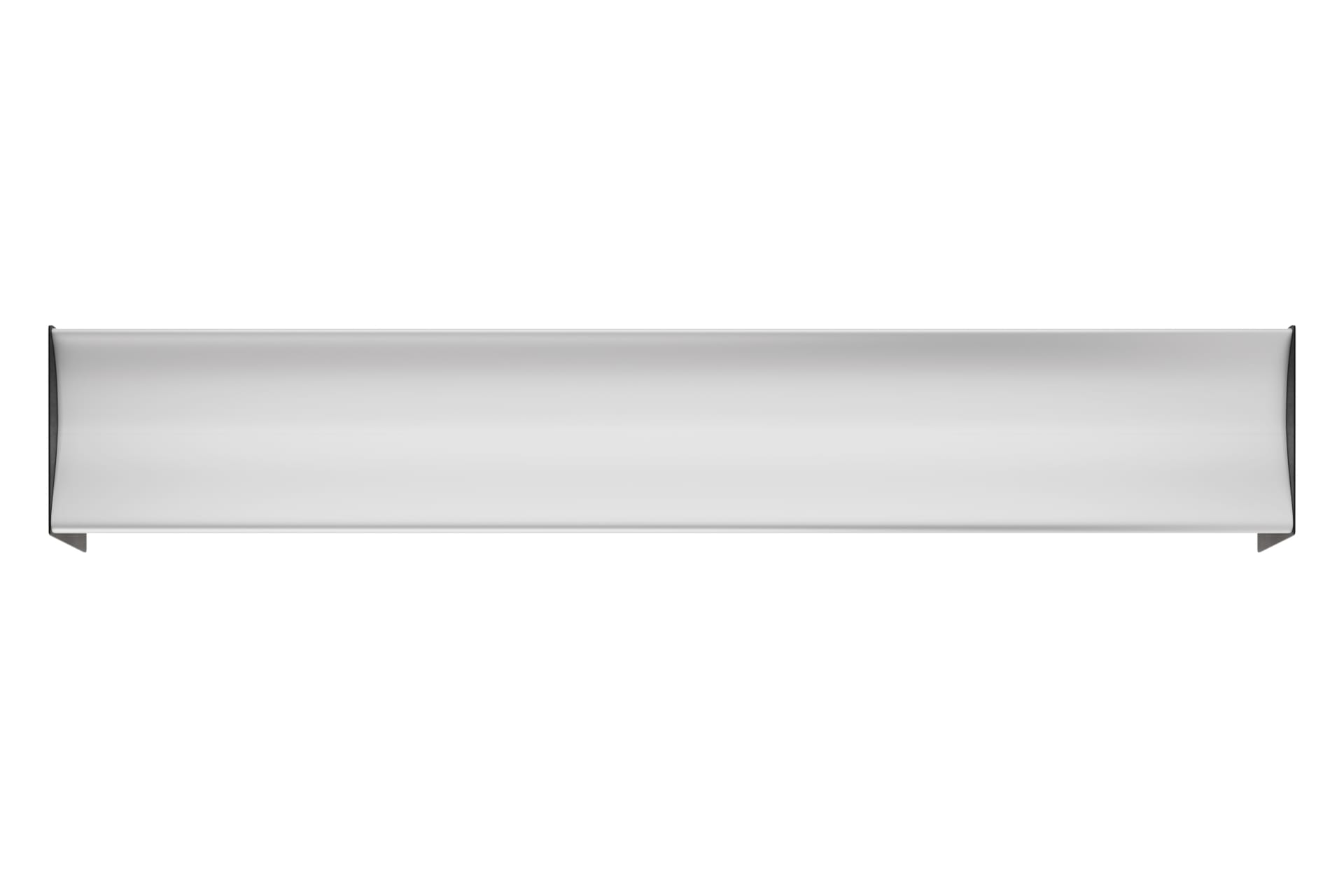

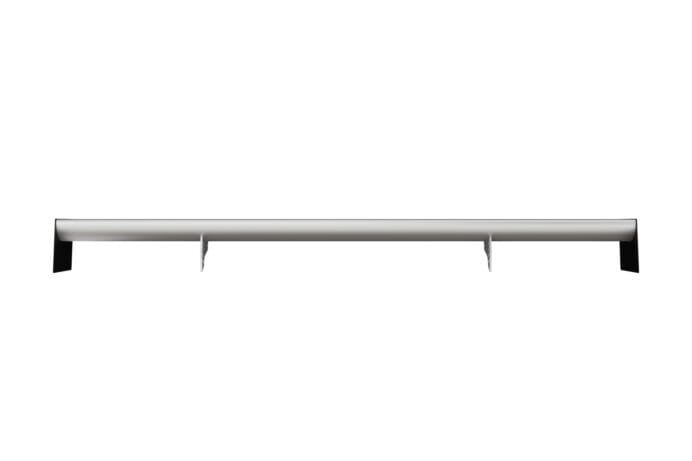

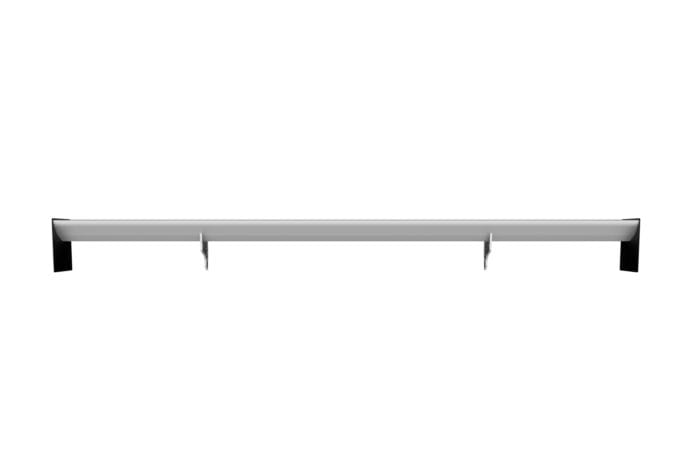

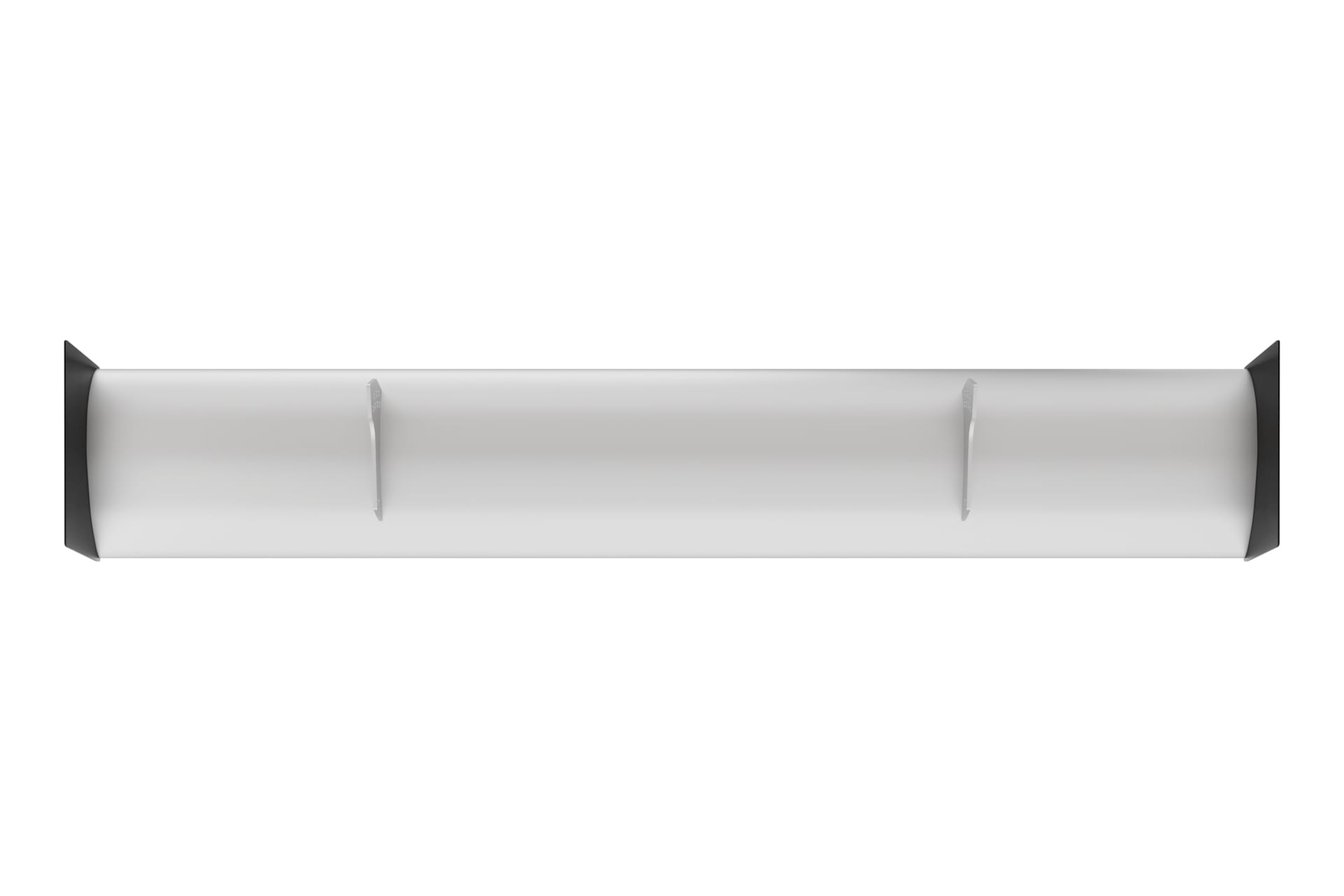

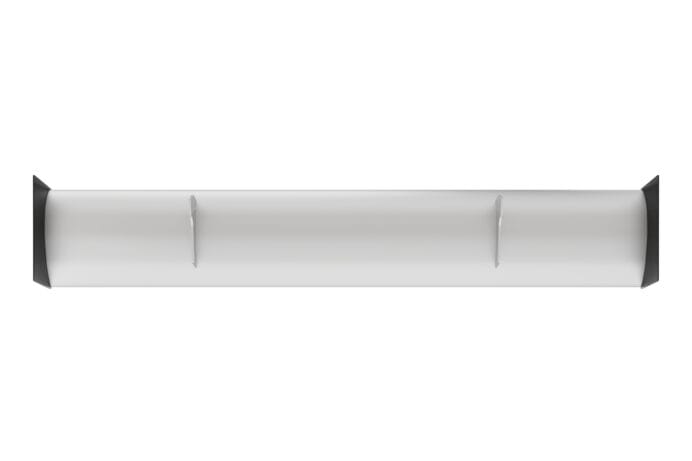

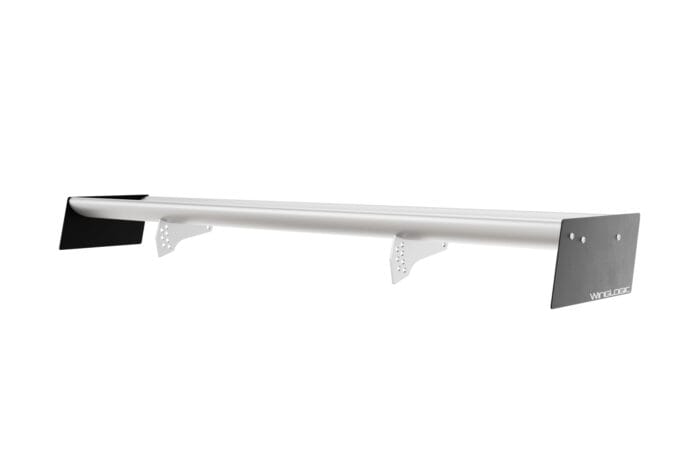

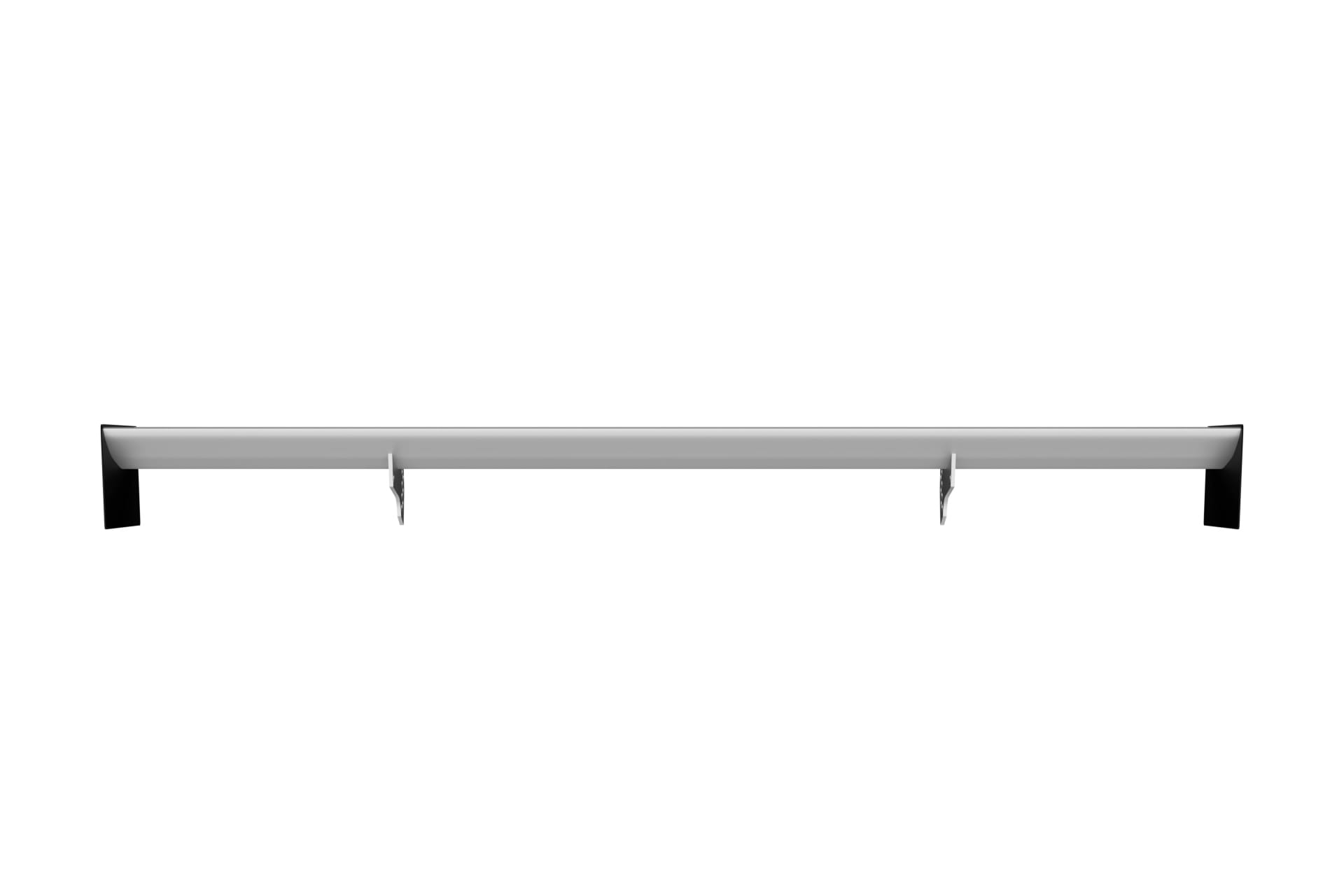

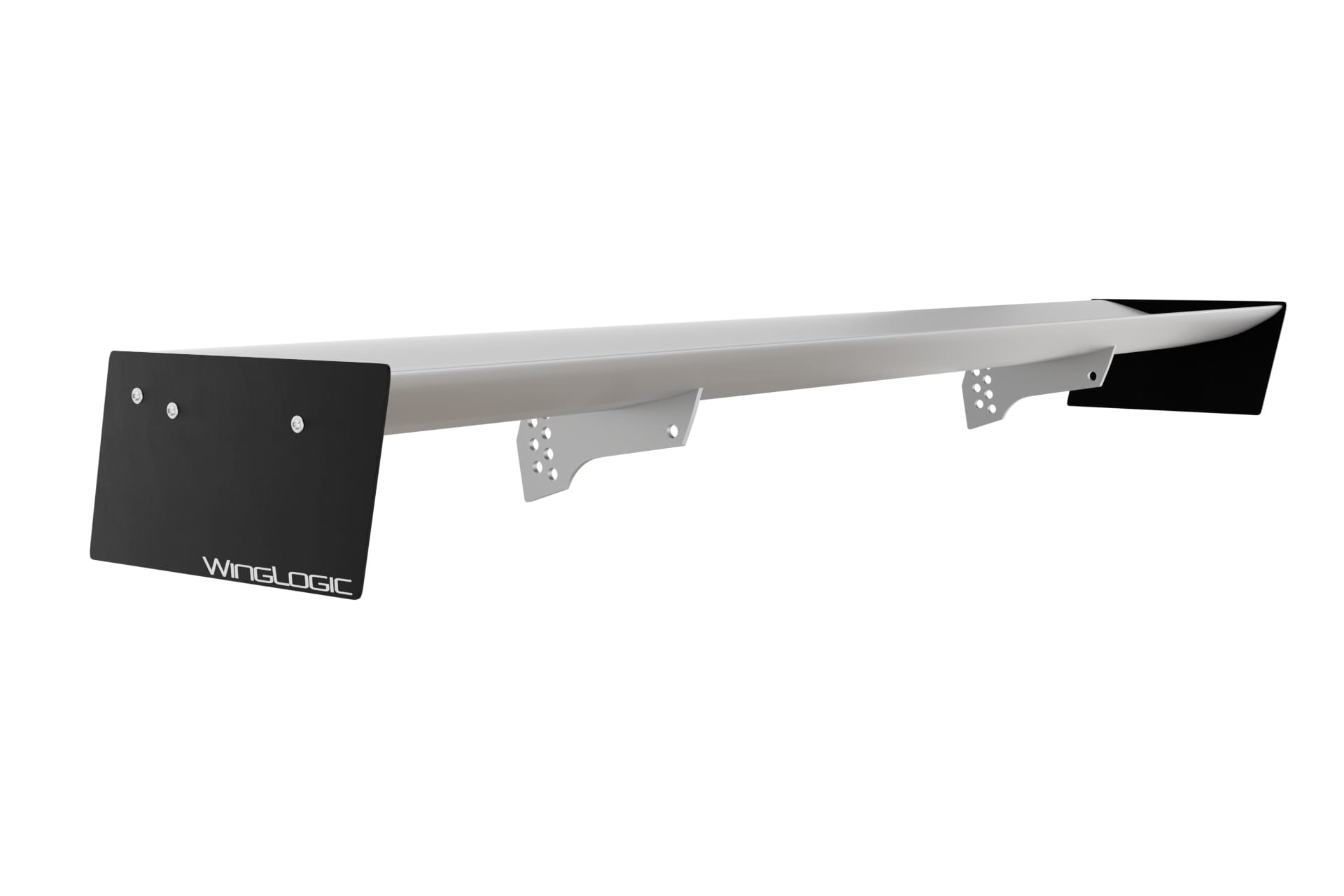

The WL250MSHD kit is built around WingLogic’s updated 250 mm-chord (WL250) airfoil concept, reworked to broaden the “sweet spot” so you can run low angles for speed and still have headroom for high-load setups when the track demands it. Each kit includes the aluminum airfoil, adjustable underside mounts, black anodized end plates, stainless hardware, and a profile template to make positioning straightforward.

What’s included

• 6061 aluminum WL250MSHD airfoil
• 6061 aluminum adjustable underside mounts
• 6063 aluminum black anodized end plates
• Stainless Allen-head hardware
• Profile paper template with hole locations

CFD-backed performance (WL250 vs. WL250MSHD)

WingLogic publishes a comparative CFD dataset for a 70-inch original WL250 versus a 70-inch WL250MSHD across 0°, 5°, and 10° angles of attack at 60, 100, and 140 mph. Highlights from the published tables include:

• More downforce at working angles: at 140 mph and 5° AOA, the WL250MSHD is approximately 579 lb versus approximately 496 lb for the original.
• Substantially more headroom at high AOA: at 140 mph and 10° AOA, the WL250MSHD is approximately 933 lb versus approximately 525 lb, with the expected drag increase.
• Lower drag in the mid-range: at 140 mph and 5° AOA, WL250MSHD drag is approximately 135 lb versus approximately 159 lb, reducing the published power requirement from approximately 59 hp to 50 hp.

For the full tables, plots, and methodology, view WingLogic’s WL250 versus WL250MSHD CFD data.

Independent testing and further reading

For an independent look at the MSHD profile, construction, weight, wind-tunnel context, and comparisons with other commonly used racing wings, read Occam’s Racer’s MSHD Wing Logic overview.

Choose your span

Pick the span that fits your car, rules, mounting location, and aero-balance goals. Longer spans generally provide more total load potential, while shorter spans can package more easily. Exact results depend on mounting height and location, the vehicle’s wake, and the rest of the aero package. If you have questions about span or mounts, contact Professional Awesome for fitment and product support.

Custom mount design

Need mounts tailored to your vehicle or use case? Custom mount design is available through our consulting services and is quoted per design. We will need vehicle measurements and a clear description of the wing’s intended use before quoting the work. Your wing can ship on its normal schedule; after you approve the custom-mount price and design, the additional engineering work begins and the finished mounts ship separately on their own timeline.

Fulfillment and shipping

Ships directly from WingLogic after 1–2 business days of fulfillment. Flat-rate shipping per wing is $119 by Ground within the United States, $159 to Canada, $279 to Australia, $259 to the United Kingdom, $329 to European Union member countries, and $289 to New Zealand. Online ordering is available only to those destinations, and expedited service is not available. For U.S. orders, estimated delivery is 2–8 business days after fulfillment.

Notes

• Run the least angle of attack that achieves your balance and load targets—extra angle can add drag quickly.
• Mounting location and vehicle wake matter; real-world results will vary.
