Mazda · Miata · 1989-1997 NA
What this install demonstrates
For this setup, custom frame-rail drop brackets were fabricated from 3/8-inch aluminum. These brackets provided a solid mounting location below the frame rails for the splitter support system.
Products used
Customer spotlight
Support the builder who shared this install
If their work gave you an idea, follow their build and help us thank them for contributing it to the community.
Follow the build
Customer notes

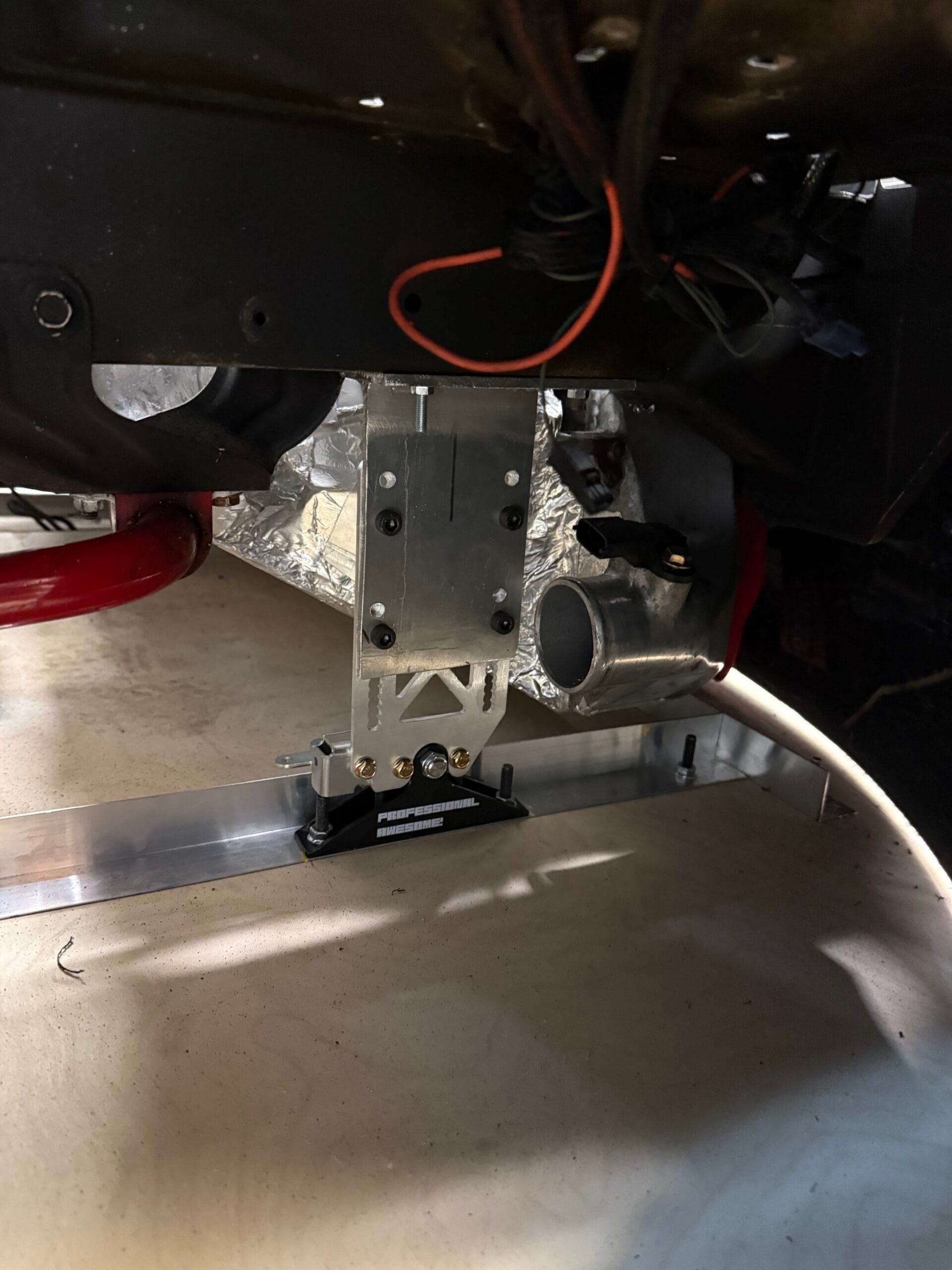

For this setup, custom frame-rail drop brackets were fabricated from 3/8-inch aluminum. These brackets provided a solid mounting location below the frame rails for the splitter support system.

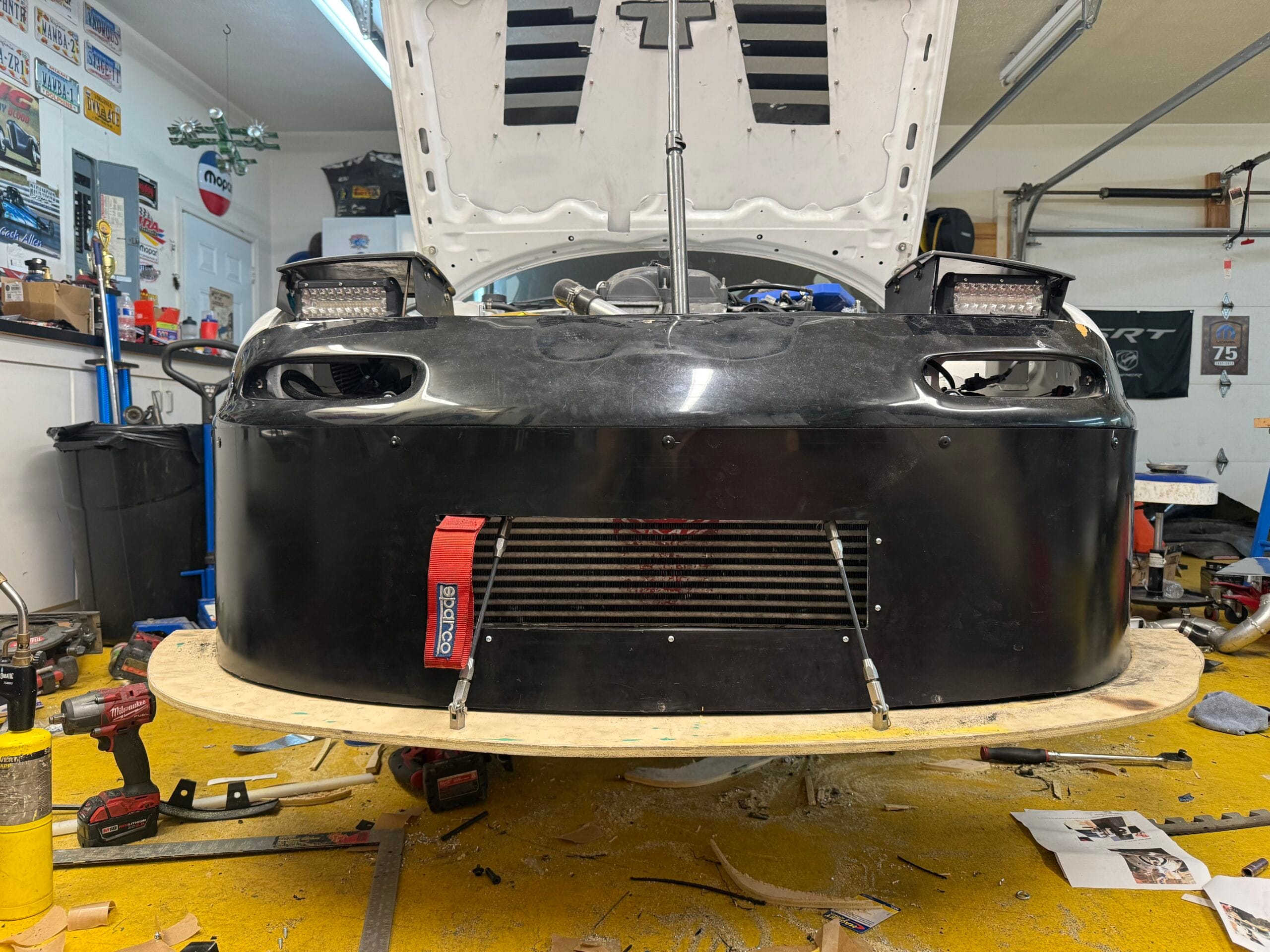

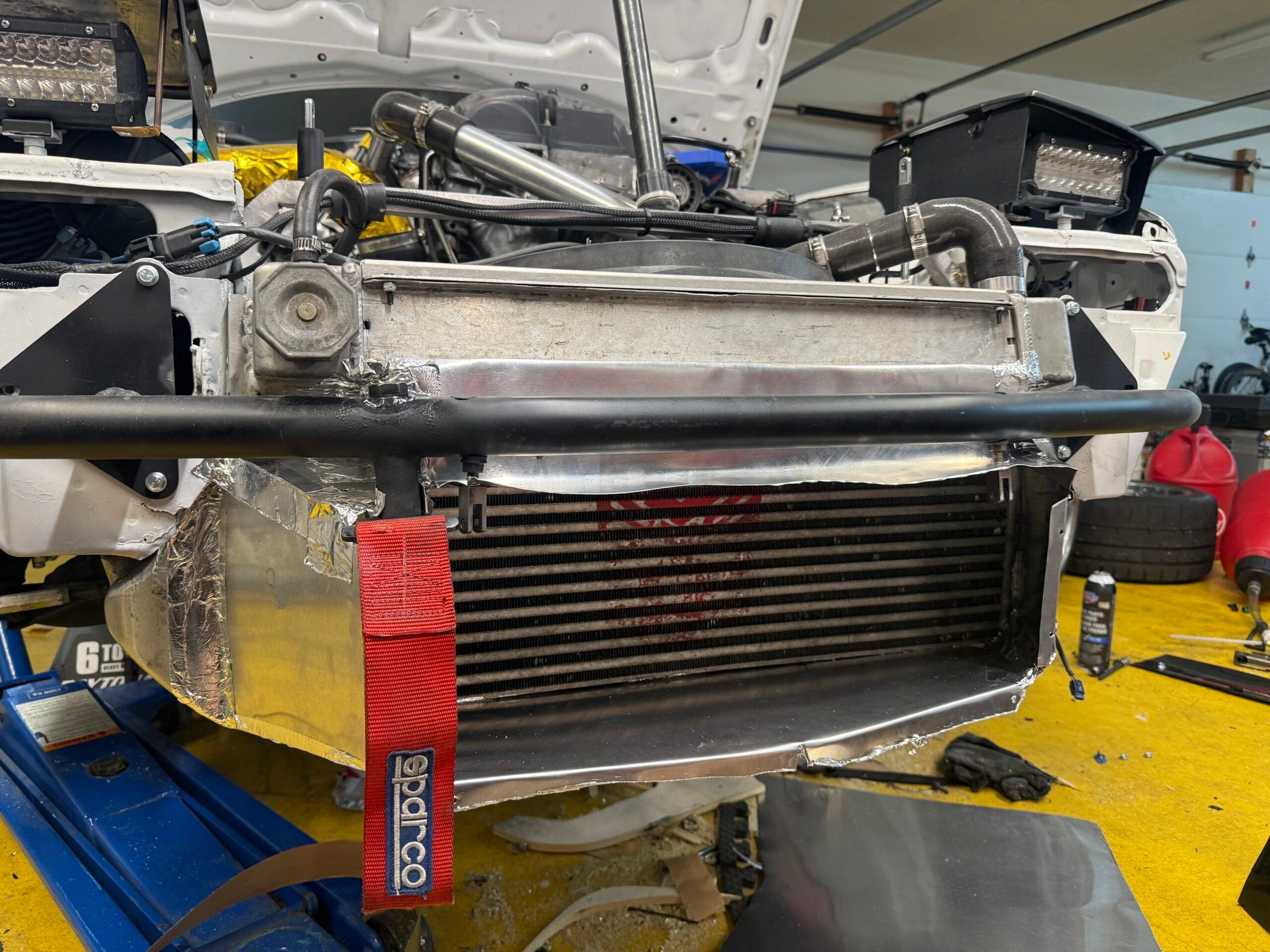

The front splitter mounts were tied into the crash bar by dropping bolts through the crash bar and using them as mounting points. This allowed the splitter hardware to attach to a stronger chassis-mounted structure rather than relying only on the bumper cover or other lightweight front-end components.
Installation gallery
Mazda · Miata · 1989-1997 NA

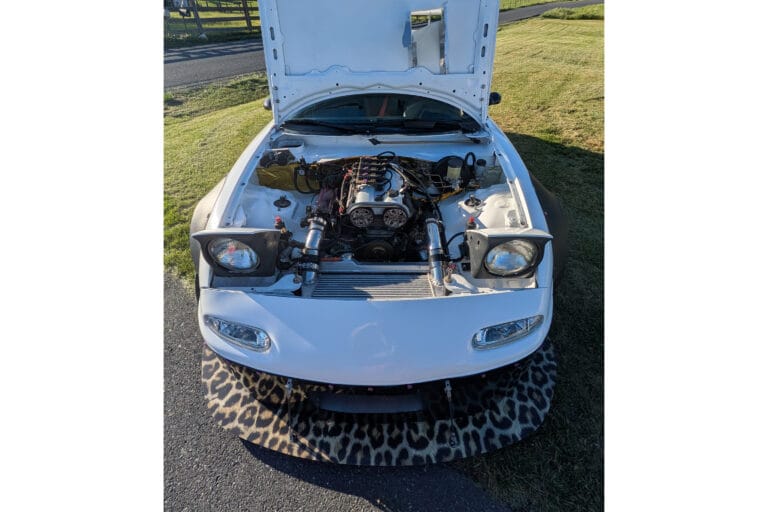

1995 Mazda Miata — Splitter Support Rods
See the mounting approach, finished result, and notes from this customer installation.
Mazda · Miata · 1989-1997 NA

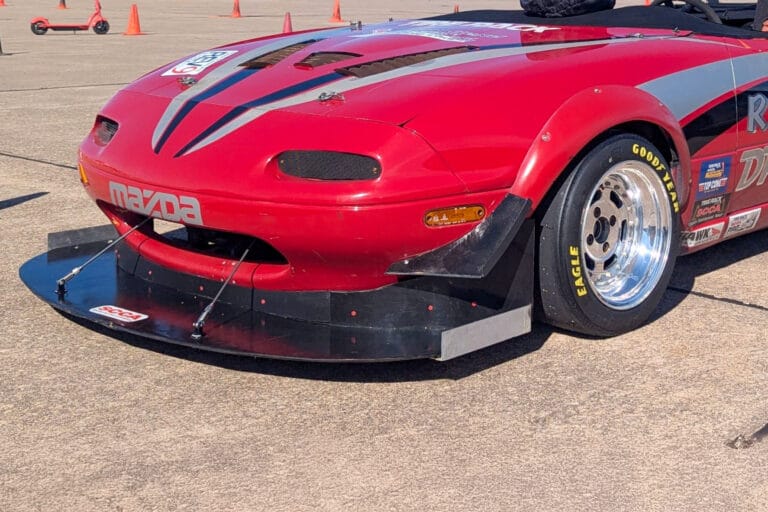

1990 Mazda Miata — Frame Rail 90 Degree Adapter Mounts for Splitters
