Description

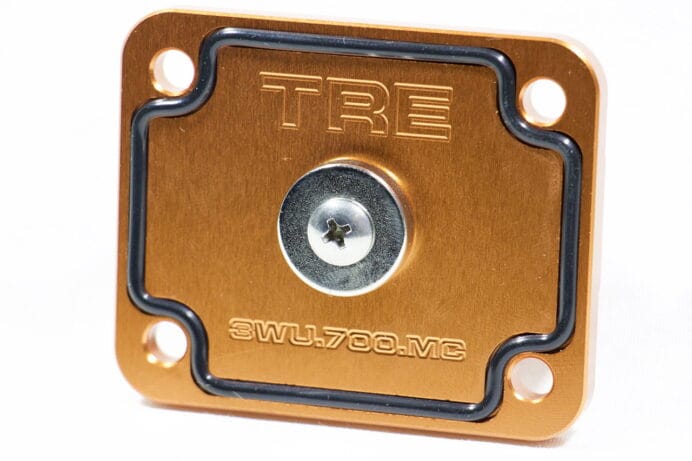

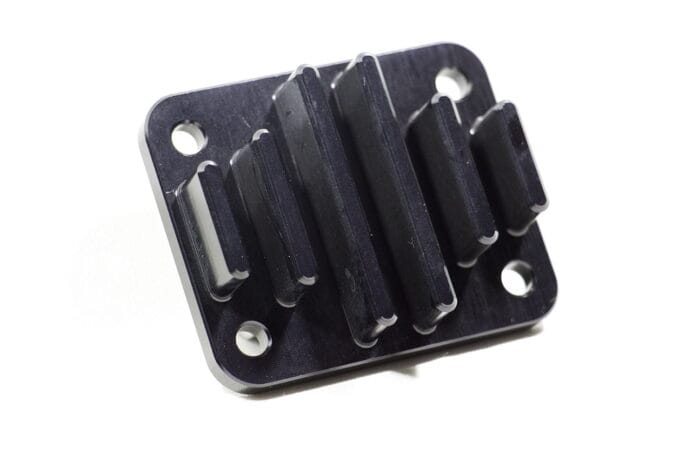

Transfer cases shed metal fines over time, especially on hard-driven cars. This TRE inspection cover replaces the factory access panel and adds a high-strength magnet to help capture ferrous debris before it continues circulating through the oil. The O-ring sealed design also makes inspections and servicing easier because you can remove and reseal the cover cleanly.
Key benefits
- Magnetic debris control helps capture metal fines to support ring and pinion, bearing, and gear life.
- O-ring sealed for easy removal and reseal during inspections.
- Billet construction with multiple finish options.
Fitment
- Mitsubishi Lancer Evolution VII, VIII, IX (CT9A)
- Mitsubishi Lancer Evolution X (2008–2015)
- Works with ACD and non-ACD applications.
- If your car has been swapped, confirm the cover and bolt pattern matches your transfer case before ordering.
What’s included
- TRE magnetic transfer case inspection cover
- (4) new installation bolts
- O-ring installed plus (1) spare O-ring
Installation notes
- Clean old sealant from the threaded holes and mating surface before install.
- Tighten bolts by hand carefully to ensure you do not strip the threads. Tighten similar to valve cover bolt torque.
- Recheck for leaks after the first heat cycle.
Related transmission protection: If you are addressing drivetrain heat and wear, consider the
TRE Transmission Oil Cooler Adapter Plate to improve 4th-gear oiling on Evo 5-speeds.
Made in the USA.
