1999 Honda Civic Si

← All customer installs

Honda · Civic · 1996-2000 EJ/EK/EM1

What this install demonstrates

A chassis-mounted quick-release splitter system with support rods and removable diffusers on a 1999 Honda Civic Si.

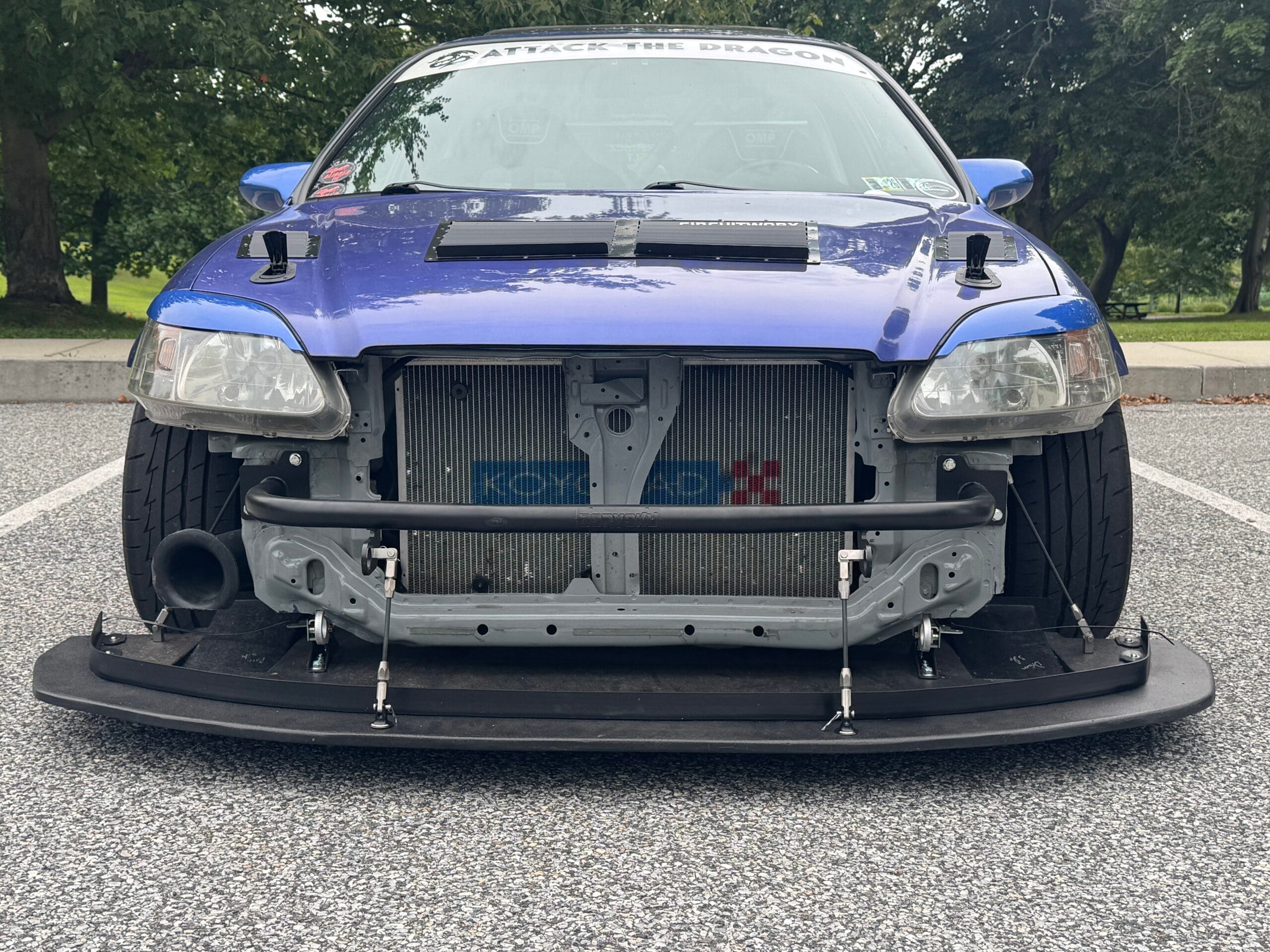

Front view of blue 1999 Honda Civic Si with a custom birch splitter and support hardware

Products used

Professional Awesome 1994-2001 Acura Integra & 1992-2000 Honda Civic Quick Release Splitter Support System1994-2001 Acura Integra & 1992-2000 Honda Civic Quick Release Splitter Support SystemProfessional Awesome Splitter Support Rods – PairSplitter Support RodsProfessional Awesome Large, High Downforce Splitter Diffusers – PairSplitter Diffusers

Customer spotlight

Support the builder who shared this install

If their work gave you an idea, follow their build and help us thank them for contributing it to the community.

Follow the build

Follow @dom_em1 on Instagram

Customer Notes:

Additional components: Doryoku front crash bar with dual tow hook and splitter-rod mounting holes; custom 3/4-inch birch plywood splitter.

To mount the outer splitter support rods, I drilled new holes in the chassis and used socket-head screws with lock washers to keep the clevises tight and secure. I also used rivnuts and epoxy to fasten the splitter diffusers to the plywood, making them easier to remove and reinstall when it is time to rebuild the splitter.

Gallery:

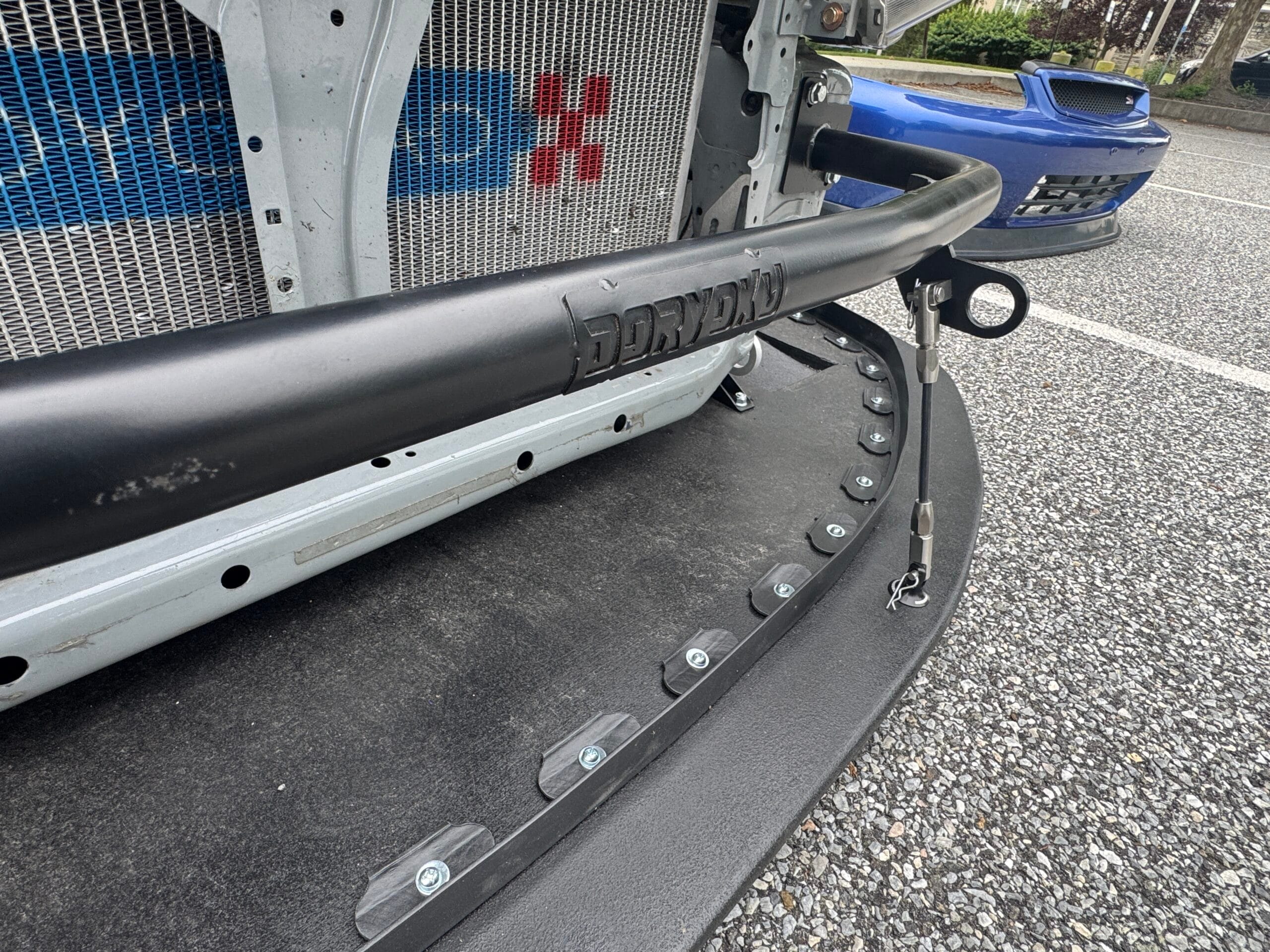

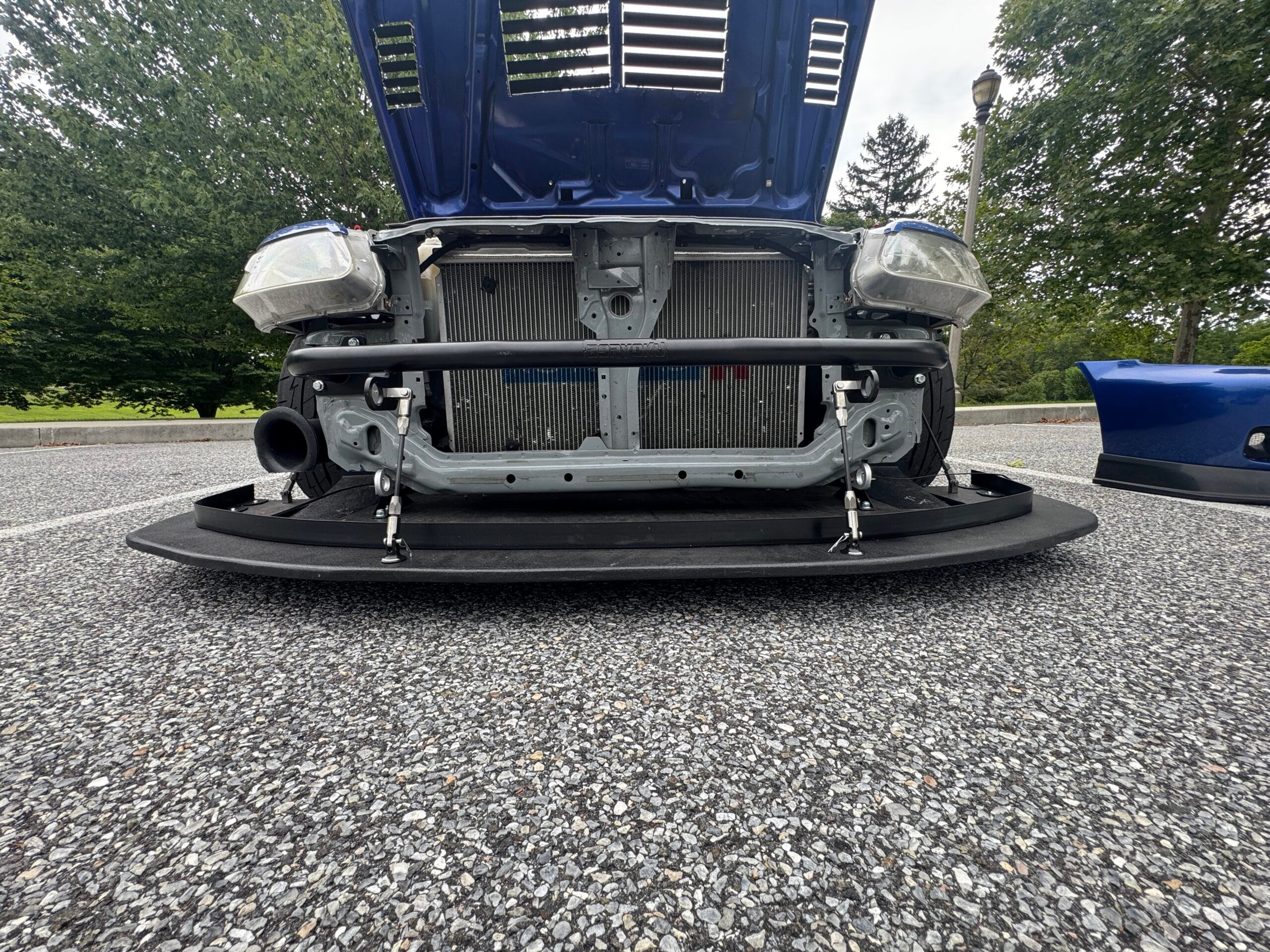

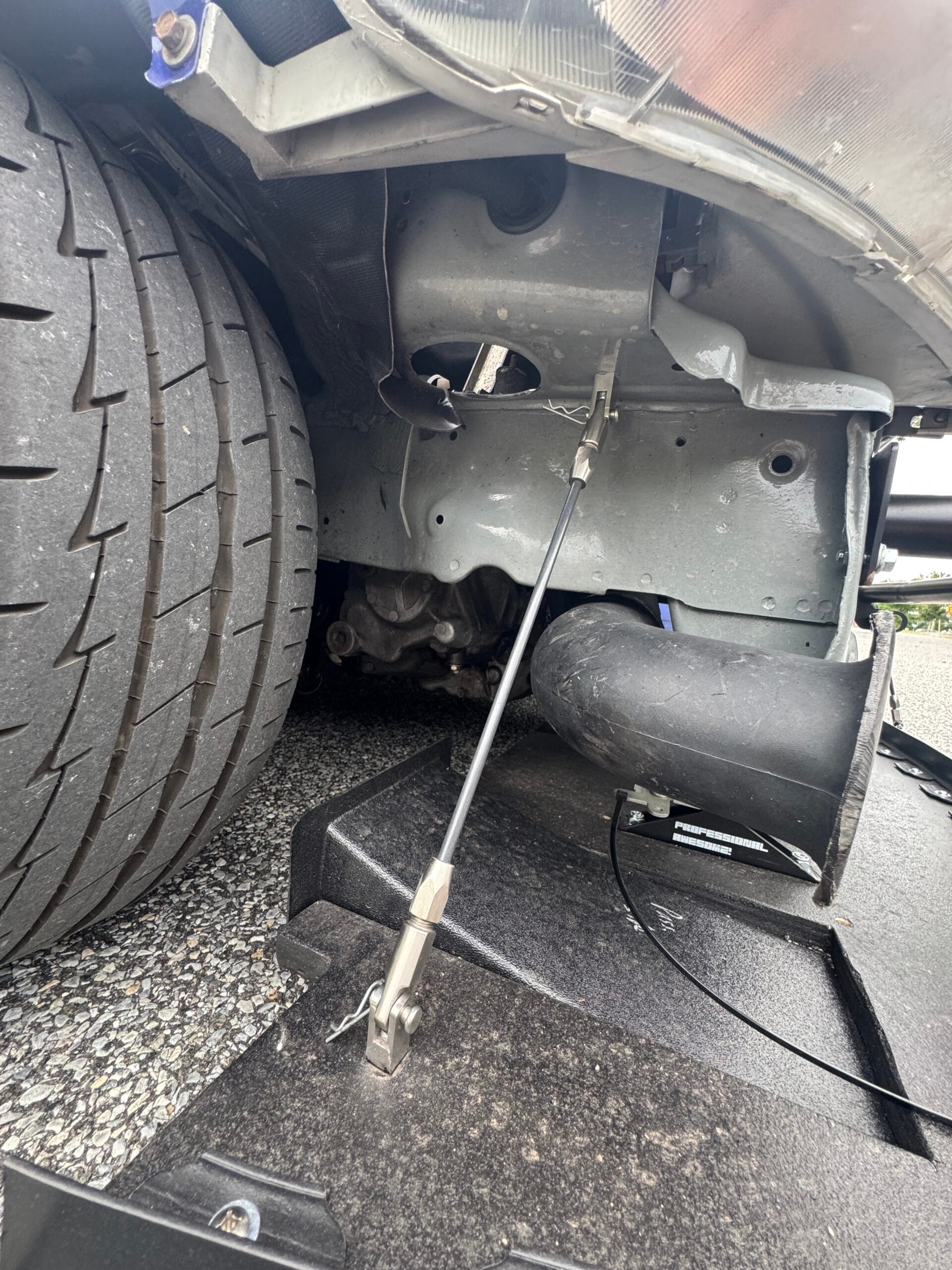

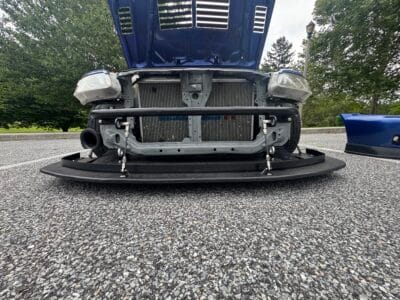

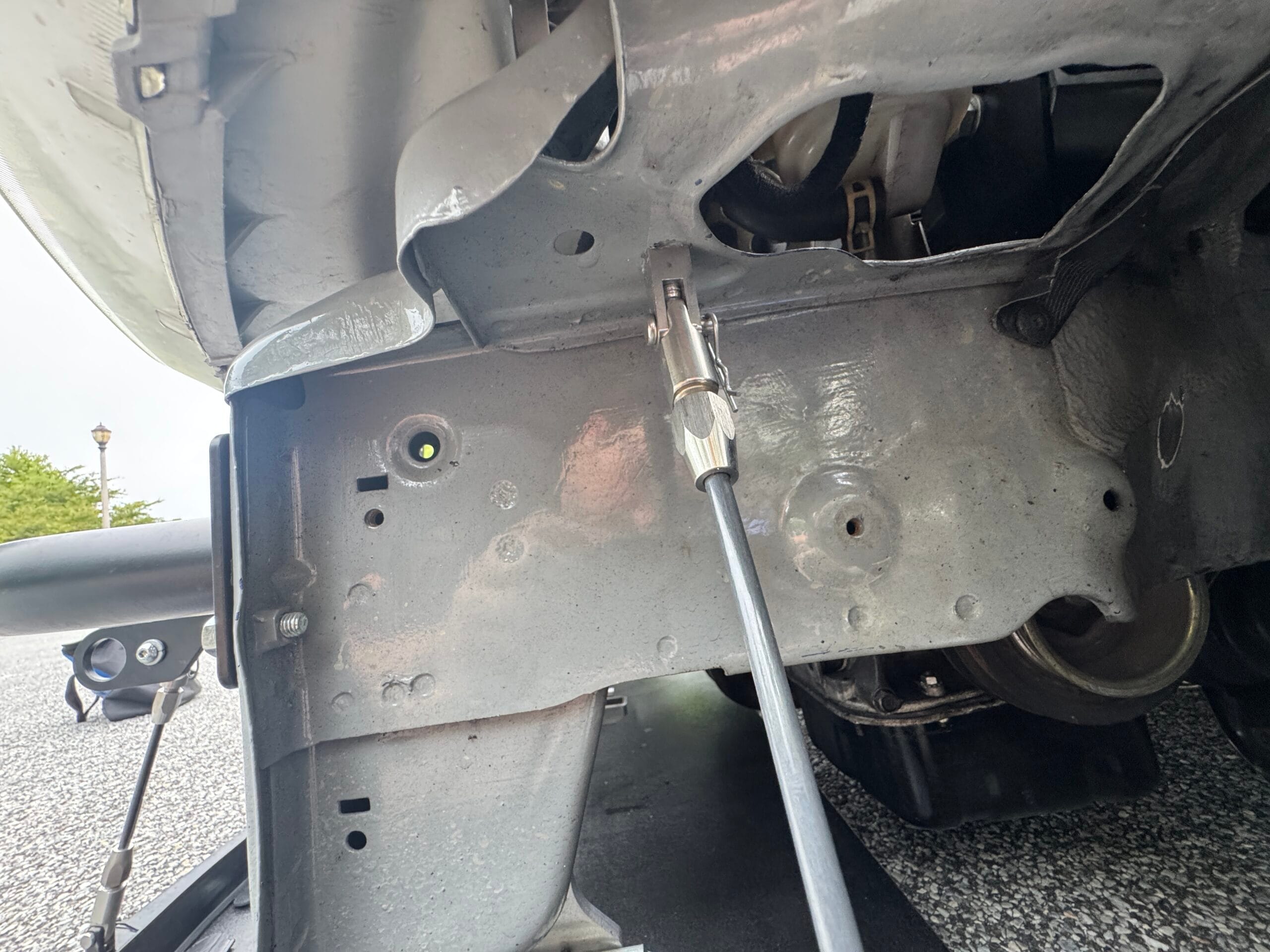

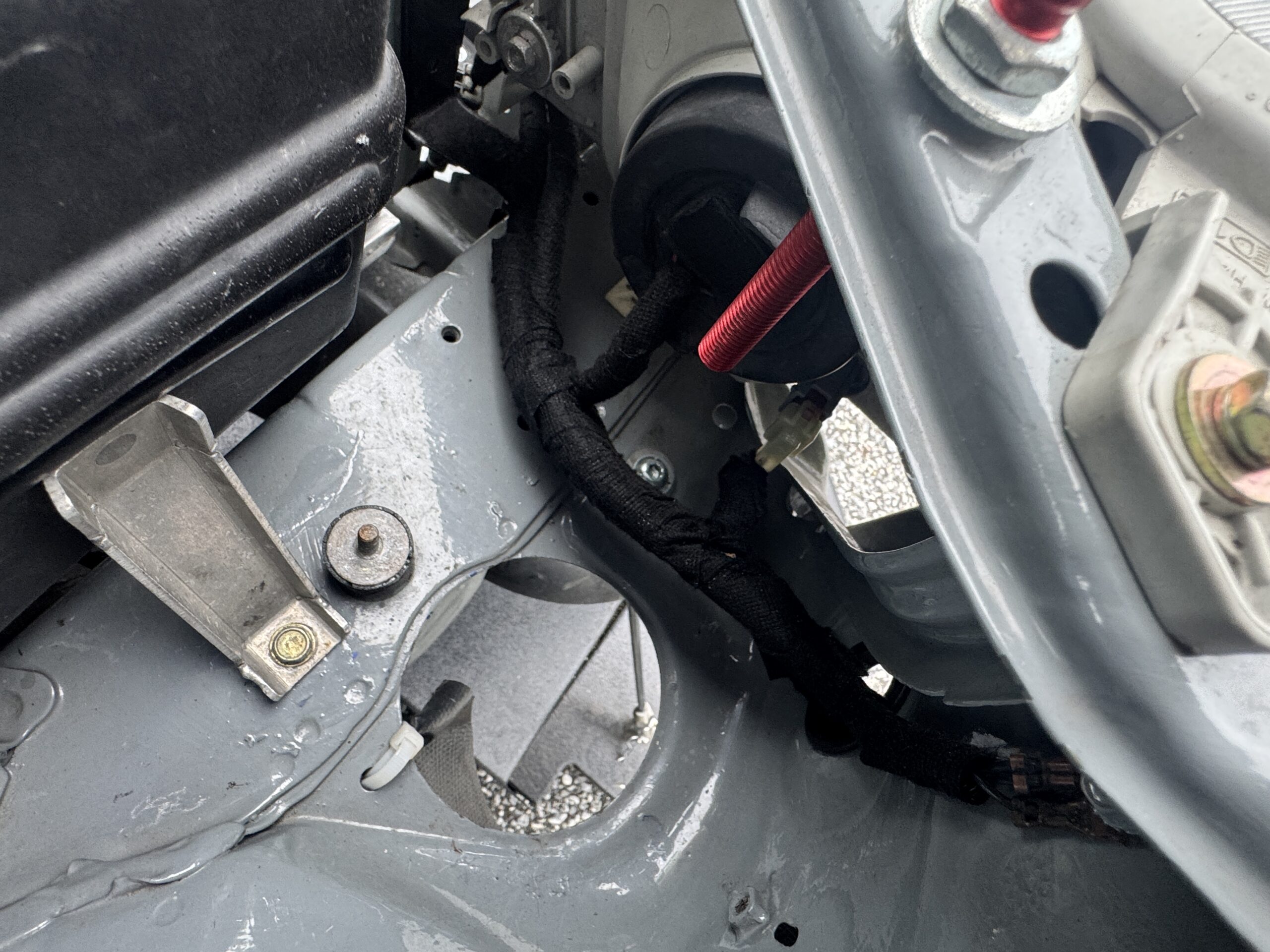

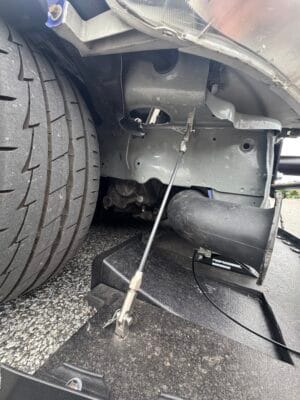

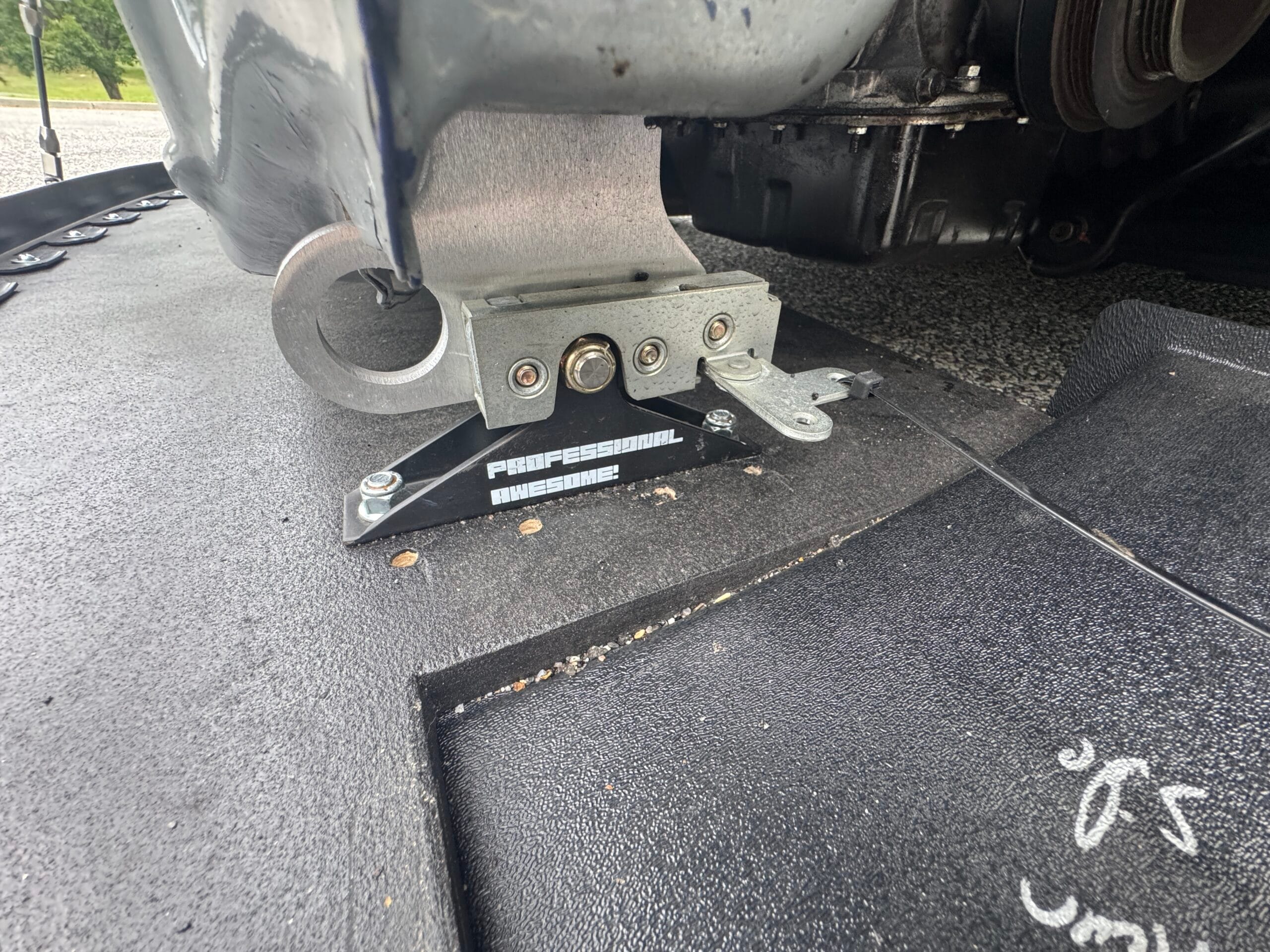

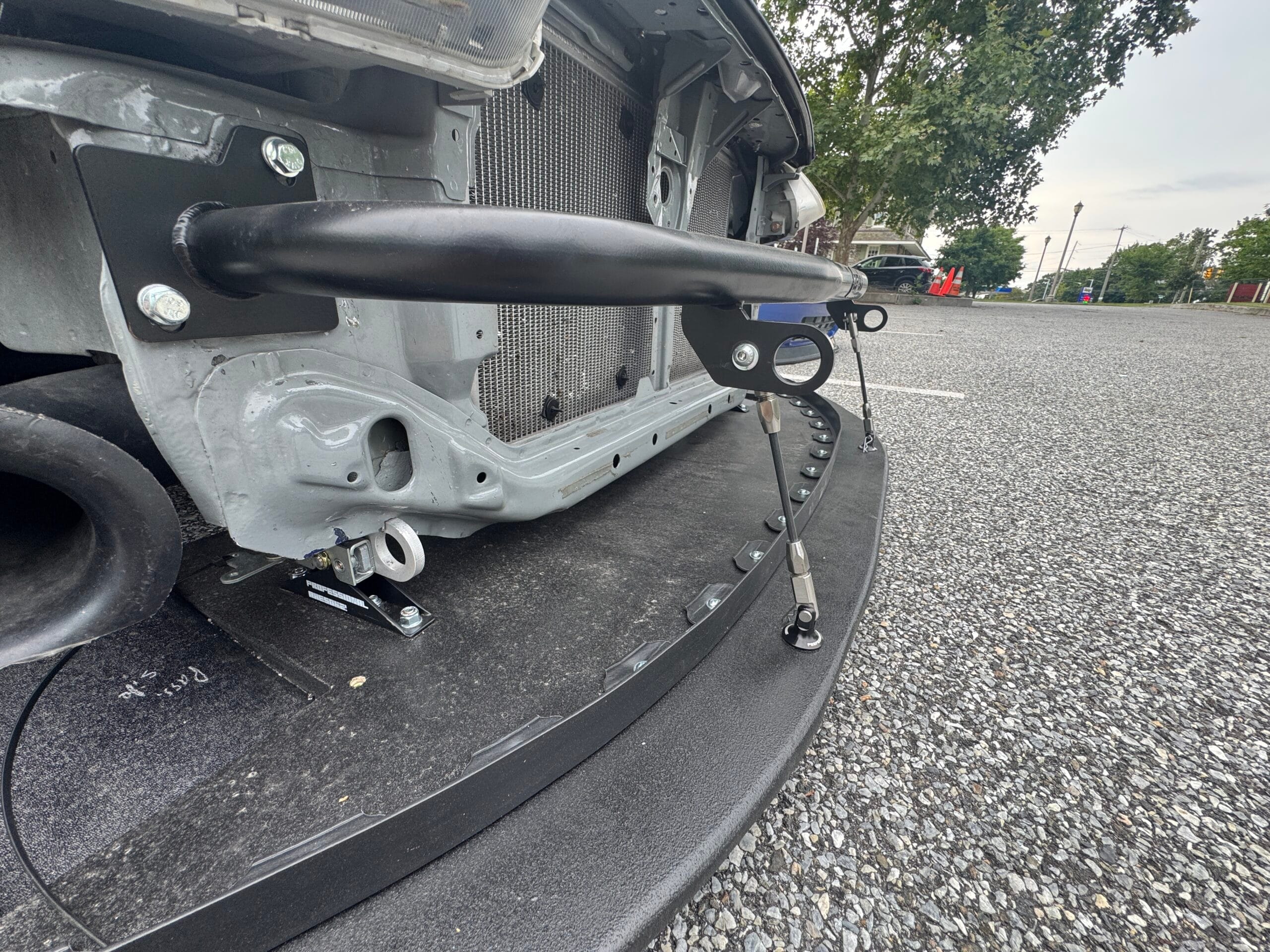

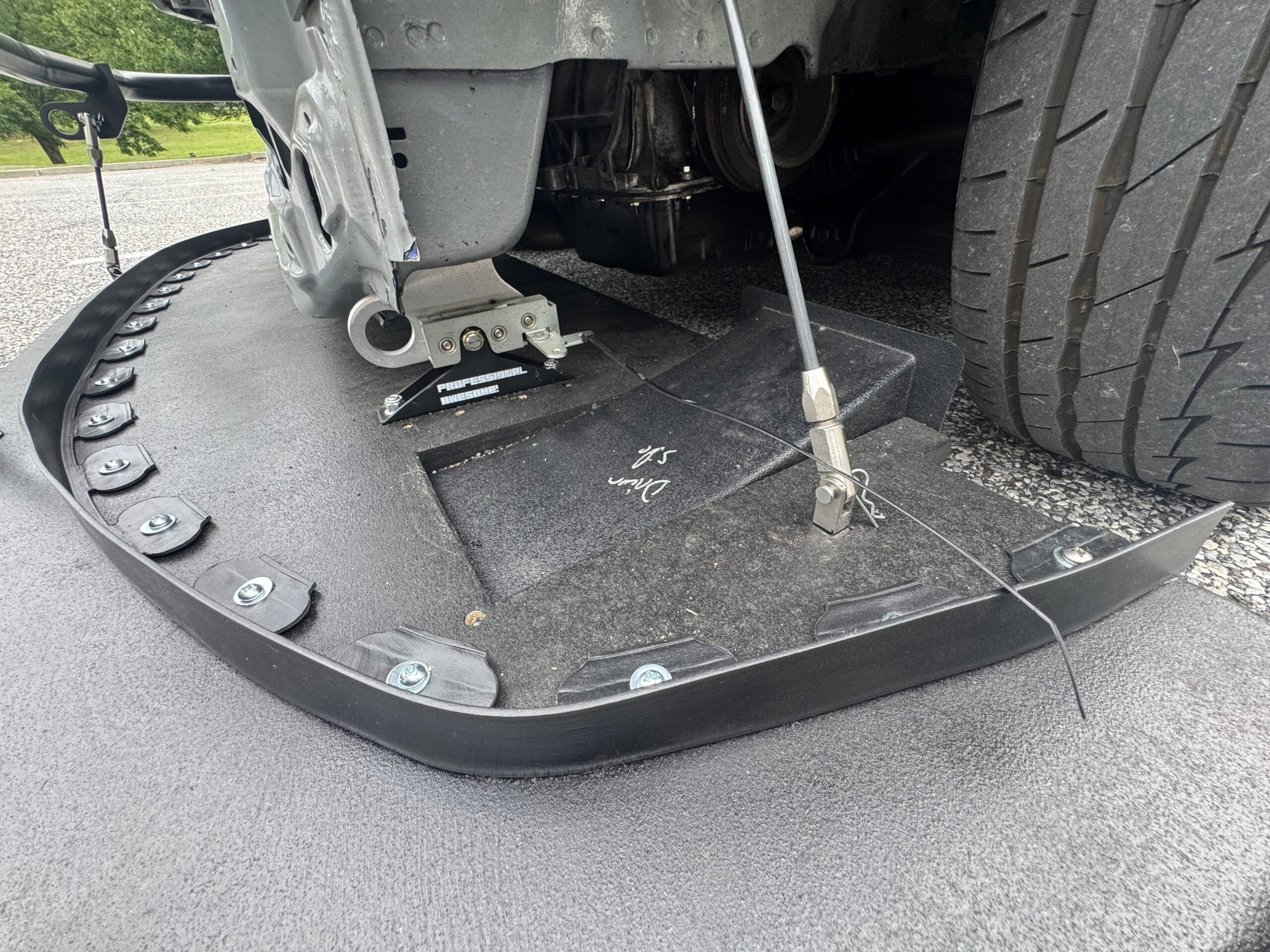

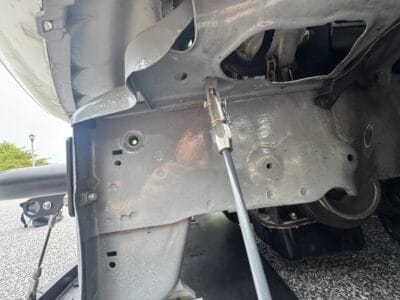

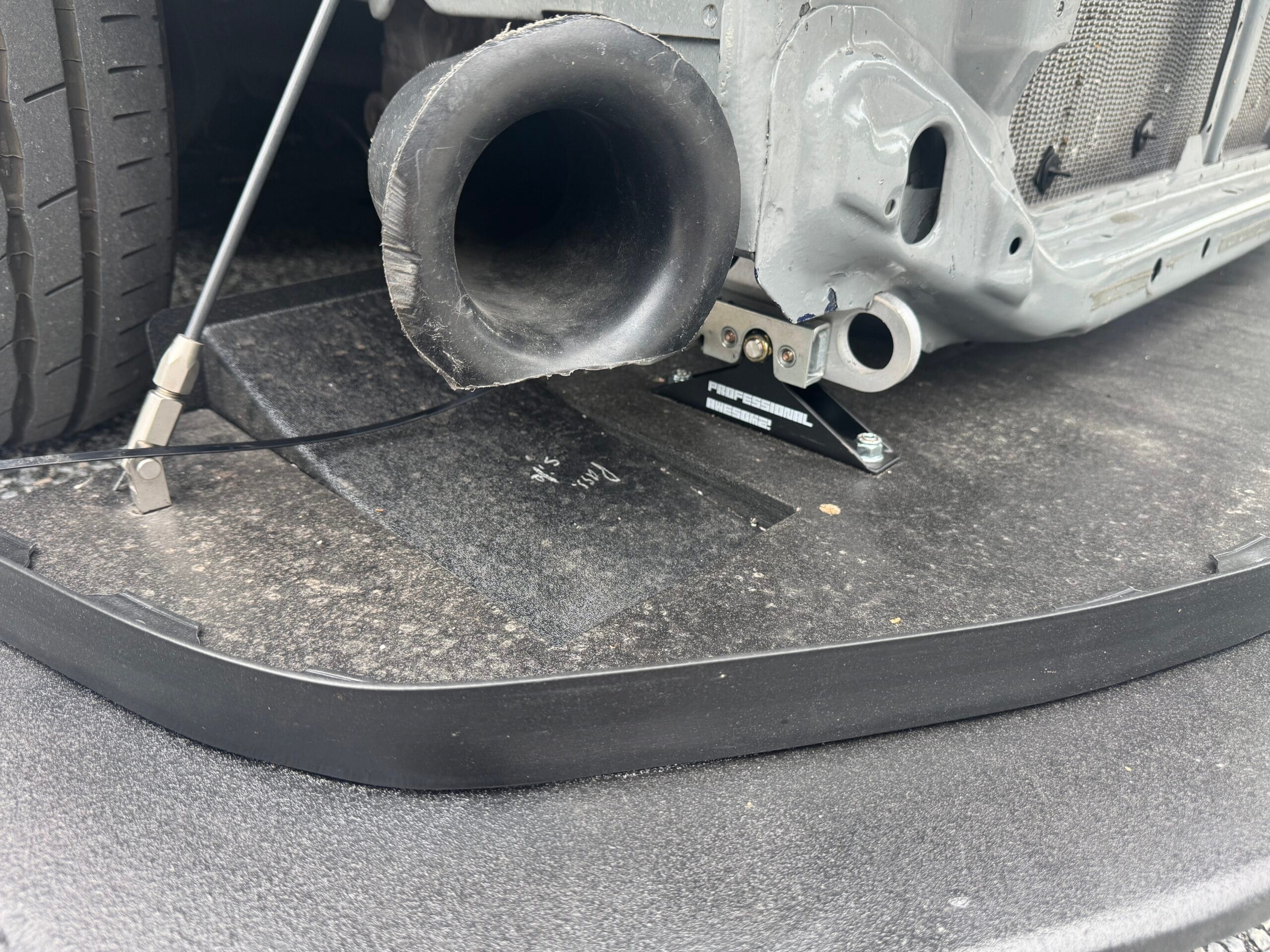

Front view of blue 1999 Honda Civic Si with a custom birch splitter and support hardwareFront view of 1999 Honda Civic Si showing a Doryoku crash bar and four splitter support rodsClose view of Civic Si Doryoku crash bar, quick-release splitter mounts, and support rodsProfessional Awesome quick-release splitter receiver mounted beneath a 1999 Honda Civic SiProfessional Awesome splitter diffuser and quick-release receiver on a Civic Si birch splitterSide splitter support rod mounted between the Civic Si chassis and custom birch splitterRemovable Professional Awesome splitter diffuser and support rod on a 1999 Honda Civic SiClevis attachment for a side splitter support rod on the 1999 Honda Civic Si chassisUpper chassis fastener for a side splitter support rod on a 1999 Honda Civic SiDoryoku front crash bar supporting splitter rods on a 1999 Honda Civic Si
