Boss 302 Splitter Support Rod Install

← All customer installs

Ford · Mustang · 2005-2014 S197

What this install demonstrates

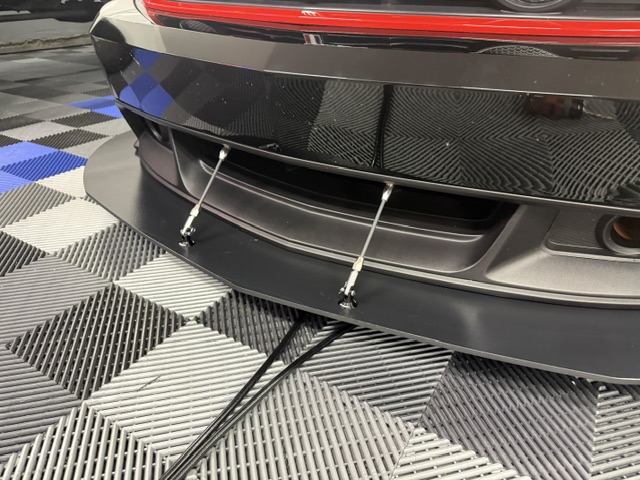

Jon’s 2012 Mustang Boss 302 Laguna Seca replaces factory splitter rods with Professional Awesome support rods, using the existing mounting holes and a stepped threaded stud.

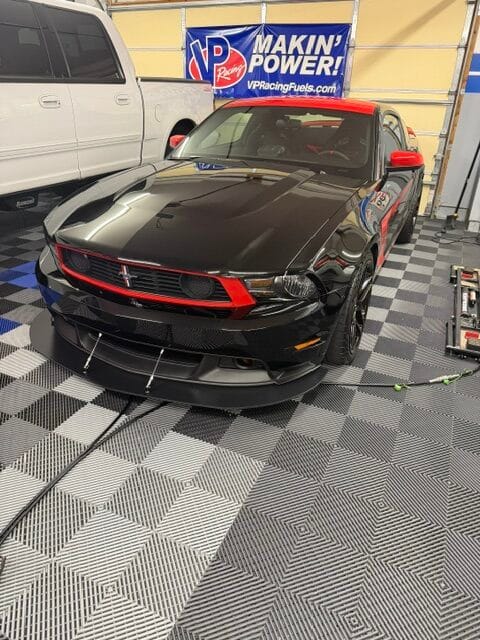

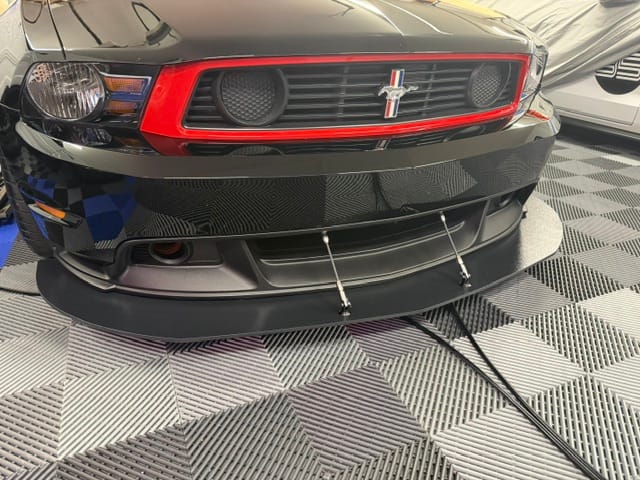

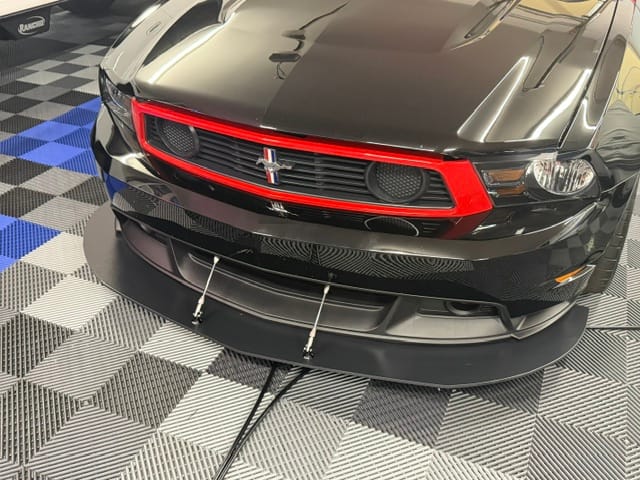

Jon Weatherford’s black and red 2012 Ford Mustang Boss 302 Laguna Seca with its factory front splitter and replacement support rods.

Products used

Splitter Support Rods

Customer spotlight

Jon Weatherford

Jon shared his 2012 Ford Mustang Boss 302 Laguna Seca and the mounting details behind his factory splitter support rod replacement. Thanks for helping the next owner see how it all comes together!

Customer notes

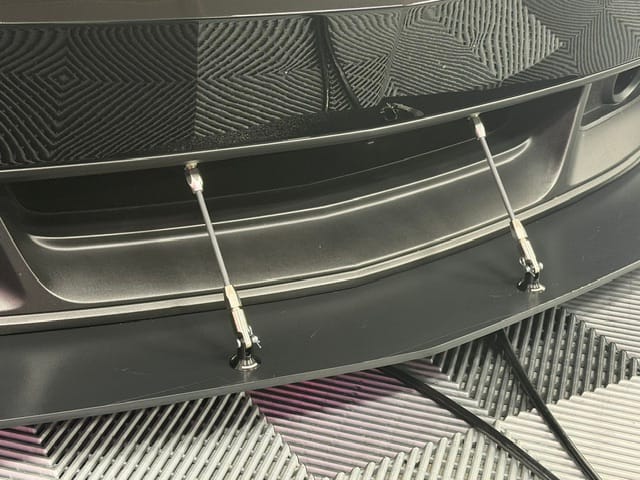

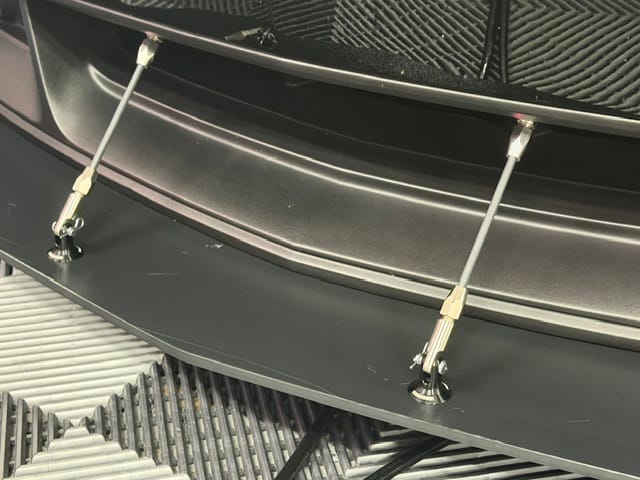

I just replaced the factory splitter support rods on my 2012 Boss 302 Laguna Seca with your rods. The car has a factory, customer-installed splitter. Yours worked out perfectly, even in a factory-replacement scenario. Absolutely perfect—the quality is amazing, and the racecar parts look so much better.

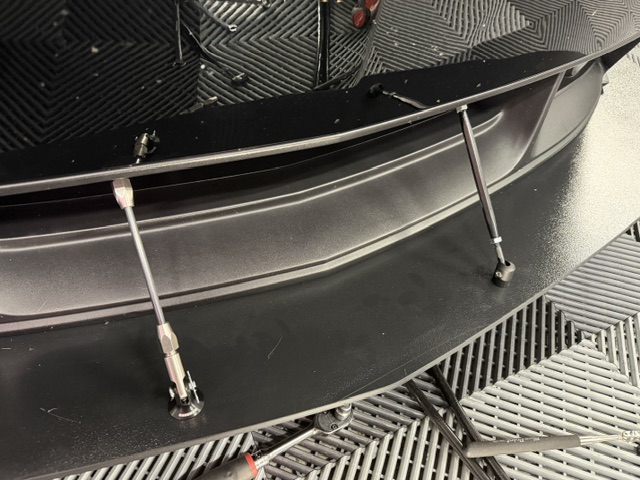

Unfortunately, I don’t have any pictures of the upper mounts, as they are completely recessed into the black plastic trim around the radiator opening. The car was built for splitter support rods, so no modifications were needed to get these installed. I never had to remove the trim or the bumper skin.

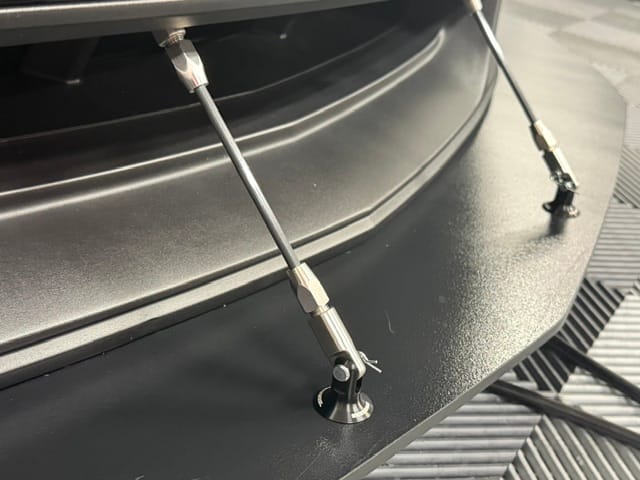

I am using your standard 5/16-24 clevis on the top. The threaded hole in the bumper for the stock splitter is 1/4-20, not metric. Using a double-ended stud—5/16-24 on one end and 1/4-20 on the other—it threads right into the factory threaded hole.
