1989 BMW 325is E30 Splitter Install

← All customer installs

BMW · 325is · 1982-1994 E30

What this install demonstrates

Drew’s BMW E30 combines an ABS splitter and hand-formed aluminum air dam with splitter diffusers, fabricated chassis brackets, quick-release mounts, and bumper-anchored support rods.

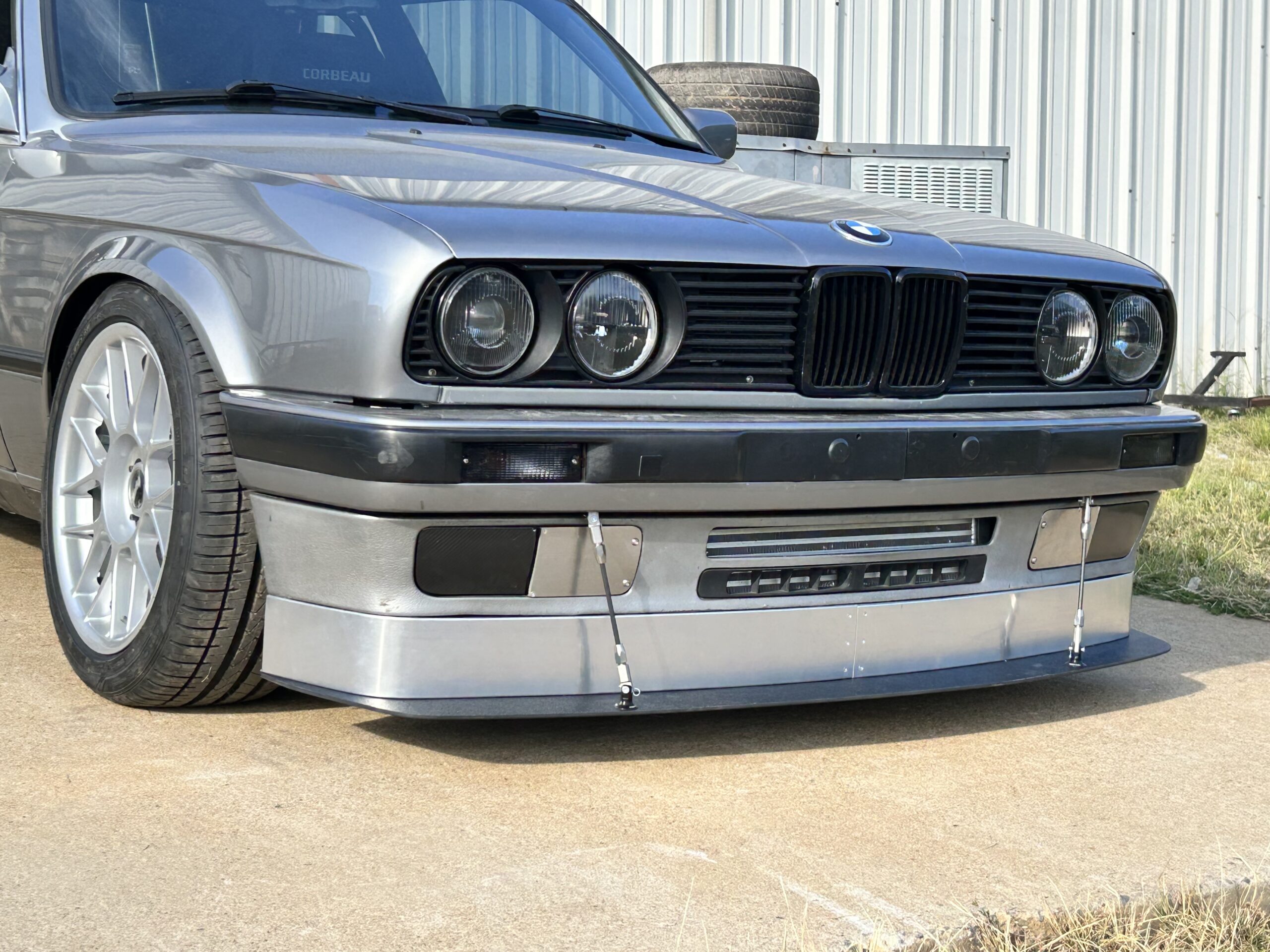

Front three-quarter view of Drew Fuller’s silver 1989 BMW E30 325is with ABS splitter, aluminum air dam, and two support rods.

Products used

Professional Awesome Universal Quick Release Splitter Support SystemUniversal Quick Release Splitter Support SystemProfessional Awesome Splitter Diffusers – PairSplitter DiffusersProfessional Awesome Splitter Support Rods – PairSplitter Support Rods

Customer spotlight

Support the builder who shared this install

If their work gave you an idea, follow their build and help us thank them for contributing it to the community.

Follow the build

Follow @olof_501rf on Instagram Follow @wrkshop325 on Instagram

Customer notes

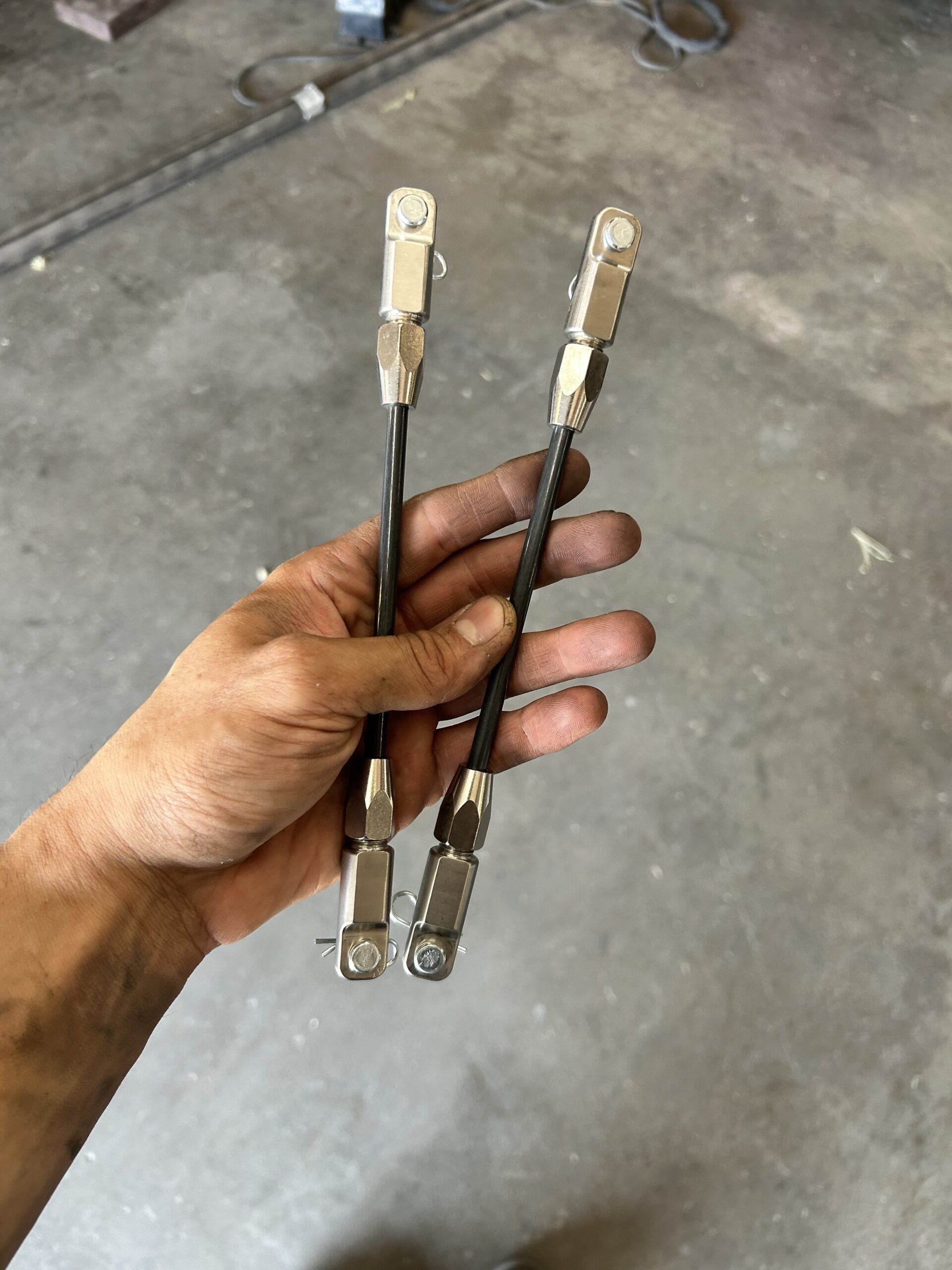

The splitter material is ABS. The blade is secured with fabricated drop-down chassis brackets attached to the core support structure and externally reinforced by the Professional Awesome universal quick-release support system, featuring adjustable support rods anchored directly to the front bumper support.

The hand-formed aluminum air dam and splitter extensions mirror the exact contour of the original factory BMW E30 325is front valance profile. They are securely fastened with flush rivets and mechanical fasteners directly to the perimeter of the ABS splitter blade and bumper assembly for a rigid, aerodynamic seal.

Special thanks to my friend and amazing fabricator, Olof Olson (@Olof_501rf).

Installation gallery

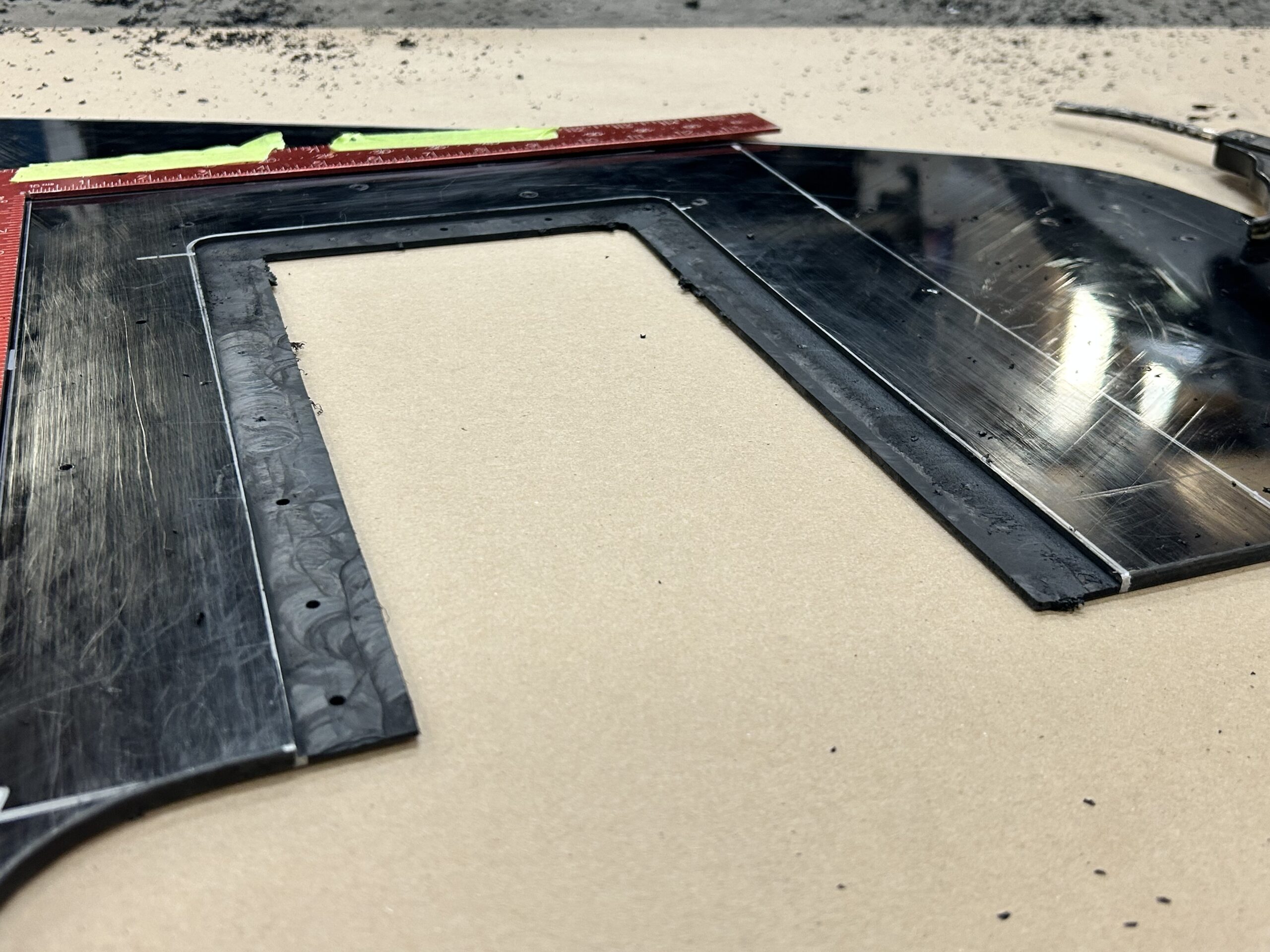

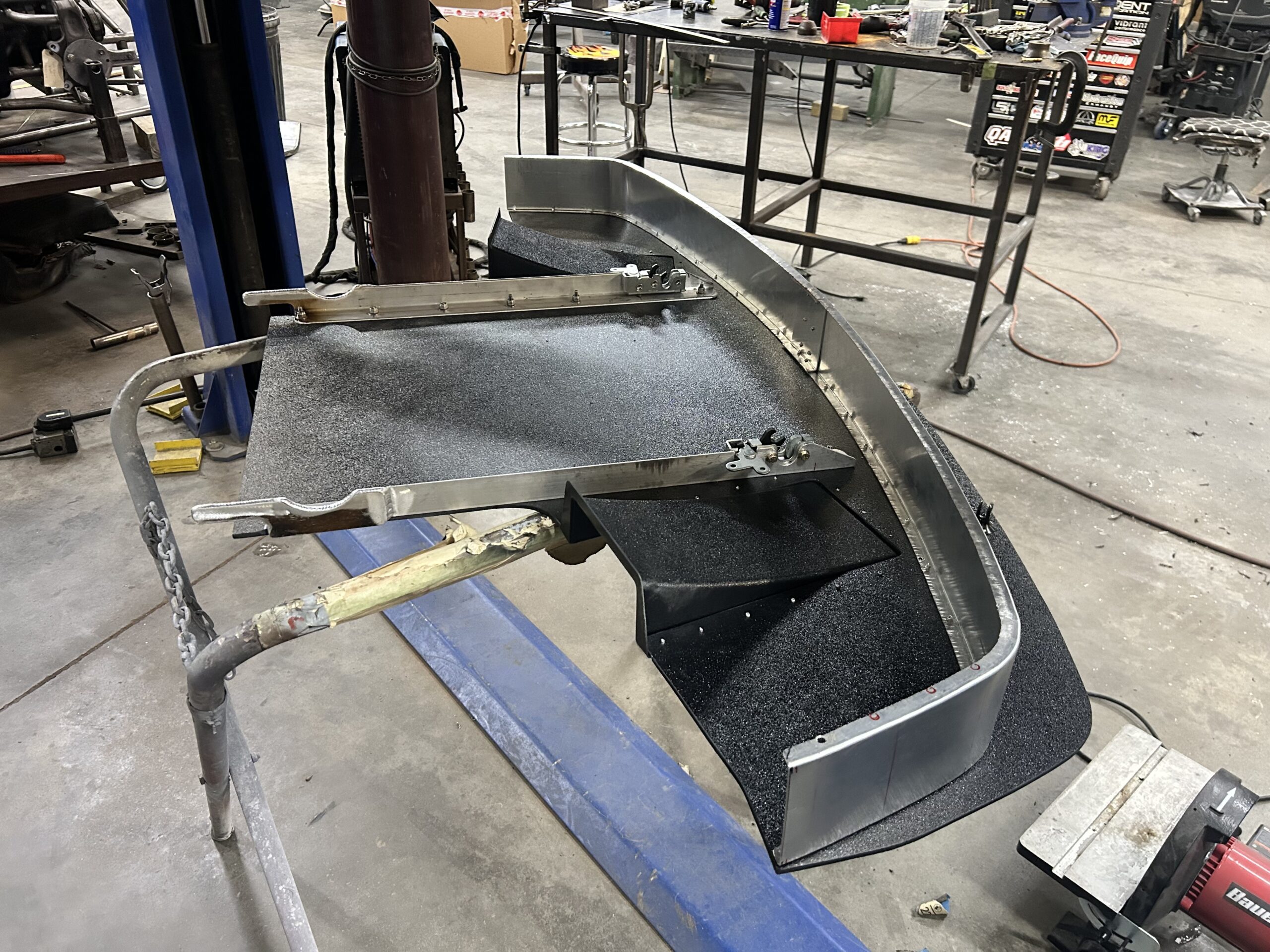

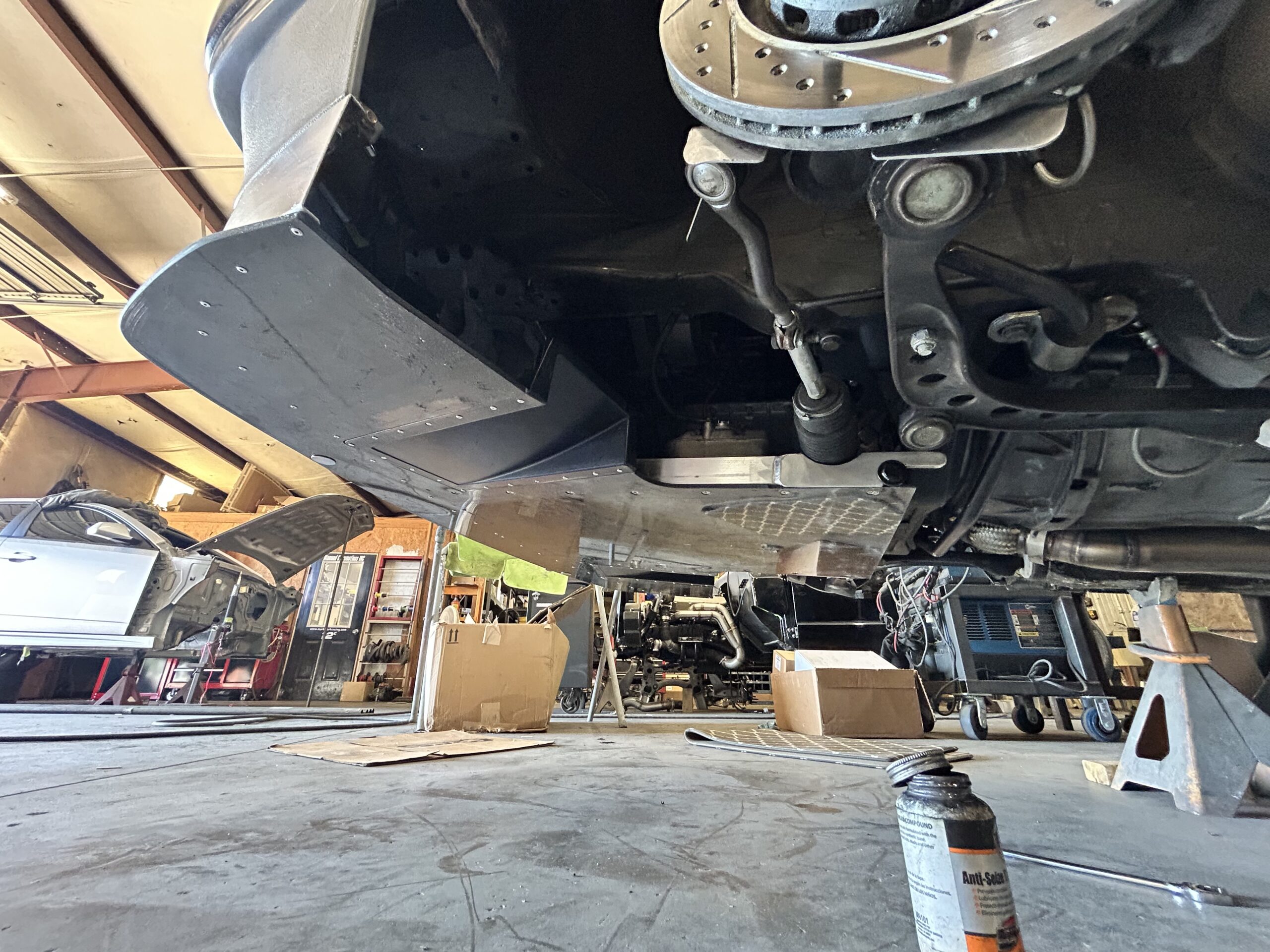

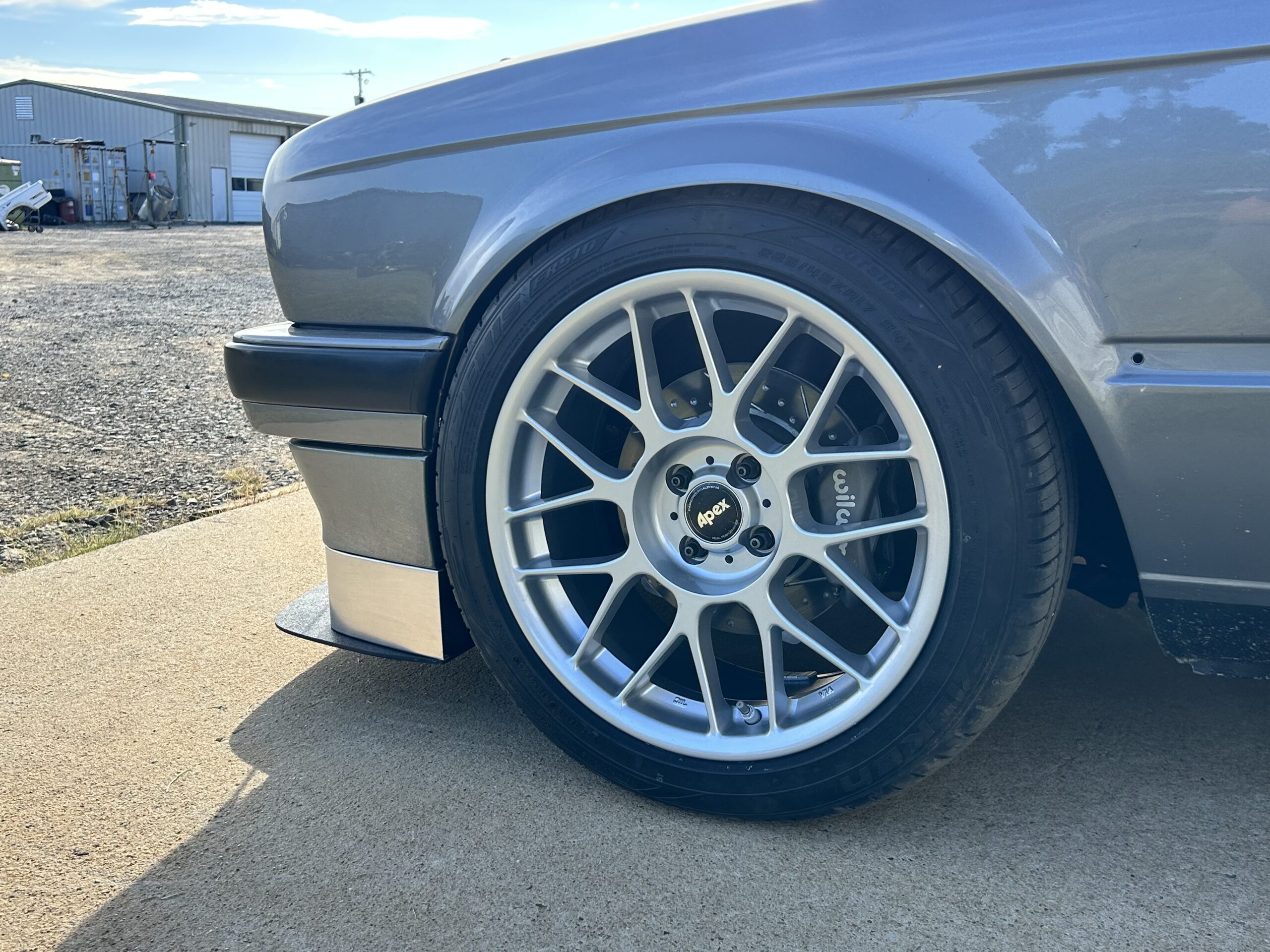

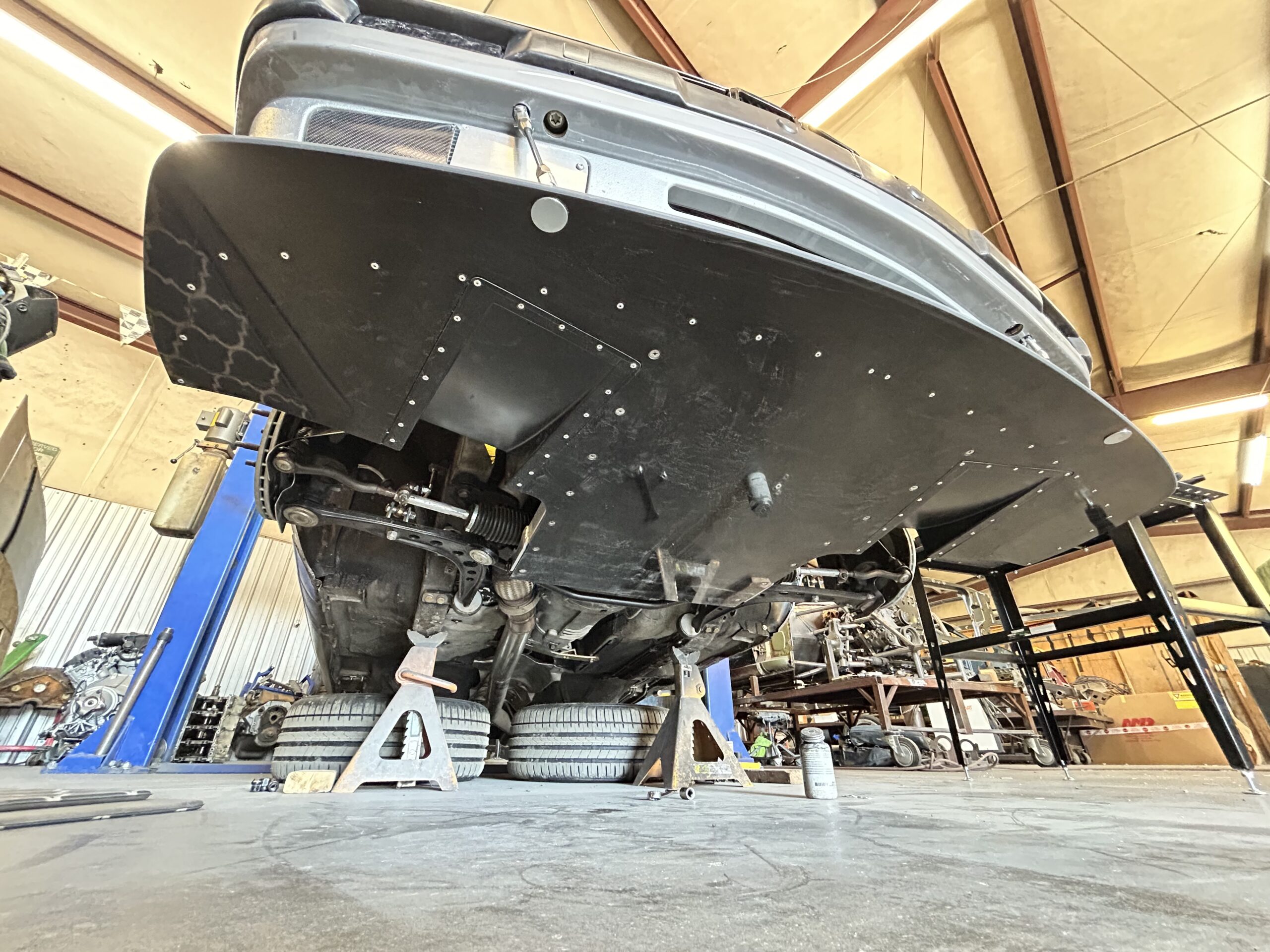

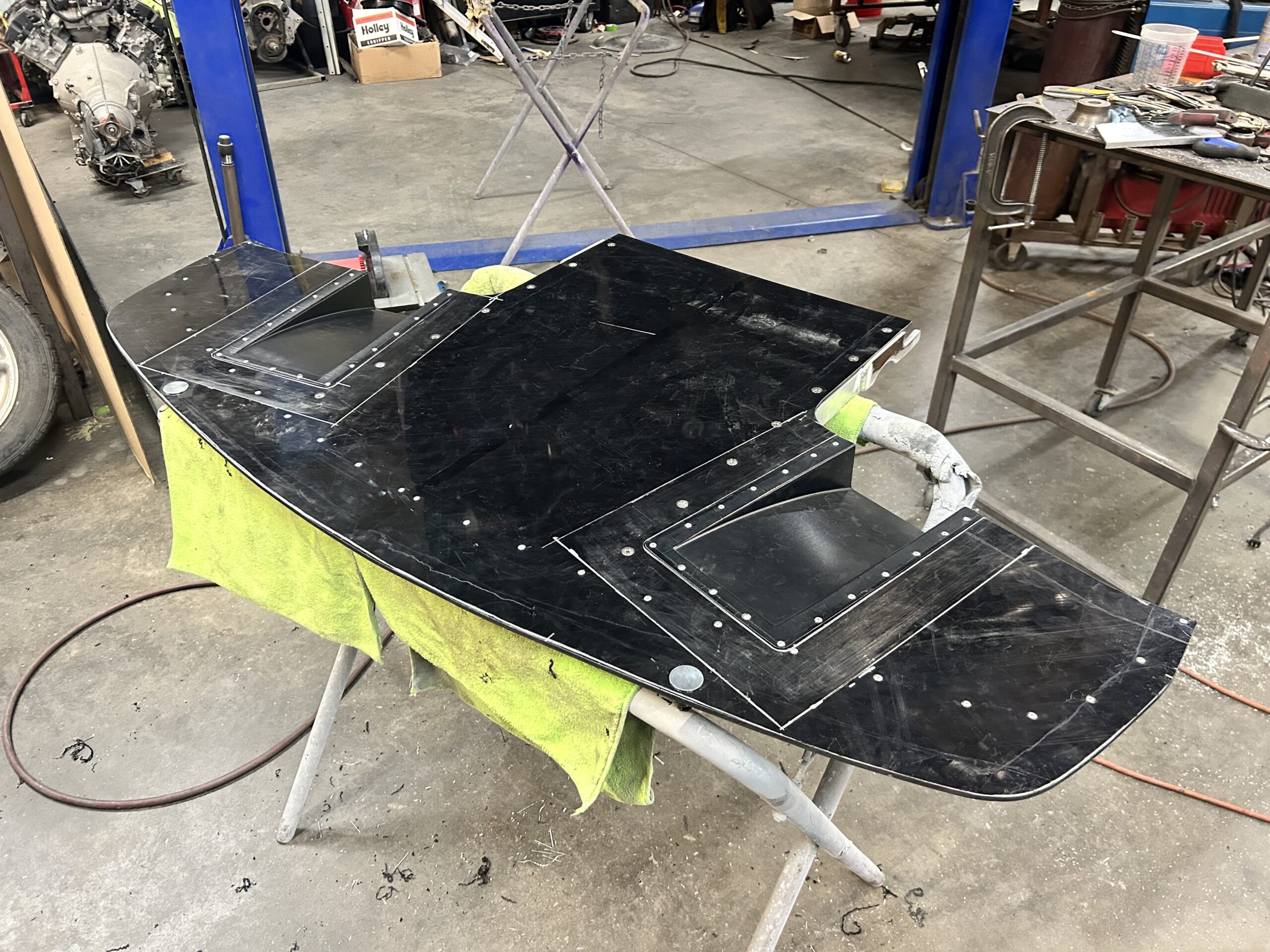

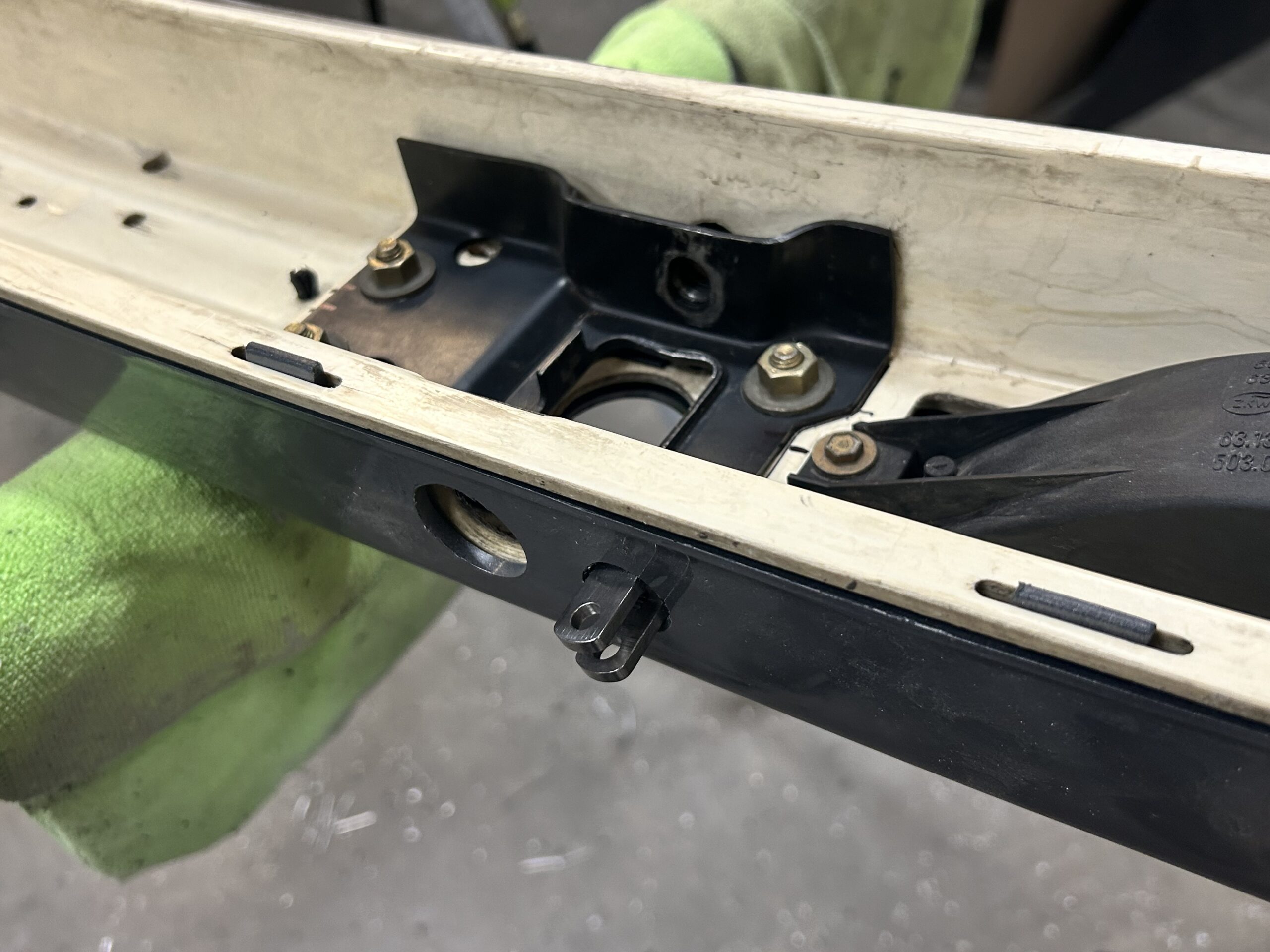

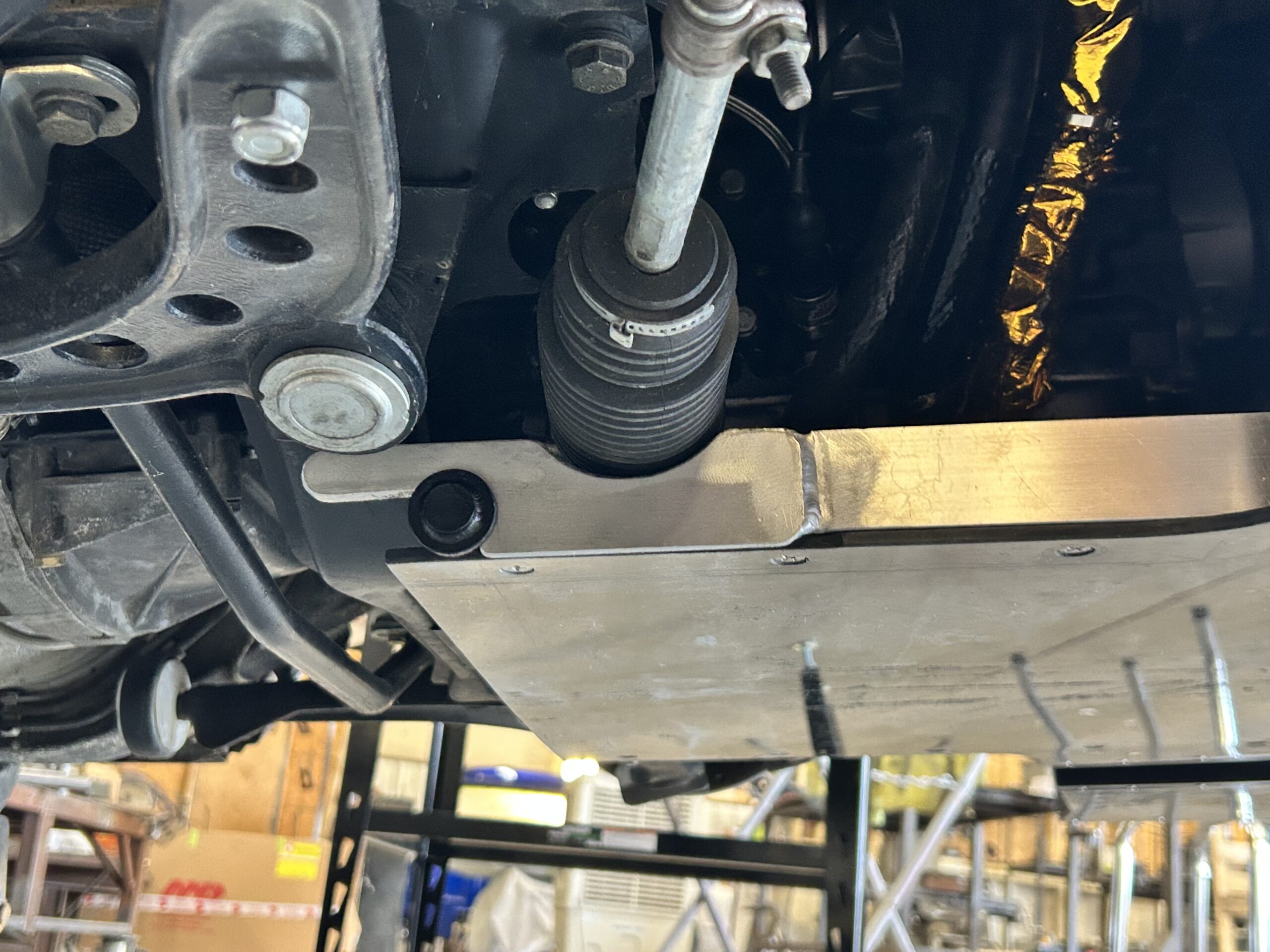

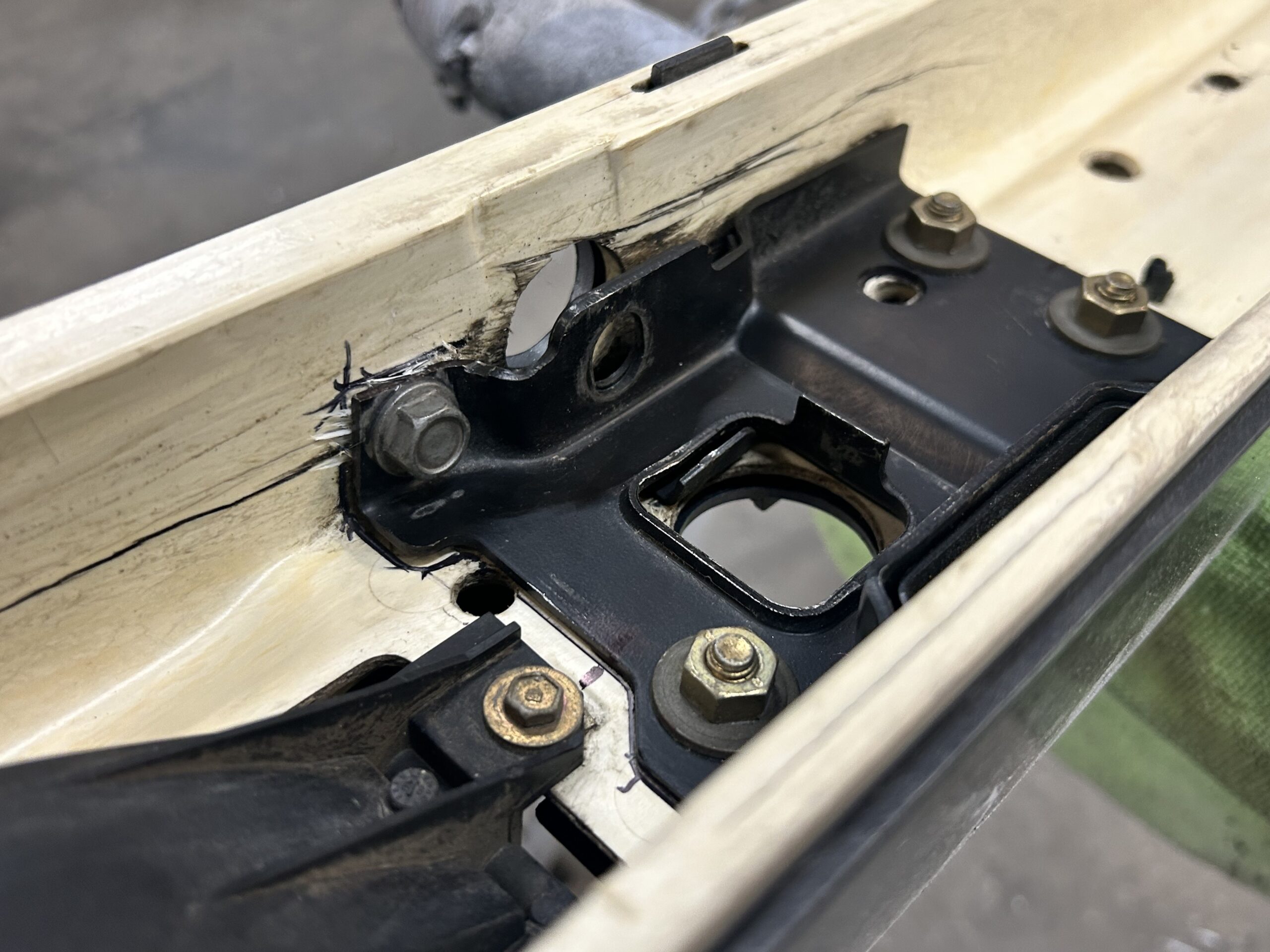

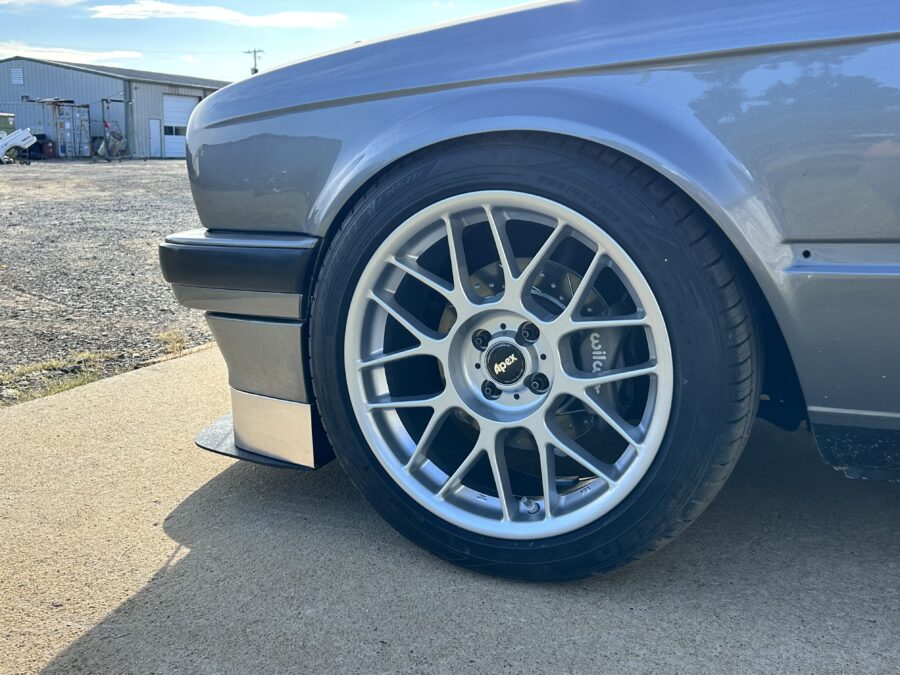

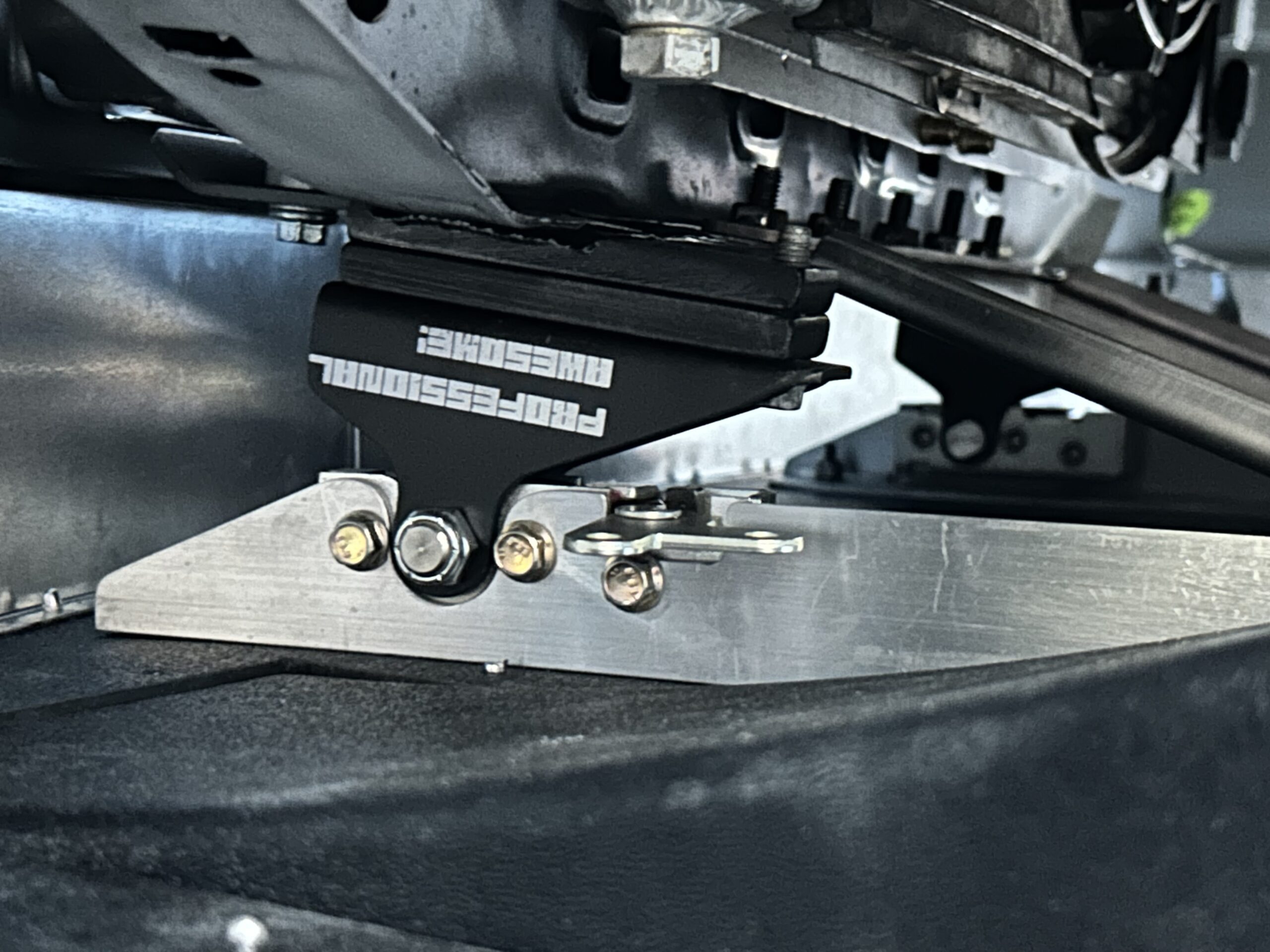

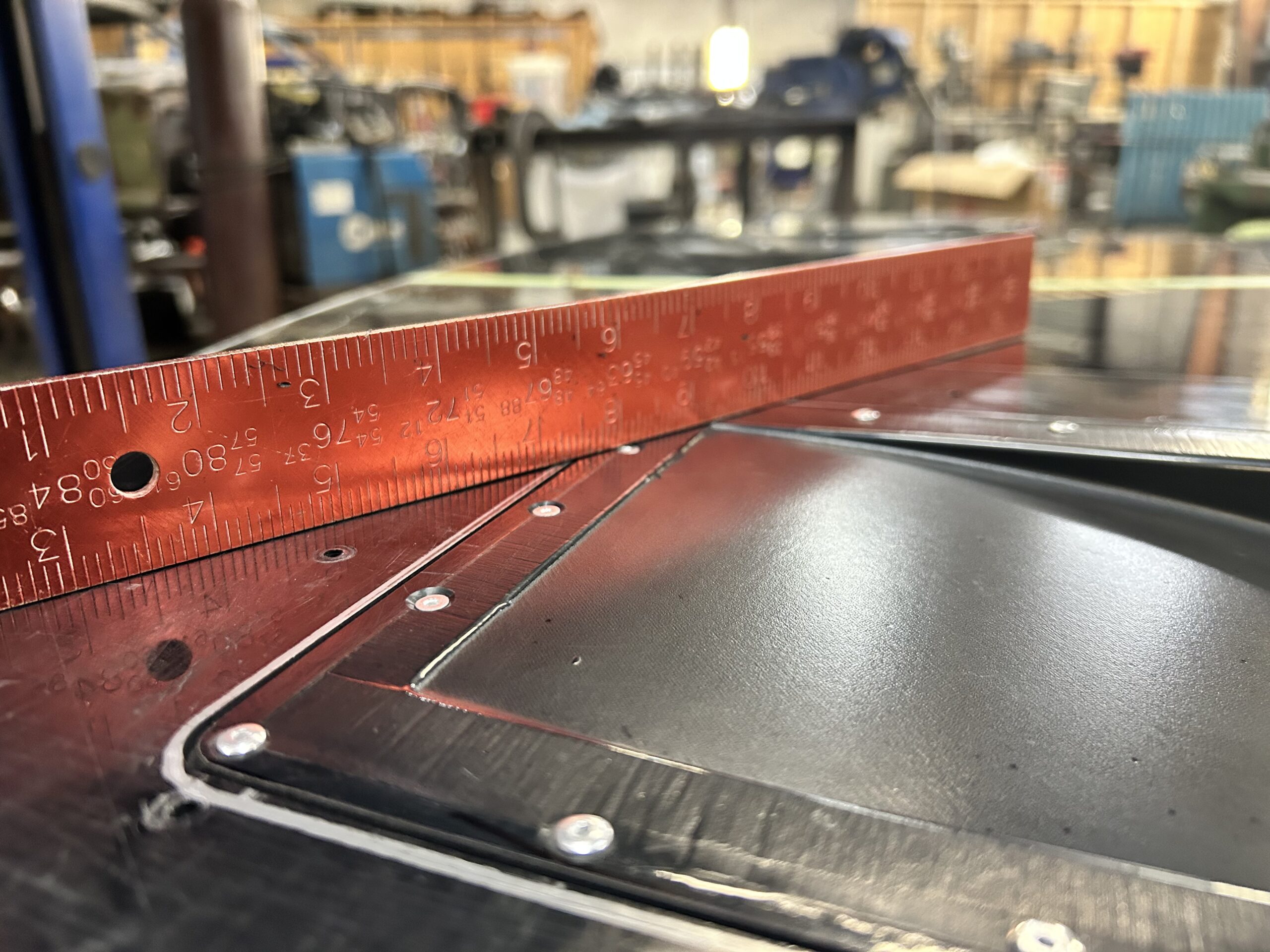

Front three-quarter view of Drew Fuller’s silver 1989 BMW E30 325is with ABS splitter, aluminum air dam, and two support rods.Side view of Drew’s BMW E30 front wheel showing the splitter edge and aluminum air dam profile.ABS splitter blade with a rectangular diffuser cutout and layout marks for Drew’s 1989 BMW E30 325is.Close-up of a splitter diffuser inset and flush rivets beside a ruler on Drew’s BMW E30 ABS splitter.Underside of Drew’s ABS splitter on a work stand showing two inset splitter diffusers and rows of flush fasteners.BMW E30 splitter assembly on a stand with hand-formed aluminum air dam, fabricated brackets, quick-release hardware, and diffusers.Close-up of a support rod clevis protruding from Drew’s BMW E30 front bumper assembly.Close-up of mounting hardware and clearance cutouts inside Drew’s BMW E30 bumper support assembly.Professional Awesome quick-release splitter mount attached to a fabricated bracket beneath Drew’s BMW E30.Underbody view of a BMW E30 showing a splitter diffuser, aluminum air dam, and surrounding suspension components.Fabricated splitter support bracket and aluminum panel beside the steering rack boot under Drew’s BMW E30.Wide underside view of Drew’s 1989 BMW E30 325is showing the installed ABS splitter, diffuser openings, and support rods.Pair of assembled Professional Awesome splitter support rods with clevises, pins, and retaining clips held before installation.
