Tanner’s BMW E82 135i / 1M Clone Splitter Install

← All customer installs

BMW · 135i · 2007-2013 E82

What this install demonstrates

Tanner’s 2009 BMW 135i / 1M clone uses Condor frame-rail adapters, Professional Awesome quick releases and support rods, and a Hard Motorsport splitter.

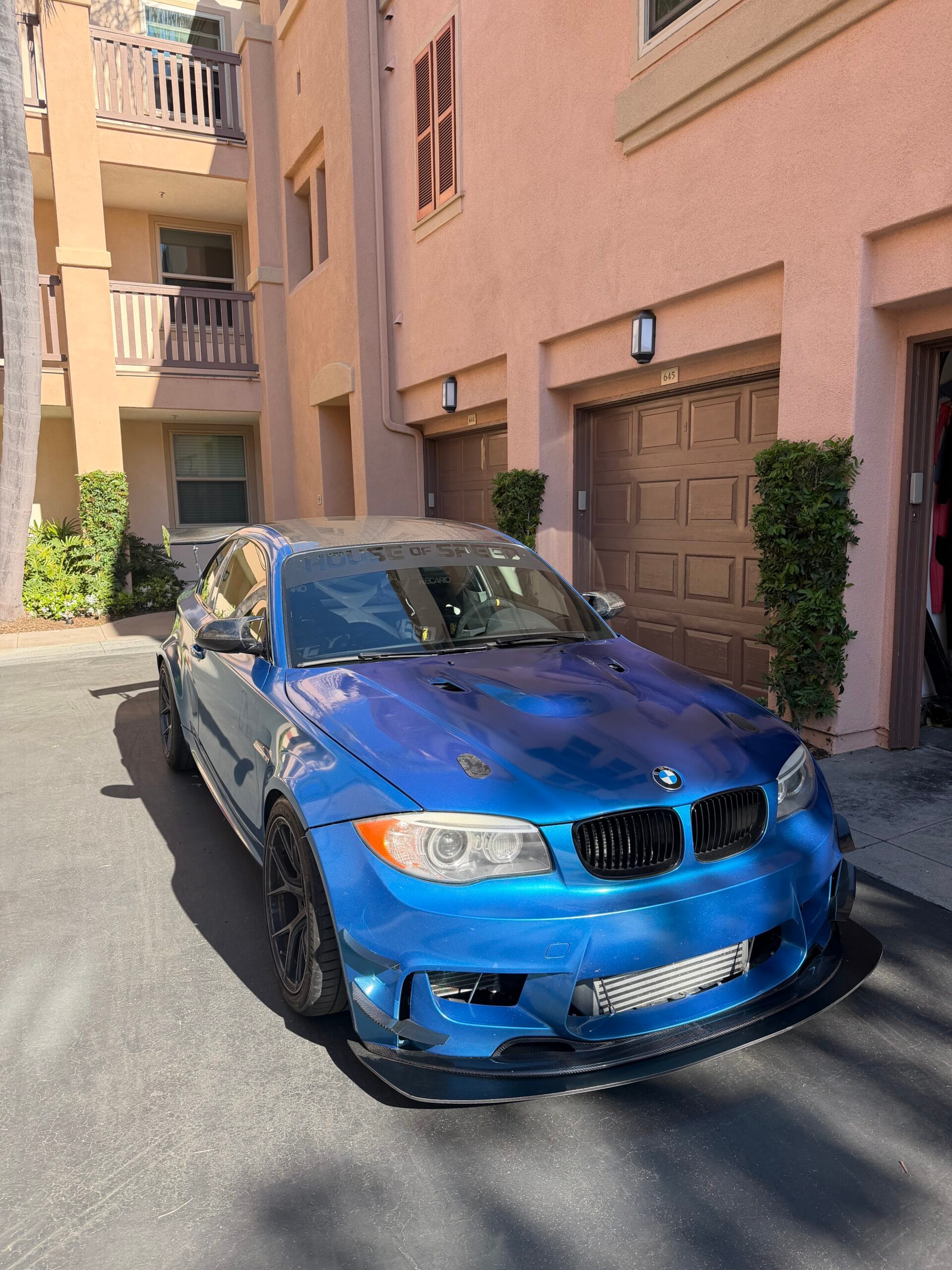

Front three-quarter view of Tanner Buckbee’s blue 2009 BMW 135i E82 1M clone with its front splitter installed.

Products used

Universal Quick Release Splitter Support System

Splitter Support Rods

Customer spotlight

Support the builder who shared this install

If their work gave you an idea, follow their build and help us thank them for contributing it to the community.

Follow the build

Follow @buckbee_motors on Instagram

Customer notes

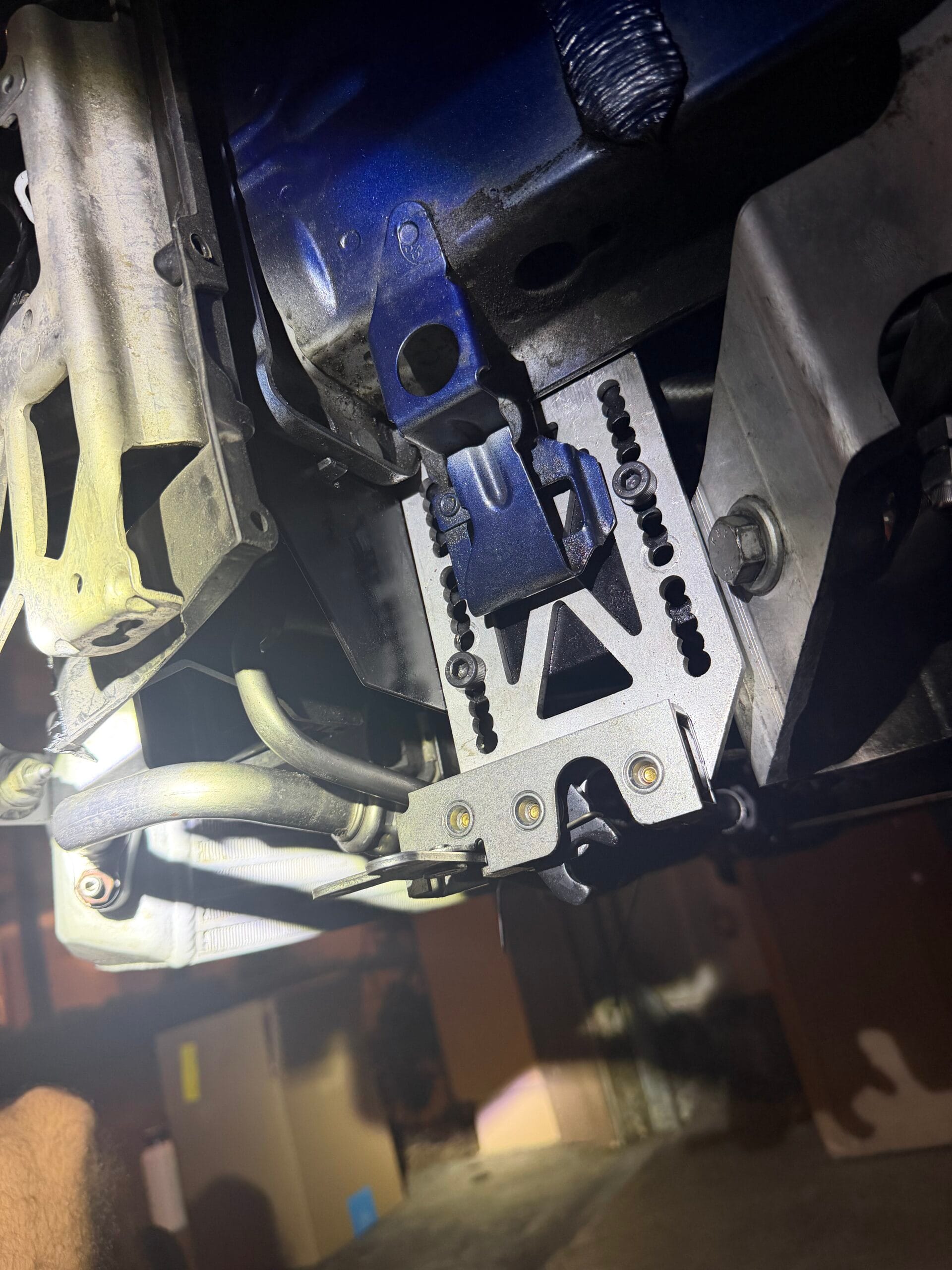

When installing, I used Condor E9X splitter adapters to directly mount to the front frame rails. I then directly mounted the splitter quick release to each of those supports.

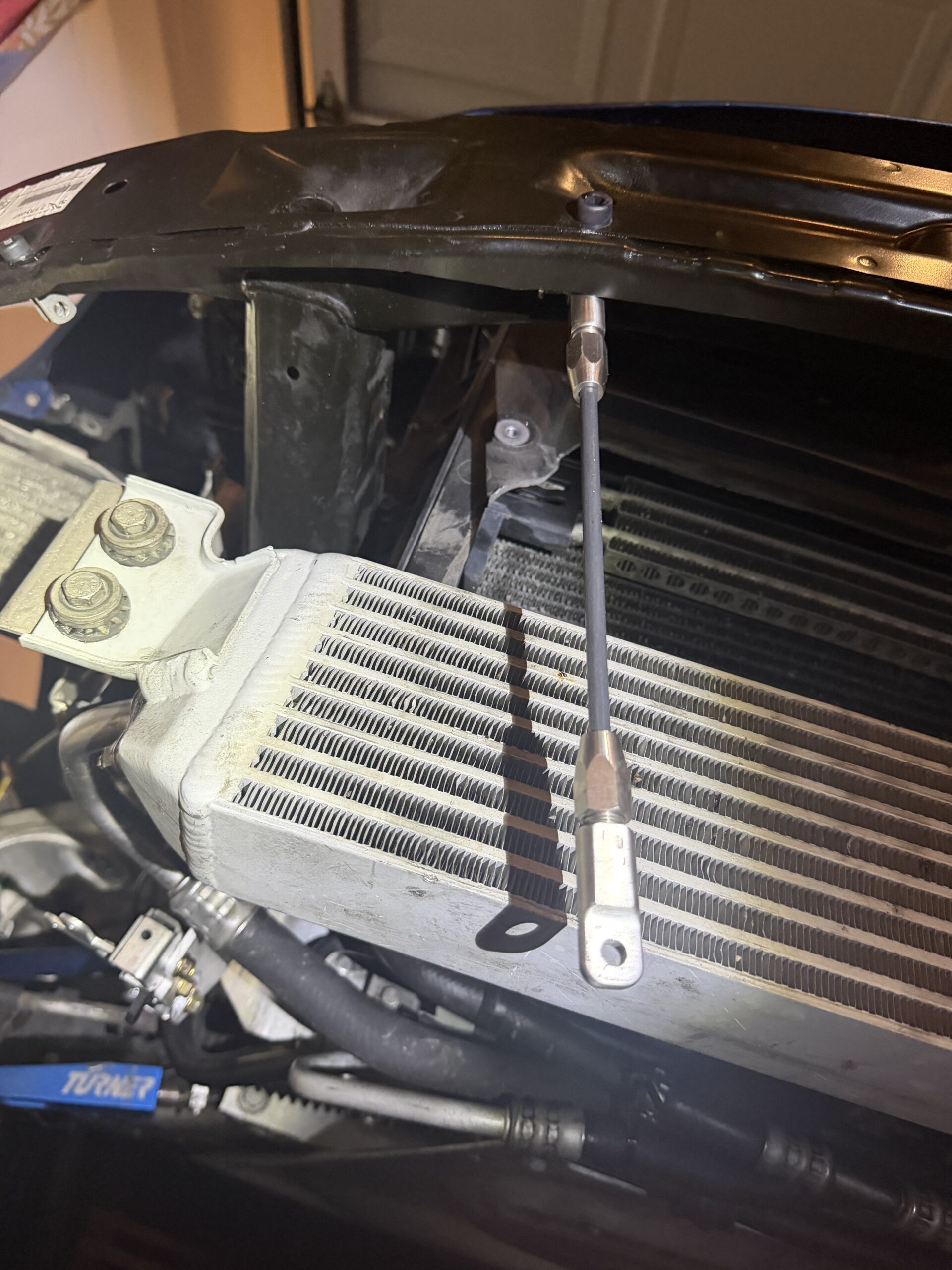

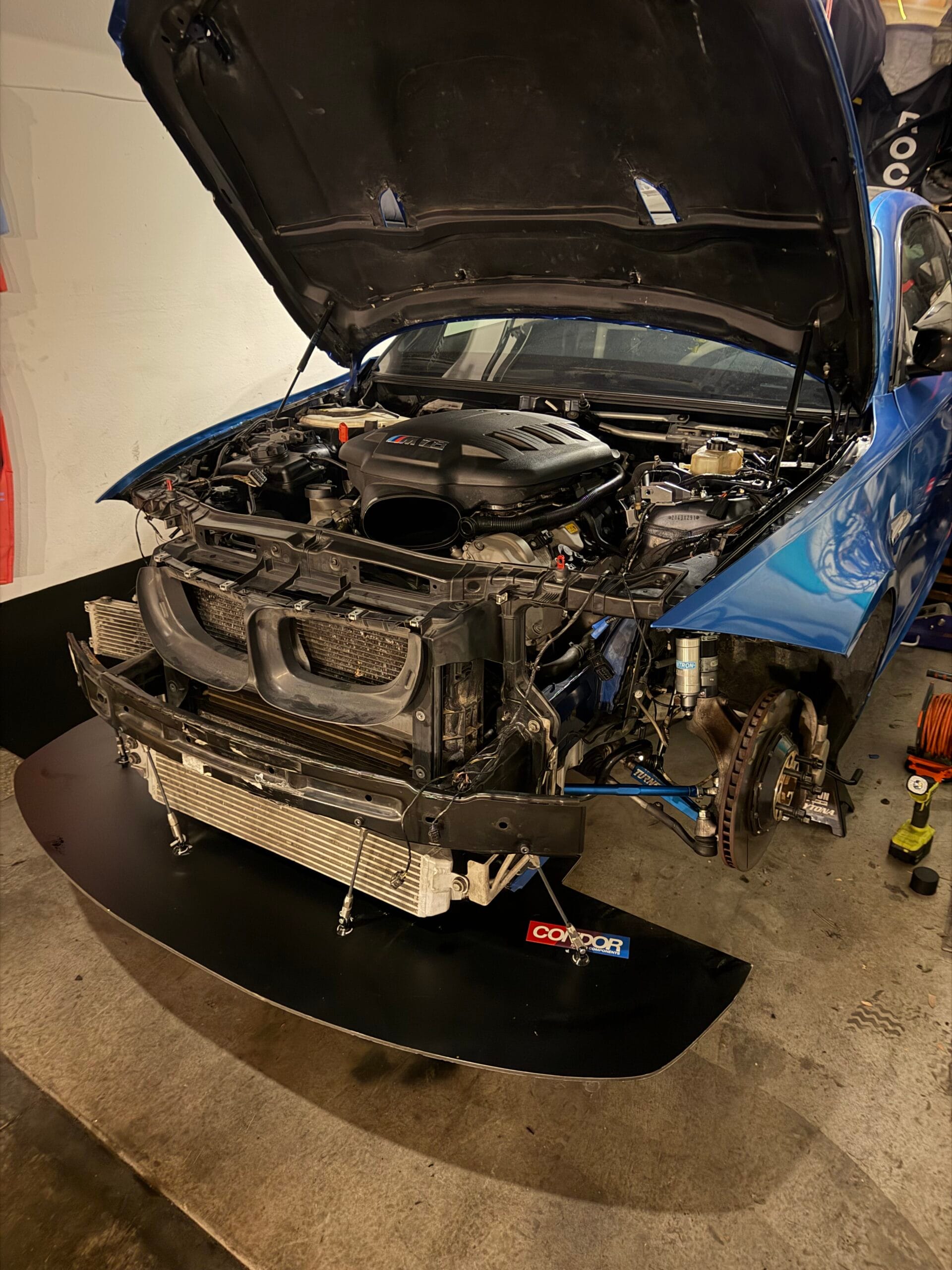

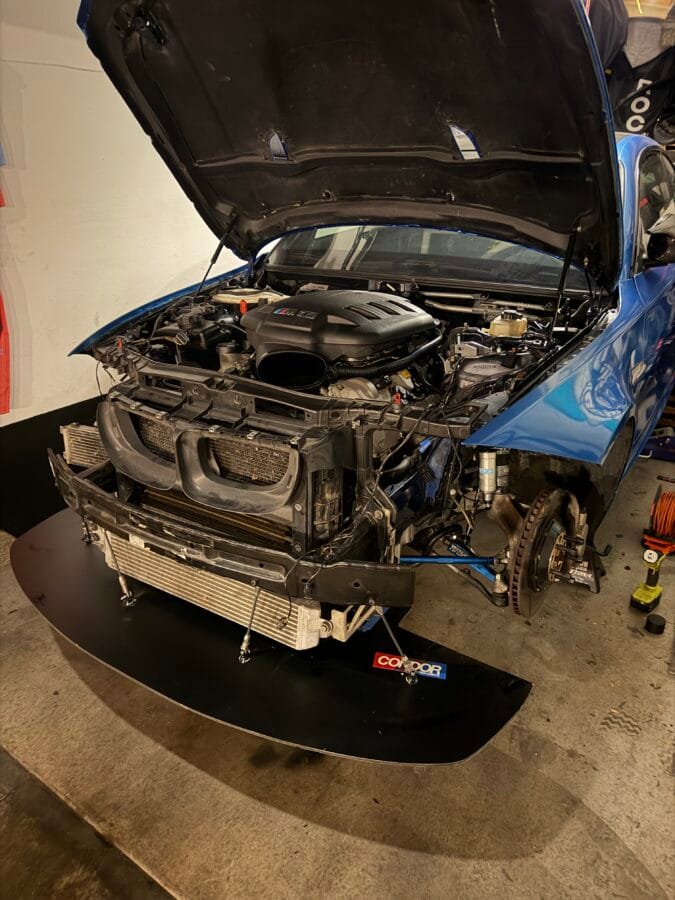

The four splitter rods around the front are bolted through holes I drilled into the front bumper bar (OEM).

The actual splitter itself is from Hard Motorsport and has been incredibly strong so far.

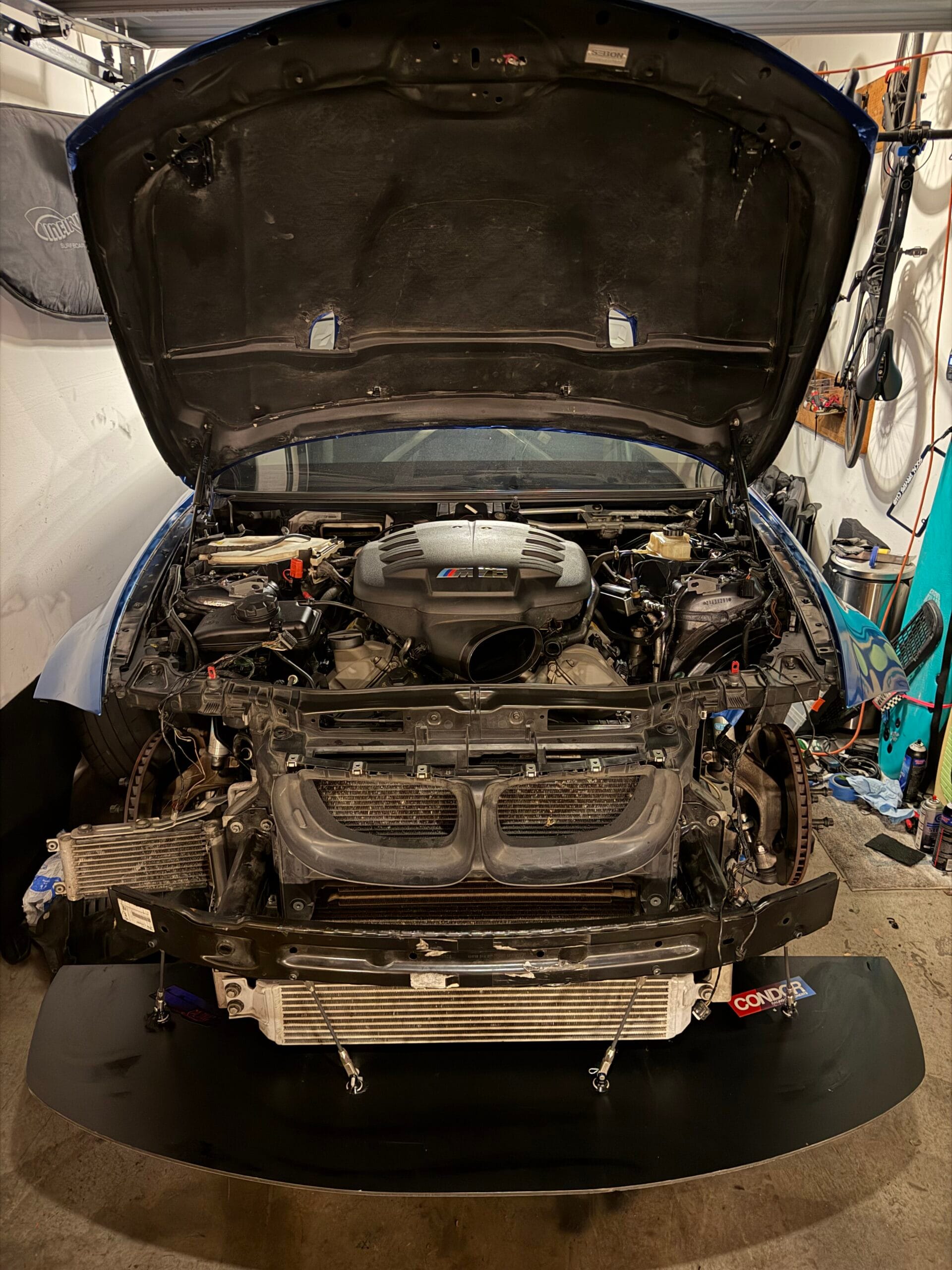

This was installed when the car was N54-powered, and I’m still able to run the same setup with the S65. No OEM undertray is now needed with the larger E92 M3 skid plate. For the N54 cars, it’s best if you cut your OEM plastic skid tray.

I’m using components from a donor M3, including the subframe. This is the same mounting layout used on an E90/E92 M3 or 335i, so M3 owners can use the same parts.
