S14 Custom Splitter & Diffuser Inspiration: 1995 Nissan 240SX

← All customer installs

Nissan · 240SX · 1995-1998 S14

What this install demonstrates

The Professional Awesome Racing parts used were splitter support rods and splitter diffusers. A third-party quick-release latch system is shown in the photos and is not a Professional Awesome Racing…

Products used

Splitter Support Rods – Pair

Splitter Diffusers – Pair

Customer spotlight

Support the builder who shared this install

If their work gave you an idea, follow their build and help us thank them for contributing it to the community.

Follow the build

Follow on Instagram

Customer notes

The Professional Awesome Racing parts used were splitter support rods and splitter diffusers. A third-party quick-release latch system is shown in the photos and is not a Professional Awesome Racing product.

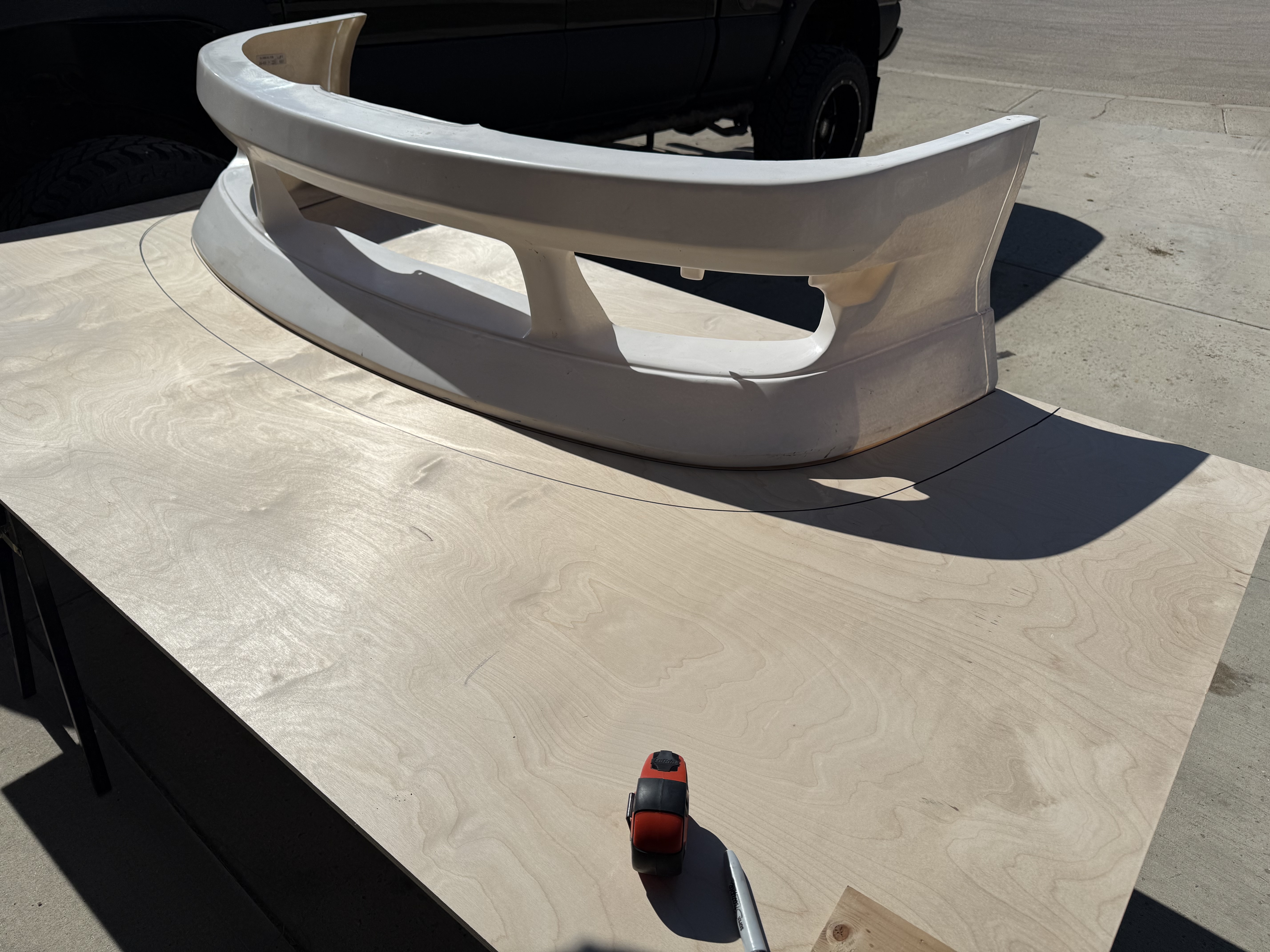

For the splitter, the customer clamped the bumper to a sheet of 1/2-inch birch plywood, then used a 4-inch piece of 2×4 with a felt marker to trace the cut line. The splitter was cut with a jigsaw, and the bottom edge was rounded with a router.

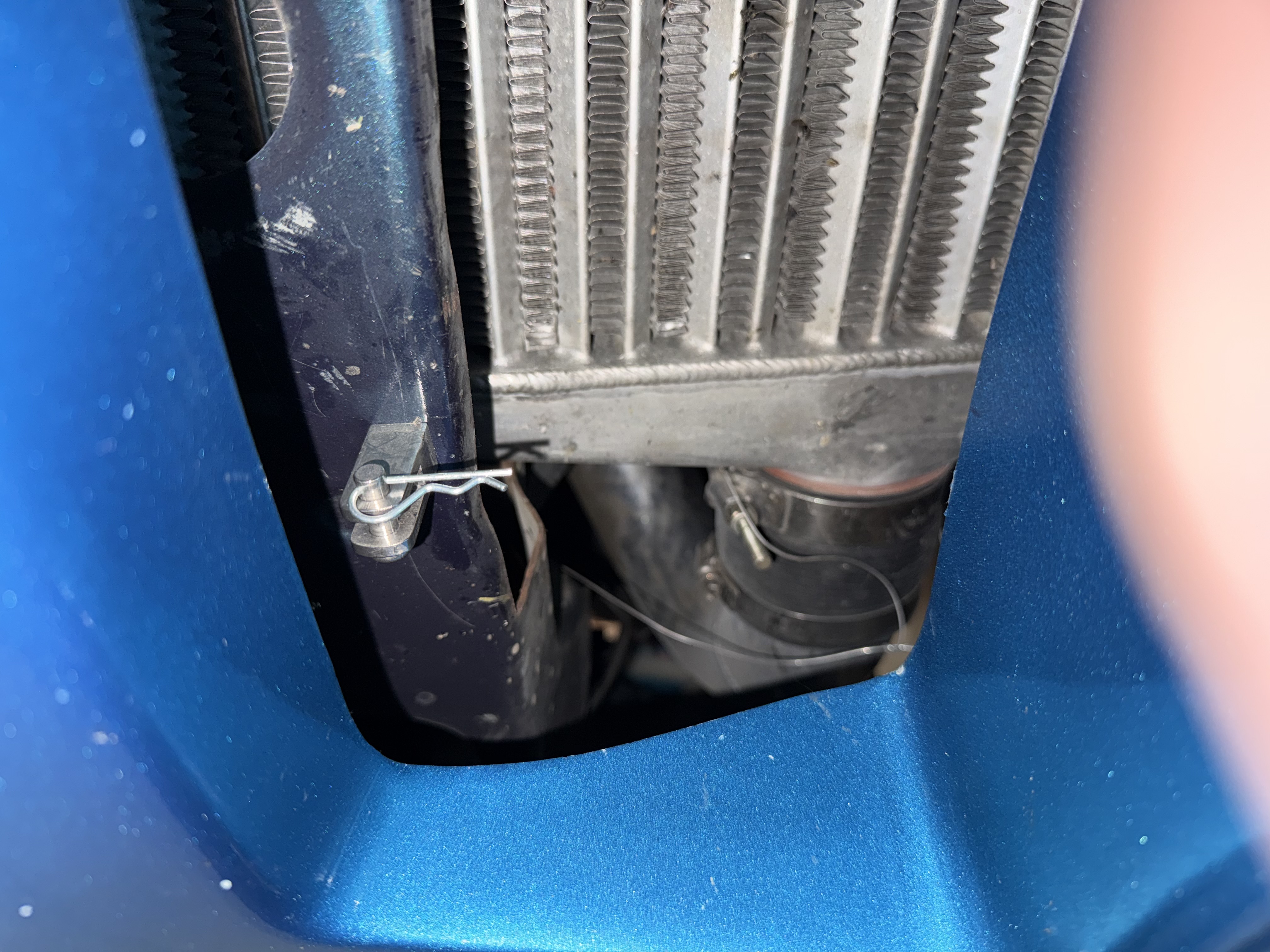

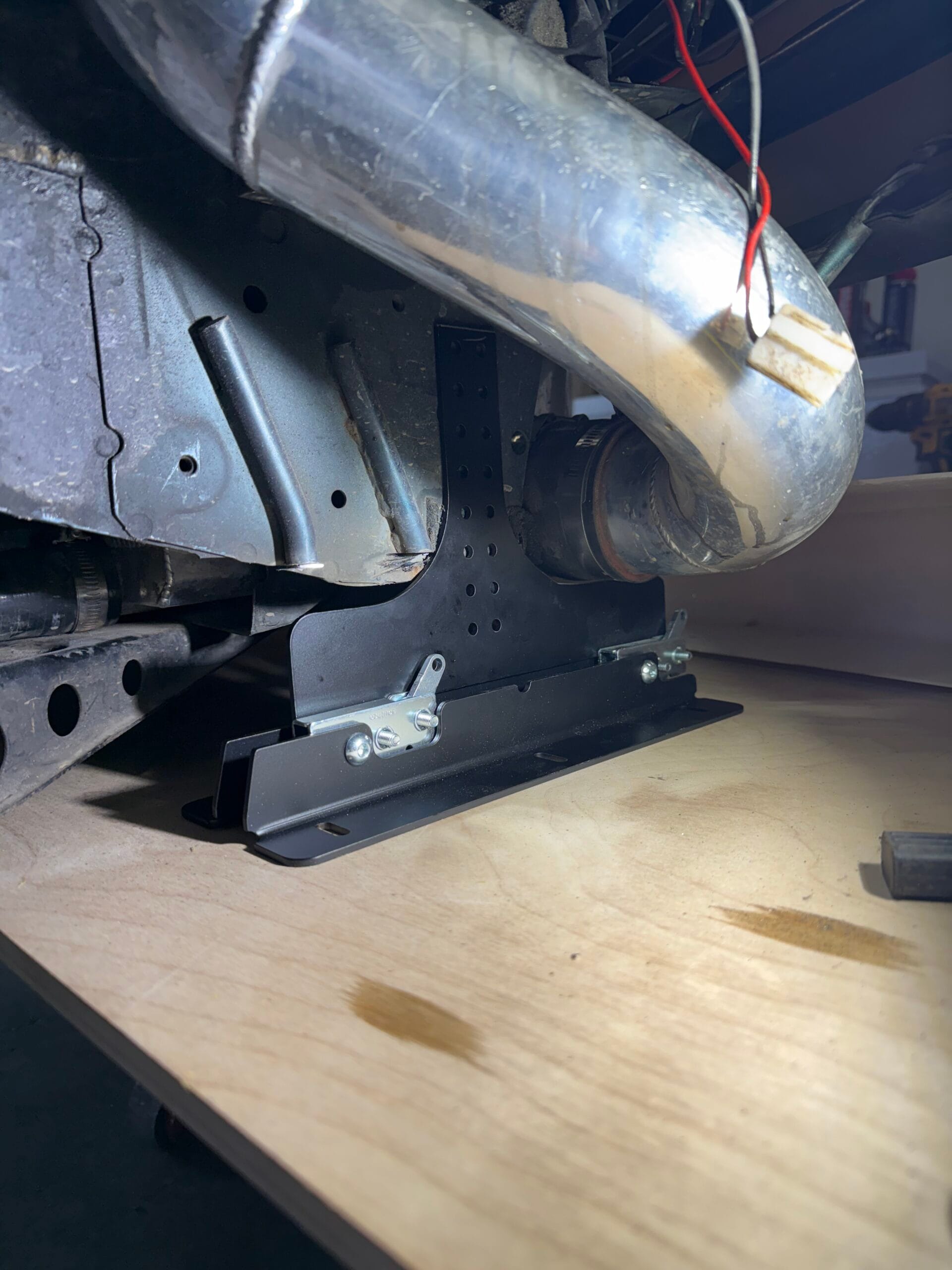

A jack and jack stands were used to hold the splitter against the bumper while determining mount height. The factory tow hooks were removed, and the splitter mounts were installed to the front of the frame. The splitter support rods were mounted directly to the factory crash bar. Overall, the customer noted that it was a trouble-free install on the S14, with little in the way.
