2000 Chevrolet Corvette C5

← All customer installs

Chevrolet · Corvette · 1997-2004 C5

What this install demonstrates

See how Justin mounted a homemade carbon splitter on his 2000 Chevrolet Corvette C5 using fabricated chassis brackets, support rods, and a quick-release system.

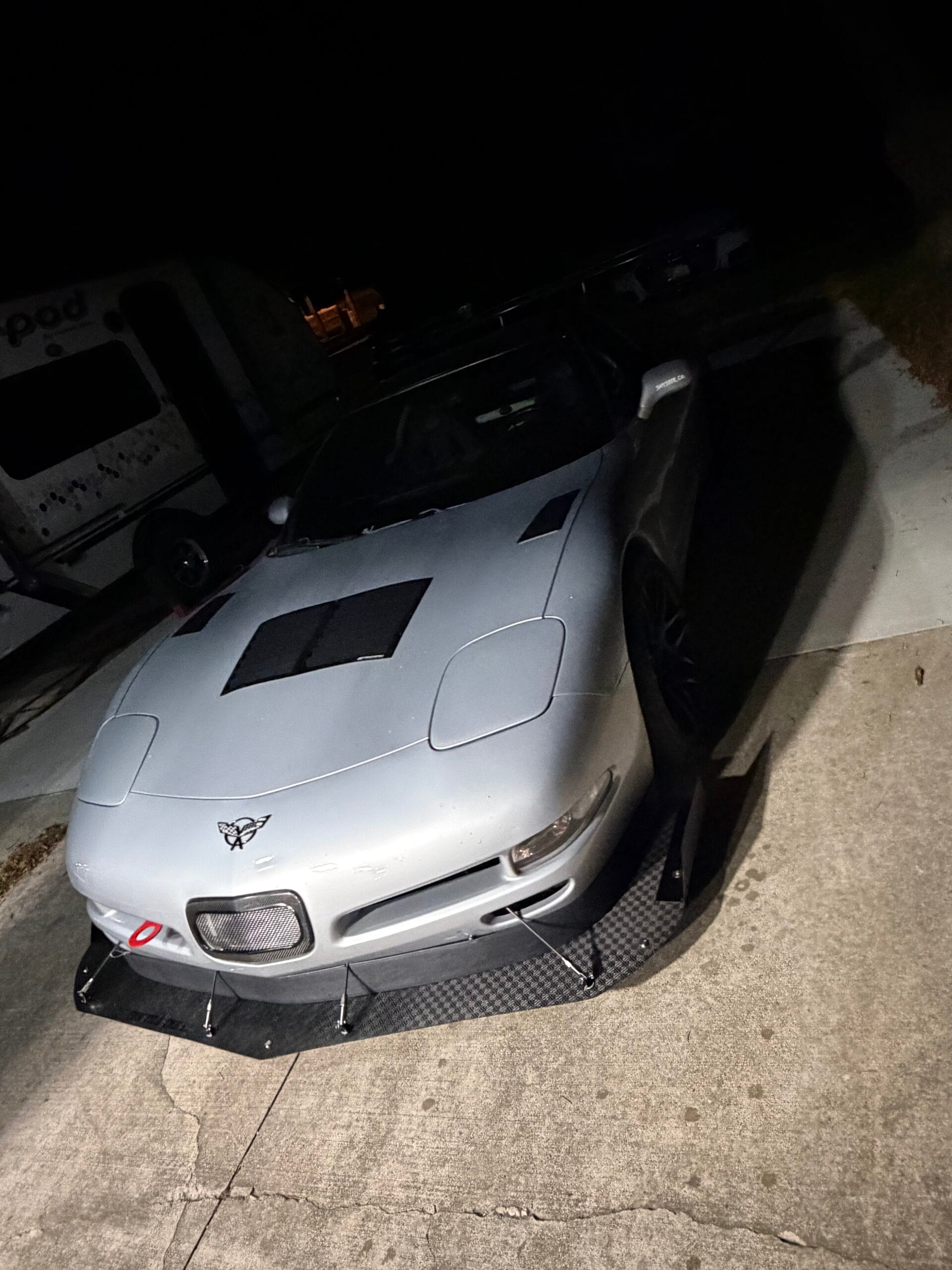

Three-quarter view of Justin Crews’ silver 2000 Chevrolet Corvette C5 with its homemade carbon front splitter installed

Products used

Professional Awesome Splitter Support Rods – PairSplitter Support RodsProfessional Awesome Universal Quick Release Splitter Support SystemUniversal Quick Release Splitter Support System

Customer spotlight

Support the builder who shared this install

If their work gave you an idea, follow their build and help us thank them for contributing it to the community.

Follow the build

Follow on Facebook Follow @jcrews.lifestyle on Instagram

Customer Notes:

The carbon front splitter was homemade. For the splitter rods, we drilled holes through the carbon for the clevises, then drilled into the front crash beam and mounted them in the pictured locations for chassis support. We wanted the splitter to be as rigid as possible, so we fabricated and mounted our own steel brackets off the front lower “sled” brackets where the horn and fog lights attach. We removed the horn and fog-light hardware for room, airflow, and weight reduction. Choosing the right locations for the quick-release attachments took the most time, but we’re very happy with how they mounted in the end.

Gallery:

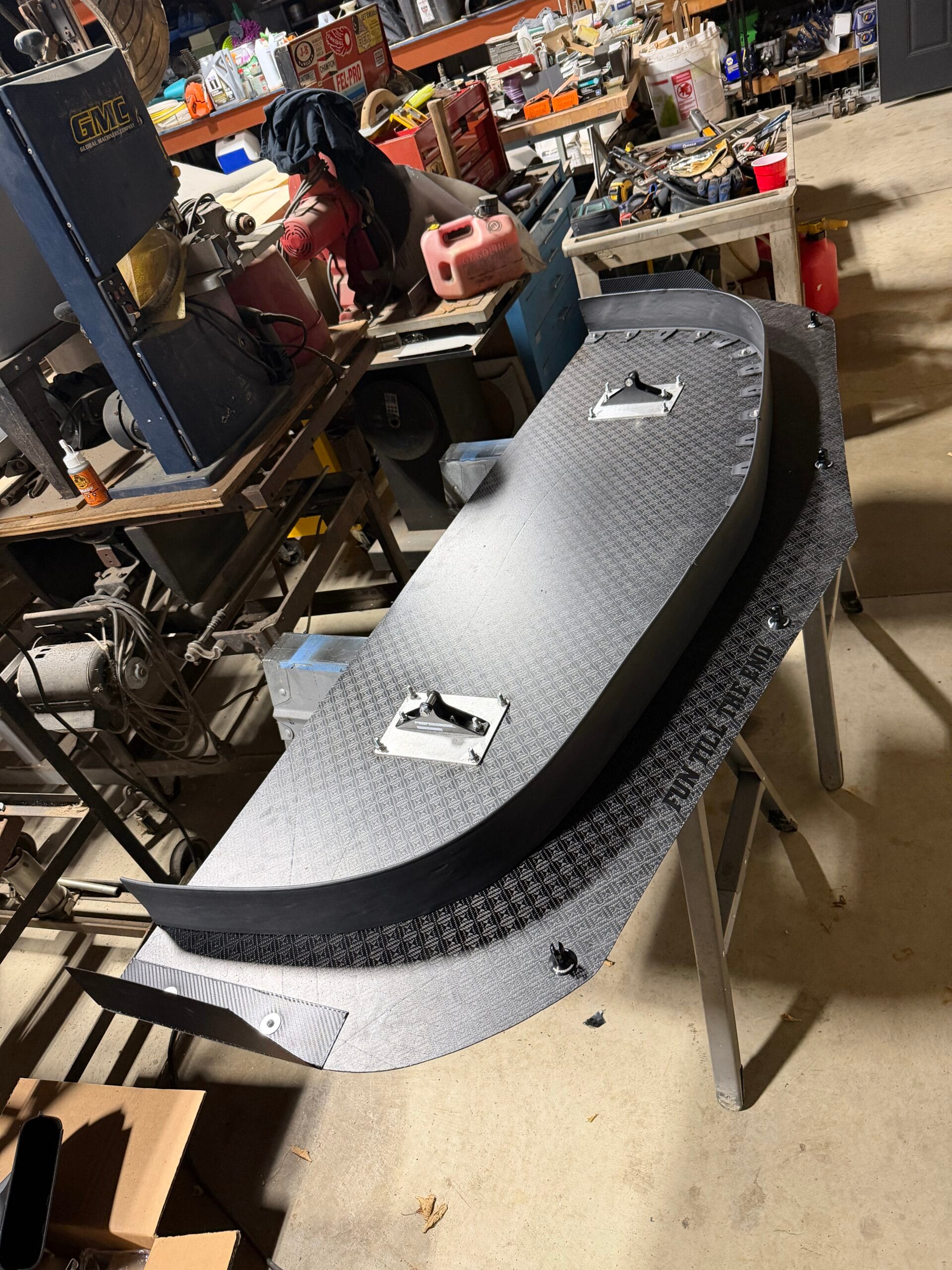

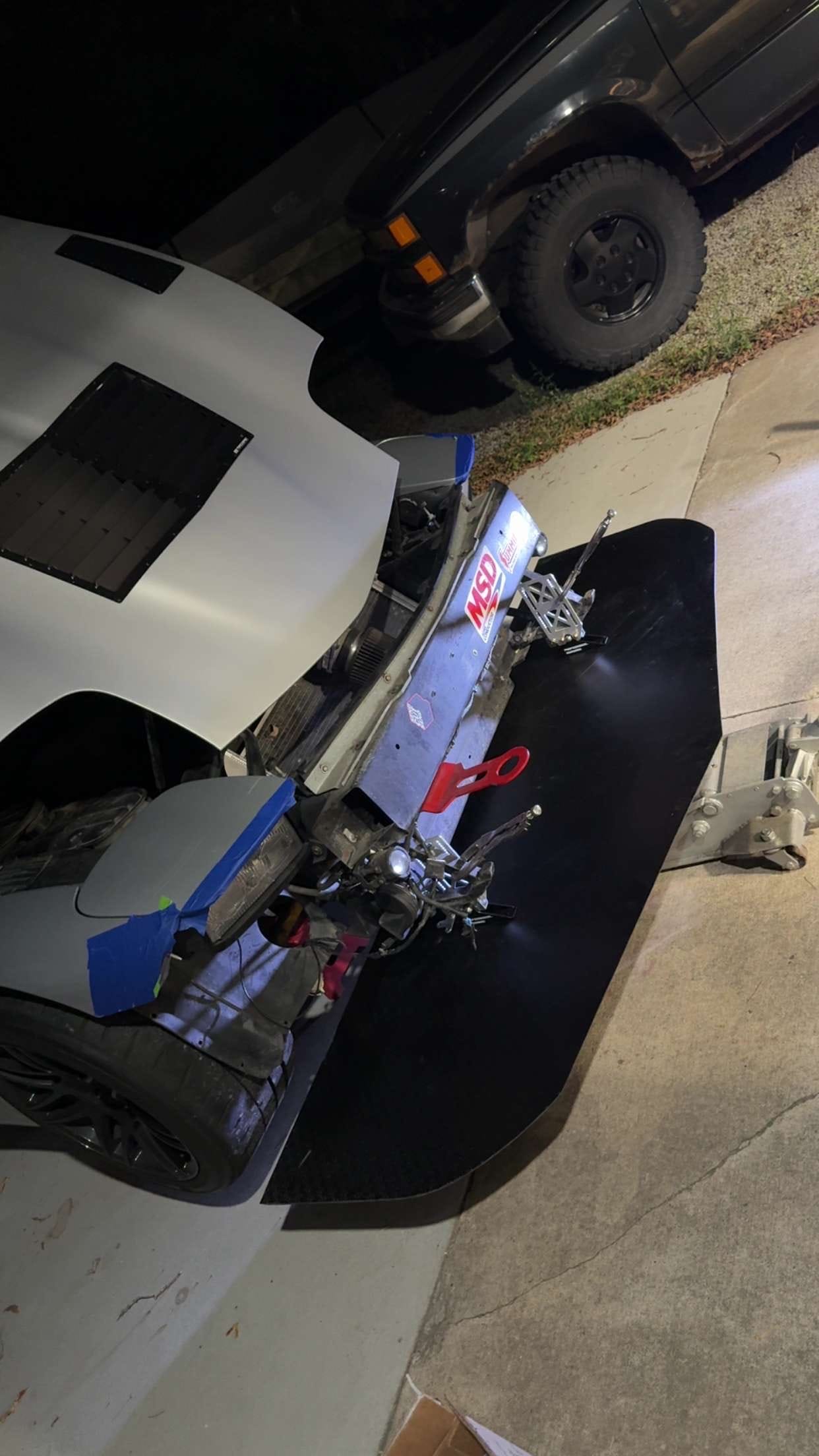

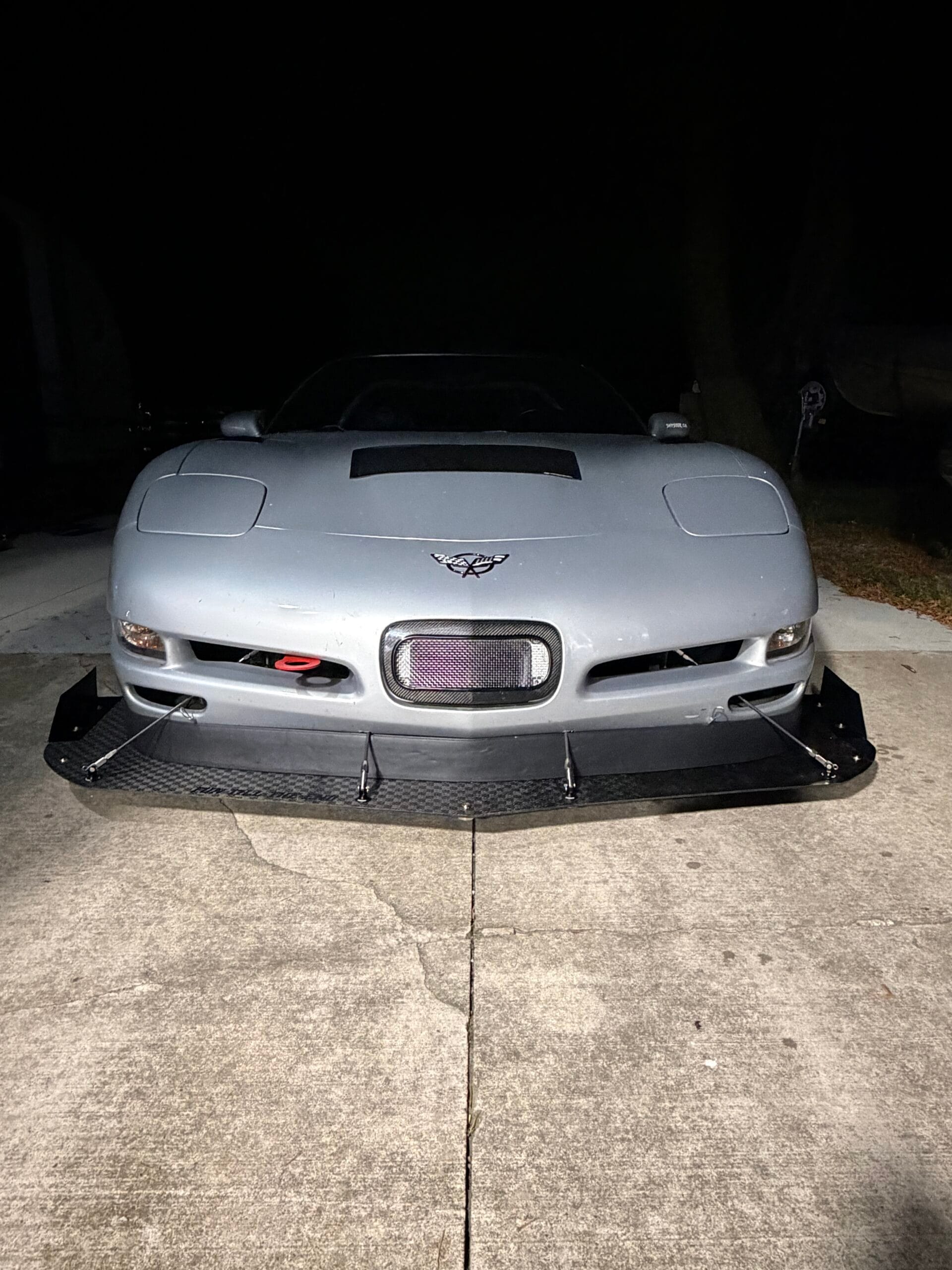

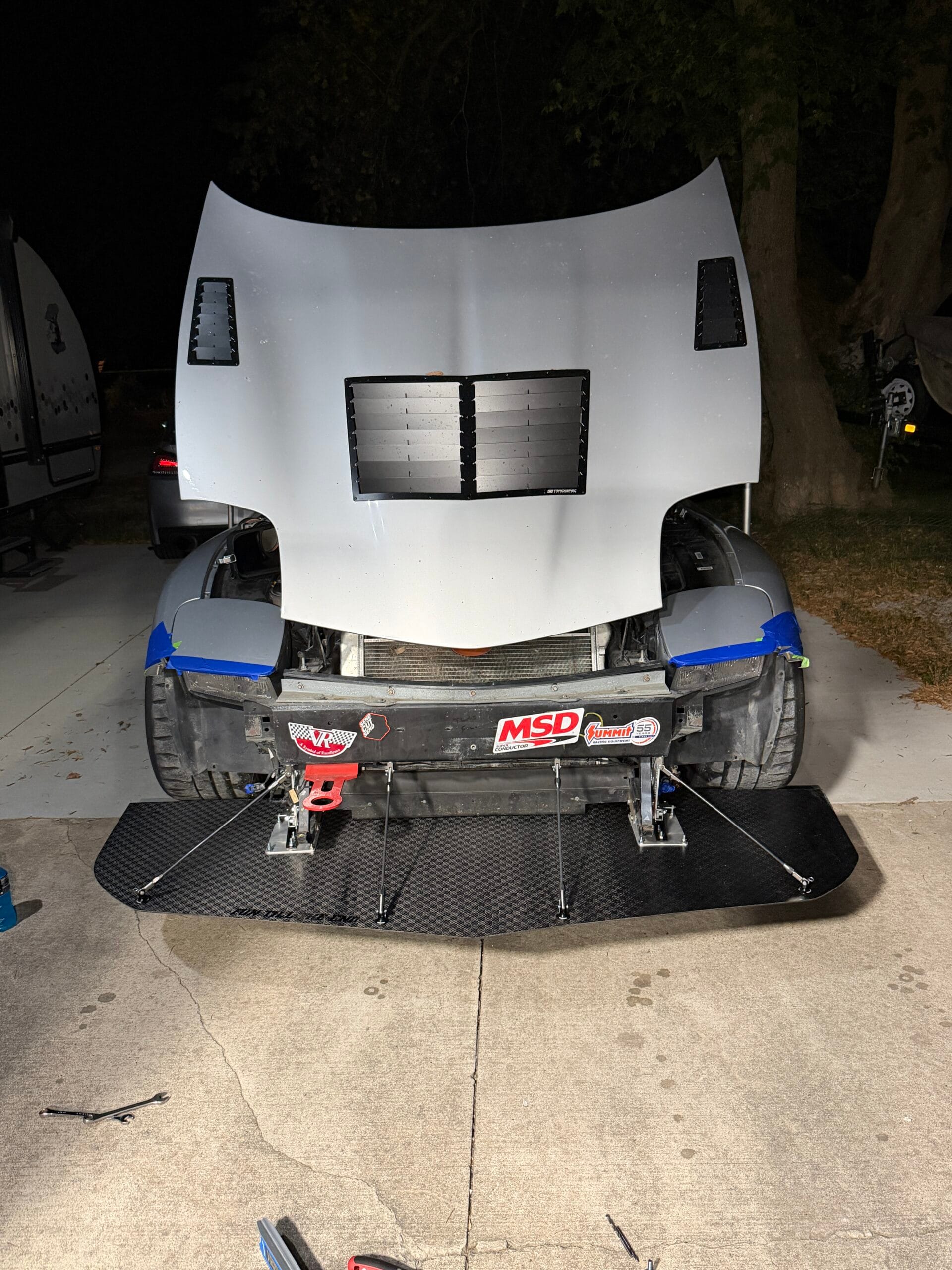

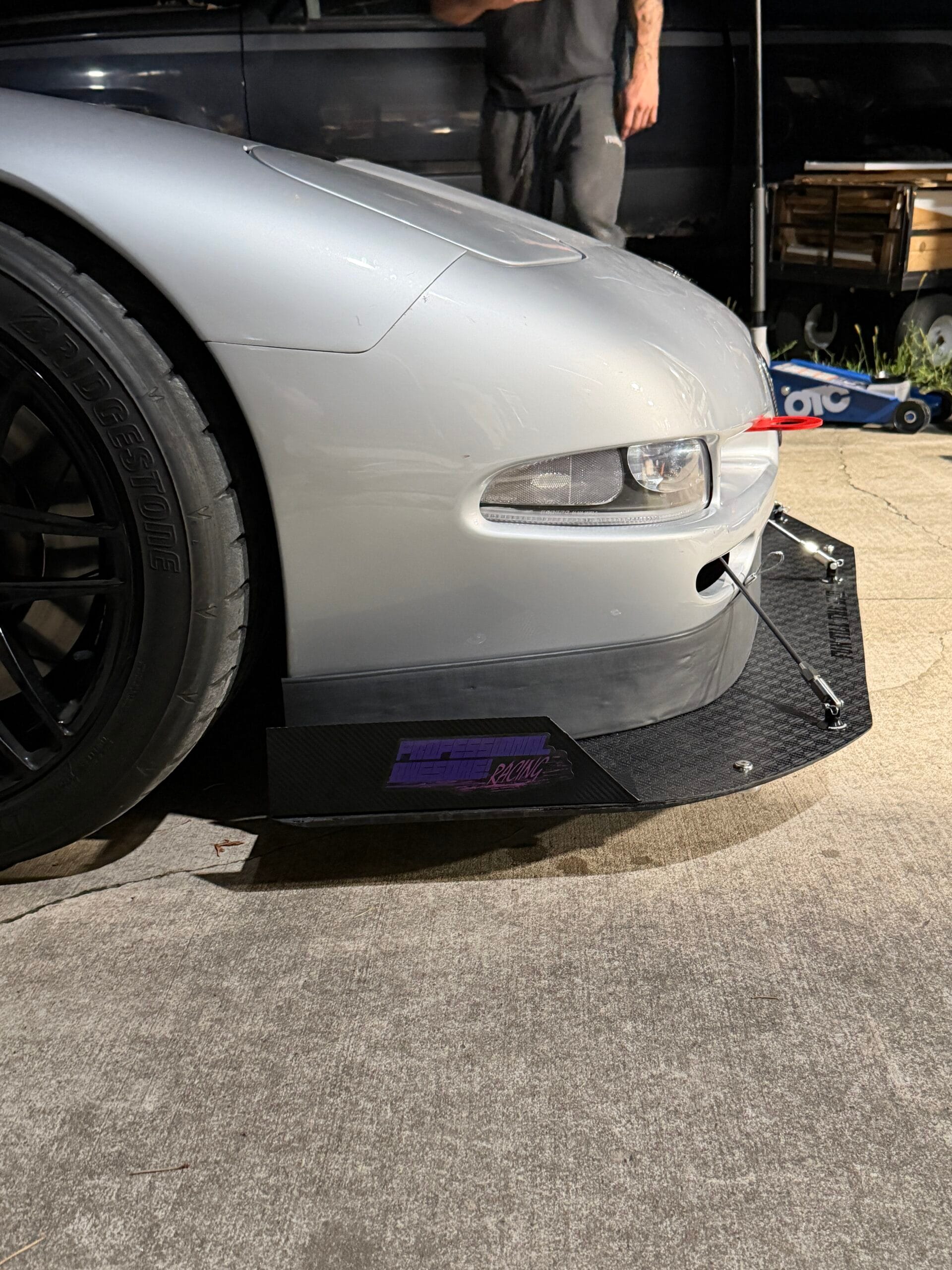

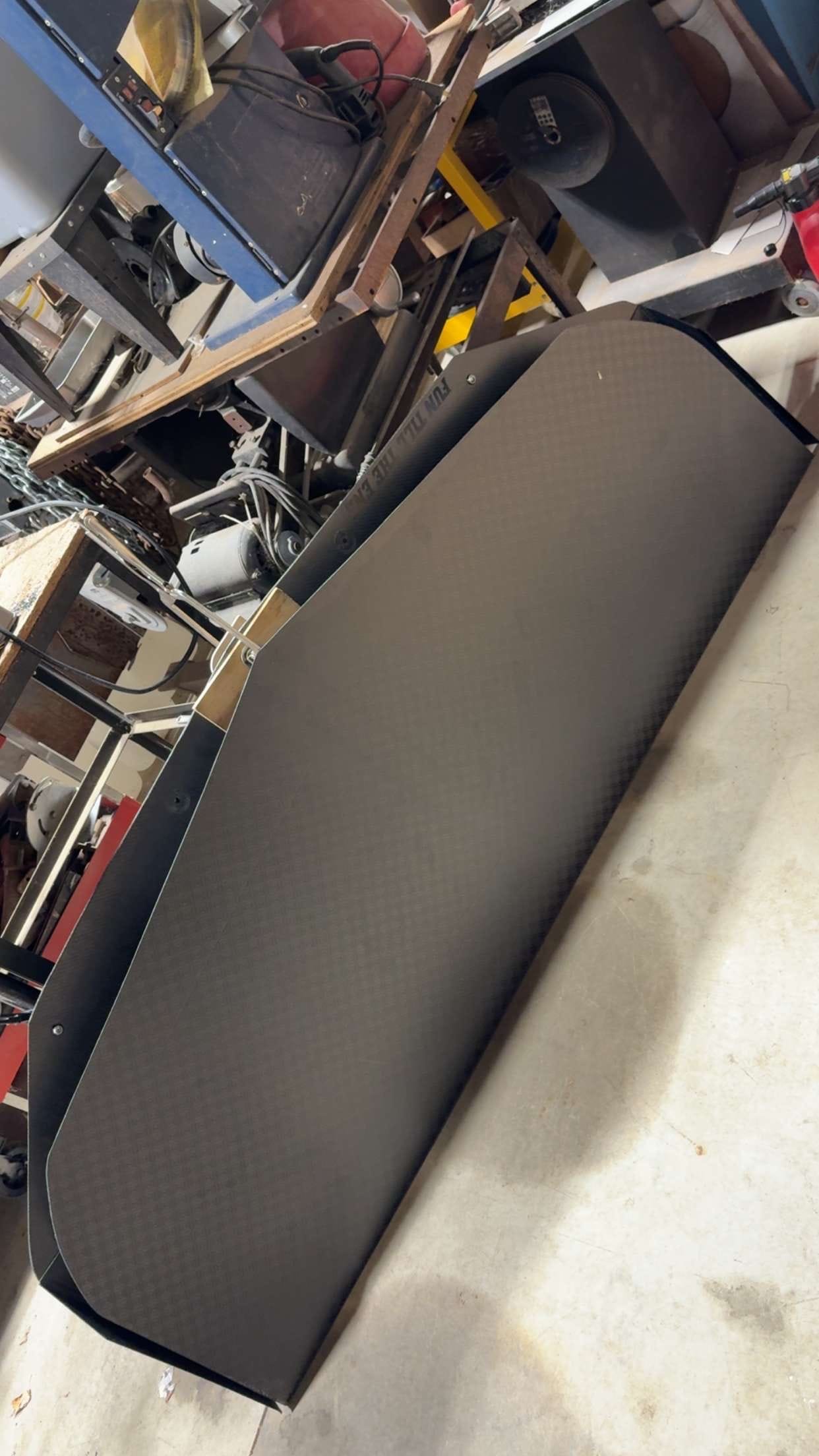

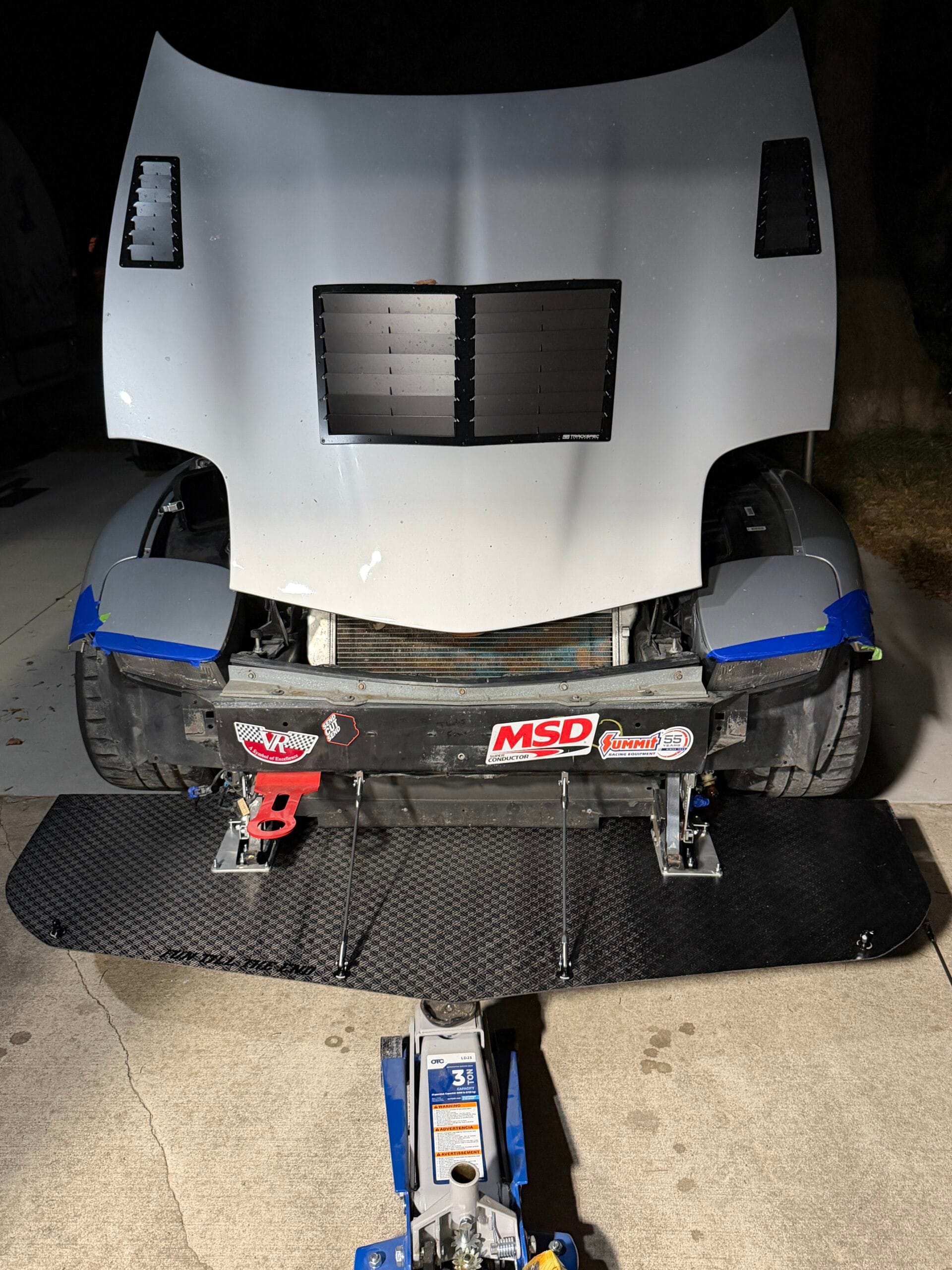

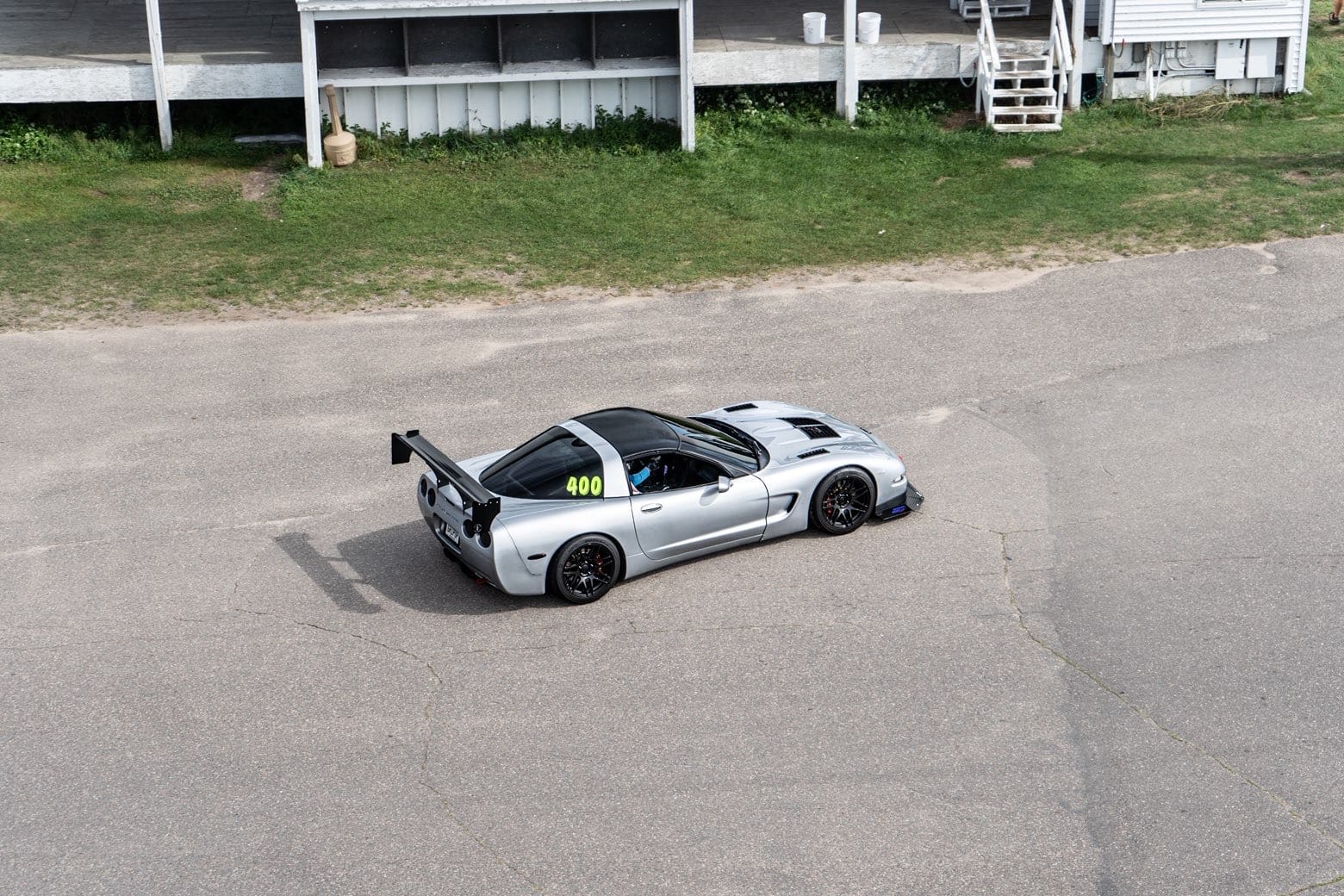

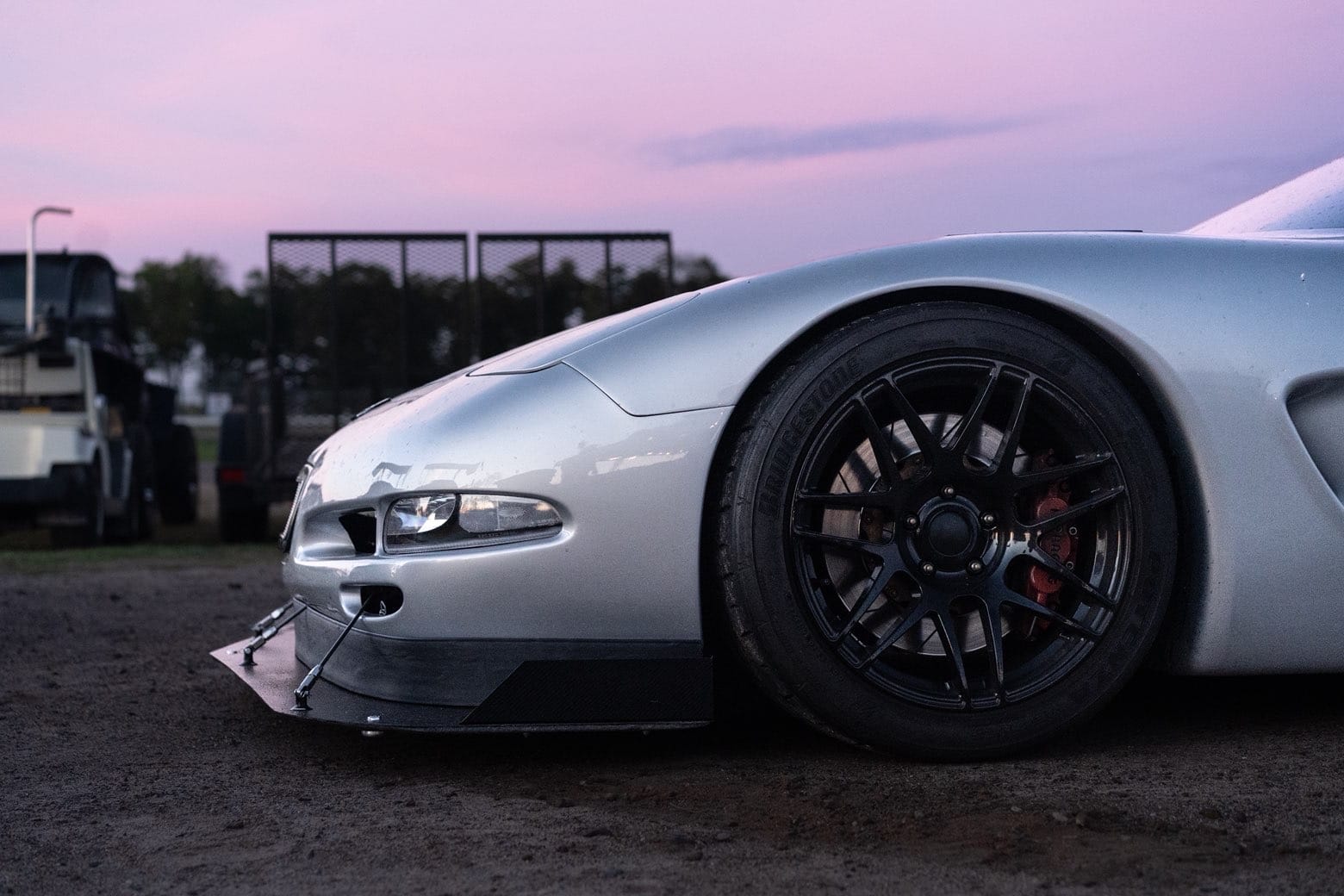

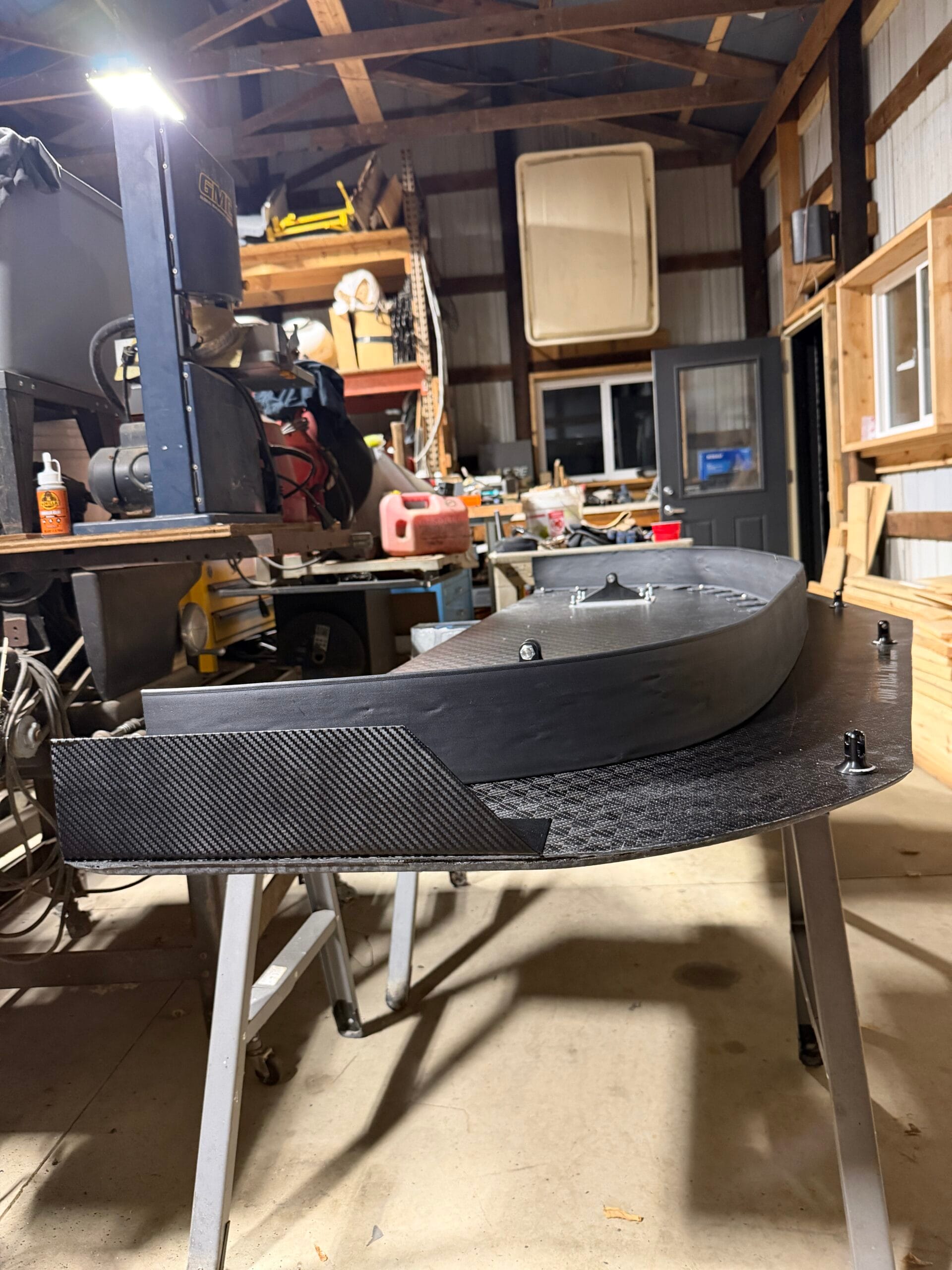

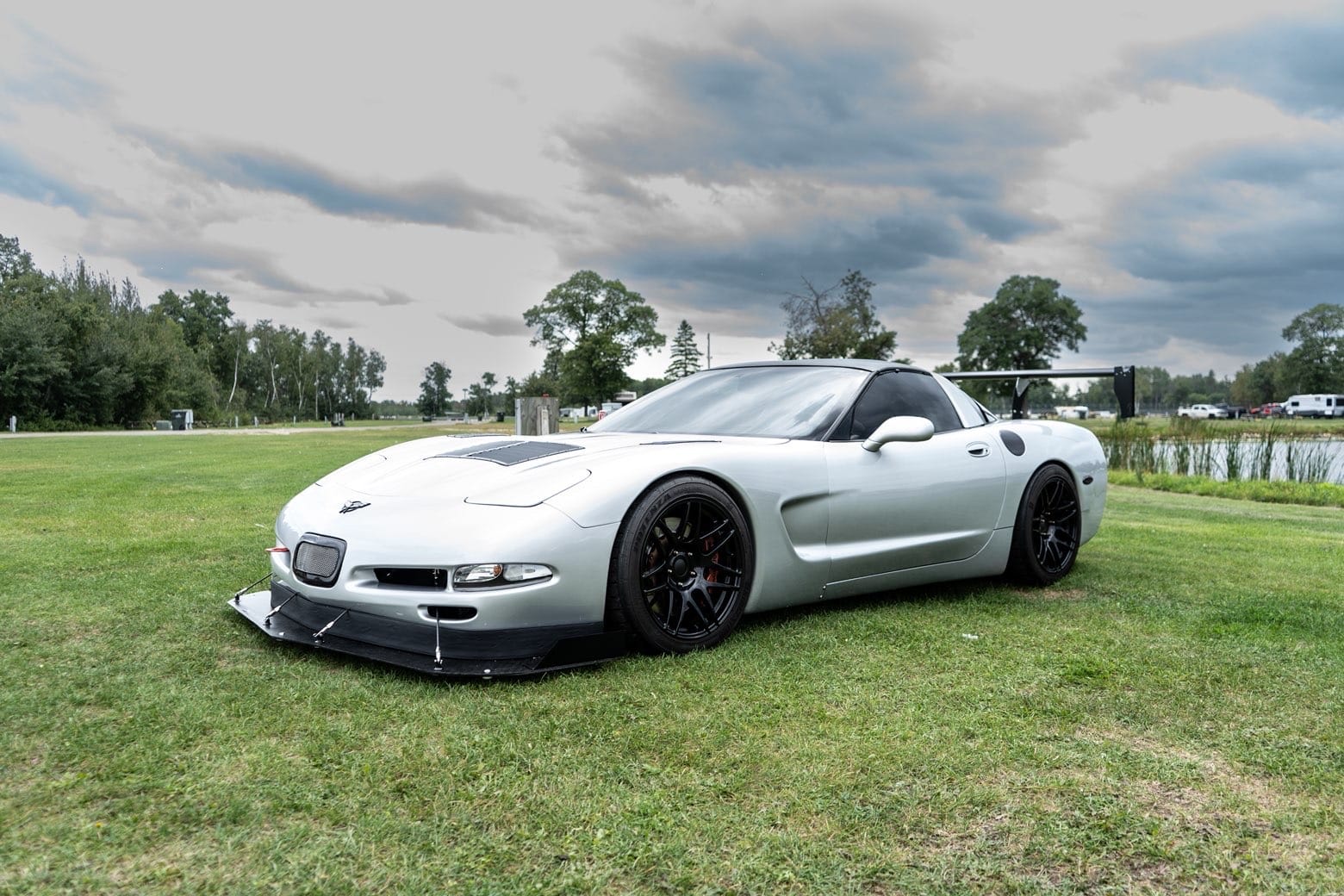

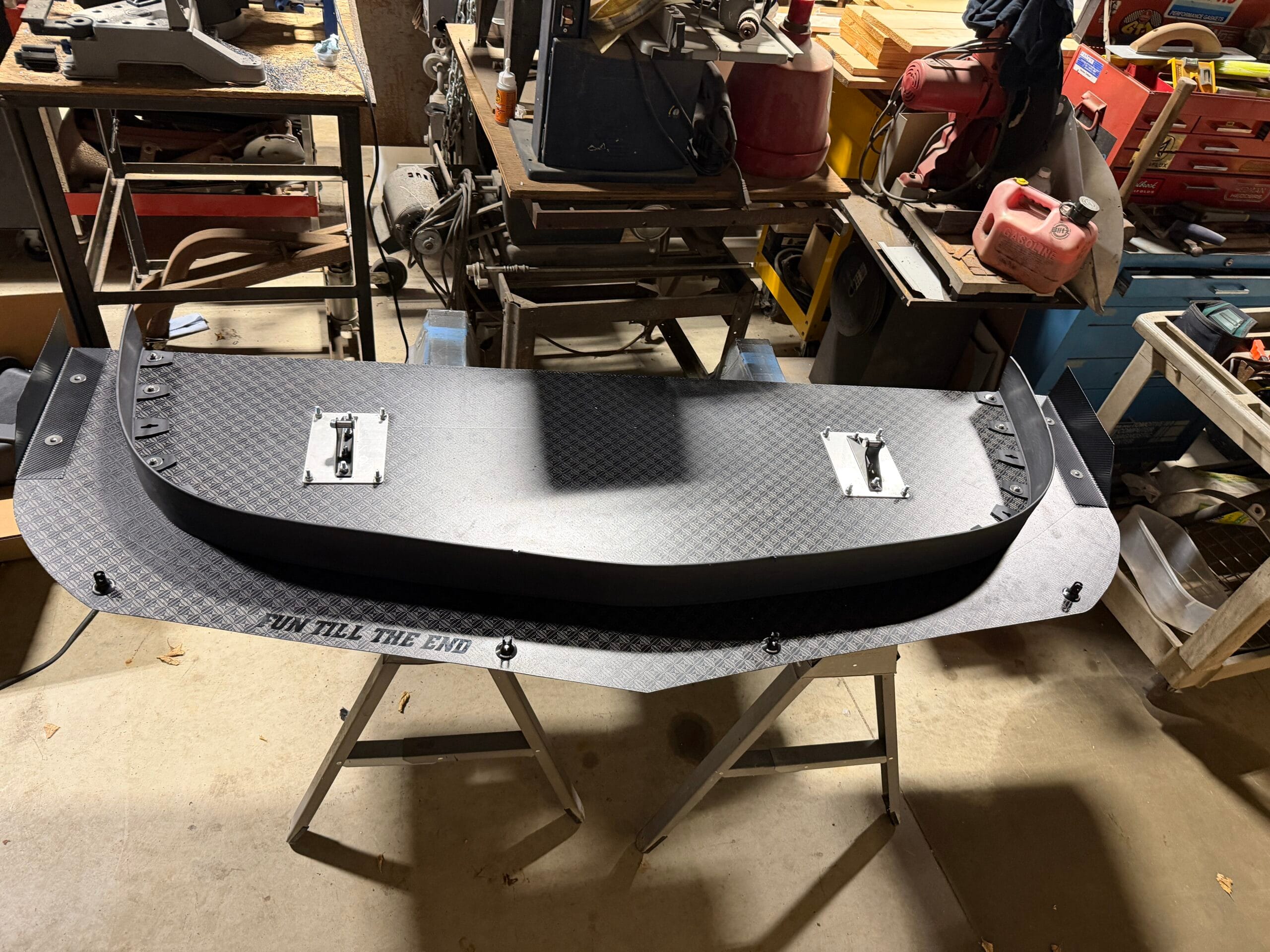

Three-quarter view of Justin Crews’ silver 2000 Chevrolet Corvette C5 with its homemade carbon front splitter installedLow side profile of Justin Crews’ silver C5 Corvette showing the carbon splitter, quick-release mounts, and support rodHigh-angle view of Justin Crews’ track-prepared C5 Corvette with a carbon splitter and rear wingFront view of a silver 2000 Chevrolet Corvette C5 with a homemade carbon splitter and Professional Awesome support rodsFront three-quarter view of a silver 2000 Chevrolet Corvette C5 with its carbon splitter and support rods installedJustin Crews seated in front of his bumper-off 2000 Chevrolet Corvette C5 during the splitter installationSide mounting detail of the carbon front splitter and support rod on Justin Crews’ 2000 Chevrolet Corvette C5Bumper-off overhead view of a C5 Corvette showing the fabricated splitter brackets and detached carbon splitterBumper-off overhead view of the C5 Corvette quick-release splitter and front chassis mounting structureHomemade carbon splitter test-fitted beneath the exposed front structure of a 2000 Chevrolet Corvette C5Top view of a homemade carbon Corvette C5 splitter with rectangular openings for the quick-release mountsFront-edge view of the curved homemade carbon splitter for a 2000 Chevrolet Corvette C5Finished homemade carbon splitter with quick-release receiver openings and support-rod mounting pointsHomemade carbon front splitter panel for Justin Crews’ 2000 Chevrolet Corvette C5 before mounting hardware was installed
